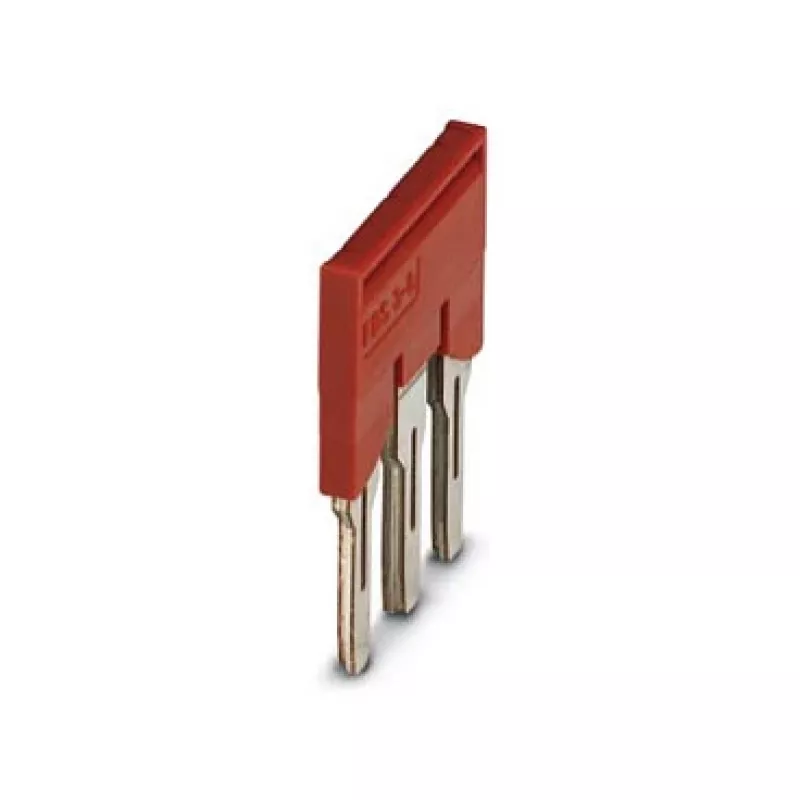

Phoenix Contact FBS 3-8 Ponte de ligação, 3 polos, passo 8,2 mm, vermelho

Plug-in bridge for ST and ST-COMBI terminal blocks with 8.2 mm pitch, enabling reliable cross-connection of three positions. Rated for 500 V and 24 A, this red bridge simplifies potential distribution in control cabinets.

Advantages

The FBS 3-8 offers tool-free installation, simply plugging into the terminal block's bridge shaft. Its compact design saves space while providing a secure, vibration-resistant connection. The polyamide housing meets UL 94 V0 flammability requirements, enhancing safety.

Suitable for

• Cross-connecting three adjacent terminal blocks in ST and ST-COMBI series
• Potential distribution in industrial control systems
• Applications requiring high current capacity up to 24 A
• Use in environments with pollution degree 3 and overvoltage category III

Key specifications

• Number of positions: 3
• Pitch: 8.2 mm
• Rated voltage: 500 V
• Rated current: 24 A
• Material: Polyamide (PA), red
• Operating temperature: -60 °C to 105 °C
• Approvals: VDE, UL, cULus Recognized

Recommendations

For reliable and efficient cross-connections in Phoenix Contact terminal block systems, the FBS 3-8 is an excellent choice. Its plug-in design reduces wiring time and ensures consistent electrical performance.
