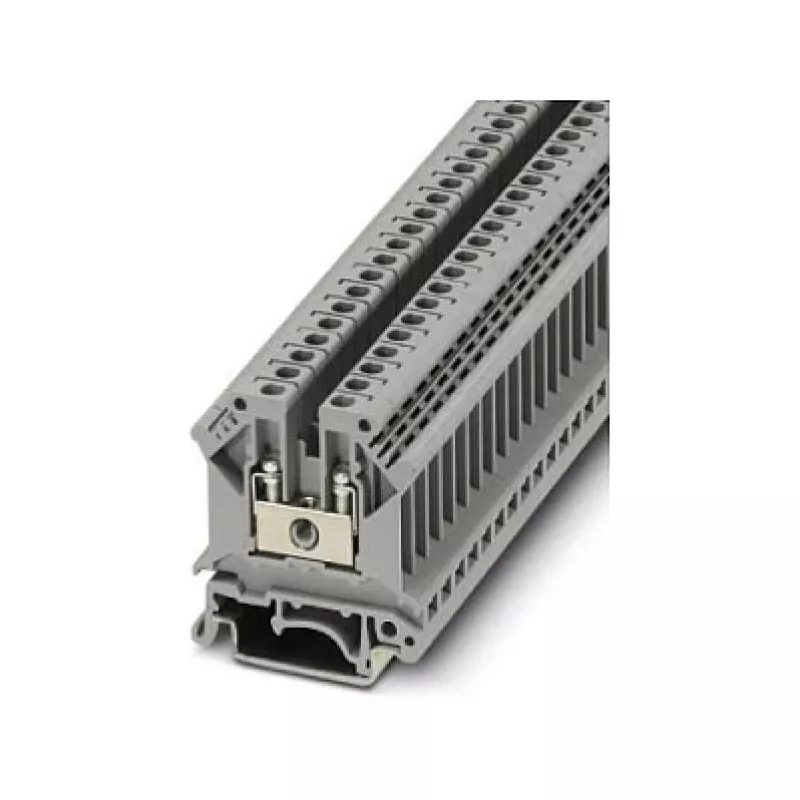

Phoenix Contact UK 5 Borne de passagem, ligação por parafuso, 4 mm², 800 V, 32 A, cinzento, montagem em calha DIN, 2 ligações, 1 potencial, isolamento PA, UL 94 V0

In control cabinets and distribution boxes, reliable wire termination is non-negotiable. The Phoenix Contact UK 5 feed-through terminal block solves the challenge of creating secure, vibration-resistant screw connections for conductors up to 4 mm². Its compact design and DIN rail mounting make it a staple in industrial wiring, building automation, and panel building.

Who is it for

This terminal block is built for electrical engineers, panel builders, and maintenance technicians who need a dependable, space-saving solution for power distribution and signal wiring. It suits applications in machine building, process control, and energy management where IEC-rated components are required.

Main features

• Screw connection technology with M3 thread for durable, gas-tight terminations
• Nominal cross section of 4 mm², supporting solid conductors from 0.2 to 6 mm² and stranded from 0.2 to 4 mm²
• Rated at 800 V and 32 A per IEC, suitable for most low-voltage power circuits
• Single potential with two connection points for straightforward feed-through wiring
• Grey polyamide (PA) housing, halogen-free and flame-retardant to UL 94 V0
• Mounts on standard DIN rails: NS 35/7.5, NS 35/15, and NS 32
• Wide operating temperature range from -60 °C to +105 °C for harsh environments
• Complies with IEC 60947-7-1, UL, CSA, VDE, EAC, and cULus Recognized

Specifications

• Connection technology: Screw connection
• Number of connections: 2
• Number of potentials: 1
• Nominal cross section: 4 mm²
• Conductor cross section solid: 0.2 – 6 mm²
• Conductor cross section stranded: 0.2 – 4 mm²
• AWG wire size: 24 – 10
• Stripping length: 9 mm
• Screw thread: M3
• Tightening torque: 0.6 – 0.8 Nm
• Nominal voltage (IEC): 800 V
• Nominal current (IEC): 32 A
• Pollution degree: 3
• Overvoltage category: III
• Insulating material: PA (Polyamide)
• Flammability rating: UL 94 V0
• Mounting type: DIN rail (NS 35/7.5, NS 35/15, NS 32)
• Operating temperature: -60 °C to +105 °C
• Standards/Approvals: IEC 60947-7-1, UL, CSA, VDE, EAC, cULus Recognized

Tips

Use a torque screwdriver set to 0.6–0.8 Nm to ensure a secure connection without damaging the conductor. For stranded wires, ferrules are recommended to prevent splaying. The terminal block can be grouped with other UK 5 blocks using standard end covers and partition plates for a neat, organized assembly.
