Placa de interface DeLOCK 62670 interna M.2 mSATA

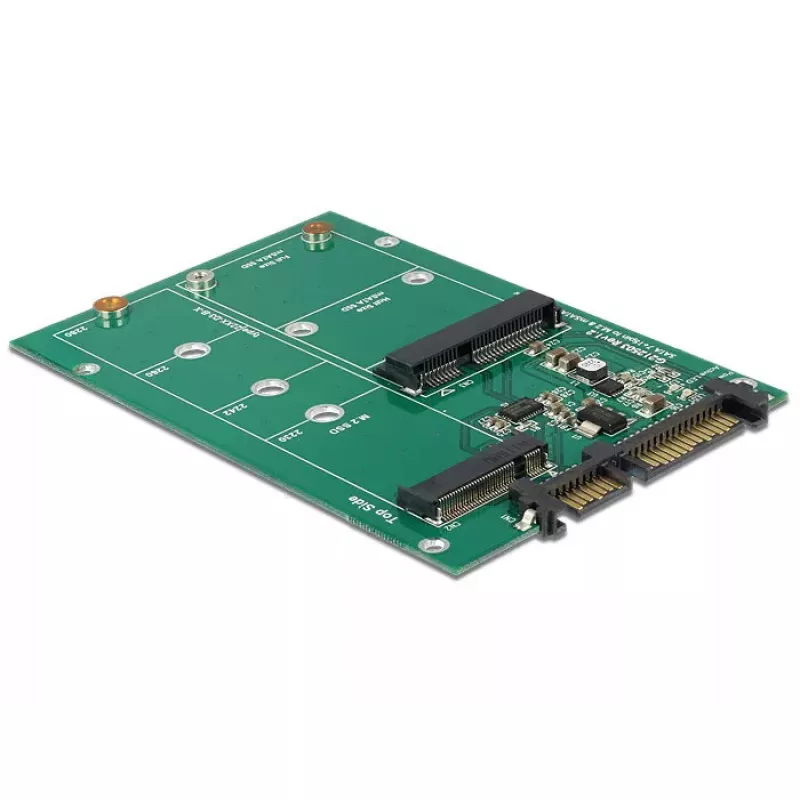

This Delock converter allows installation of an M.2 NGFF SSD (sizes 2280, 2260, 2242 and 2230) or a mSATA module into a system via an internal SATA 22‑pin interface. The card is compact and provides a SATA host interface with up to 6 Gbit/s transfer speed, enabling additional internal storage options without external adapters.

Advantages

The interface card supports both M.2 NGFF and mSATA form factors on a single internal board, simplifying upgrades and replacement of storage devices. With a SATA host interface rated up to 6 Gbit/s and a compact footprint (65.5 mm × 98 mm), it fits into many system configurations while maintaining standard SATA connectivity.

Suitable for

• Installing an M.2 NGFF SSD in 2280, 2260, 2242 or 2230 sizes
• Installing a mSATA module
• Expanding or upgrading internal storage in desktop PCs or compact systems with an available SATA 22‑pin connector

Key specifications

• Brand: DELOCK
• Model / MPN: 62670
• Host interface: SATA (22‑pin internal)
• Transfer rate: up to 6 Gbit/s
• Output interfaces: M.2 (NGFF) and mSATA
• Supported M.2 sizes: 2280, 2260, 2242, 2230
• Internal: Yes
• Dimensions: 65.5 mm (W) × 98 mm (D)

How to use

Mount an M.2 NGFF SSD or a mSATA module onto the converter following the module's alignment and mounting points. Insert the converter into the system and connect it to an internal SATA 22‑pin host connector. Ensure the system is powered off before installation and secure the card in the chassis to prevent movement. After powering on, verify that the BIOS/UEFI and the operating system detect the installed drive and initialize or format it as required.

Recommendations

Install or remove storage modules with the system powered off and grounded to avoid electrostatic damage. Check motherboard manual for SATA 22‑pin connector location and any BIOS settings needed to enable additional internal storage devices.
