Placa de interface DeLOCK 90396 interna M.2 SATA

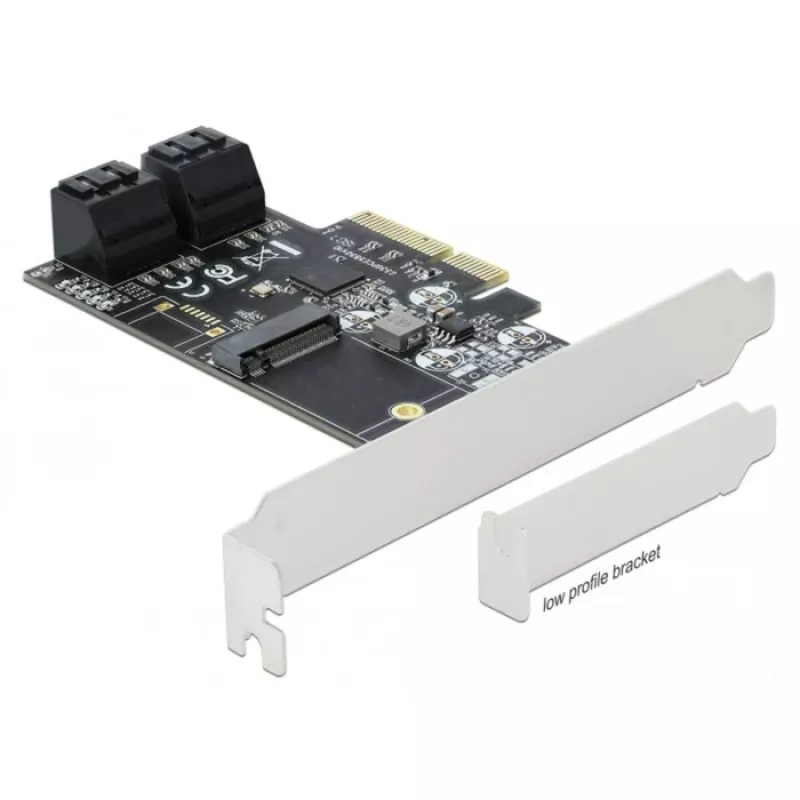

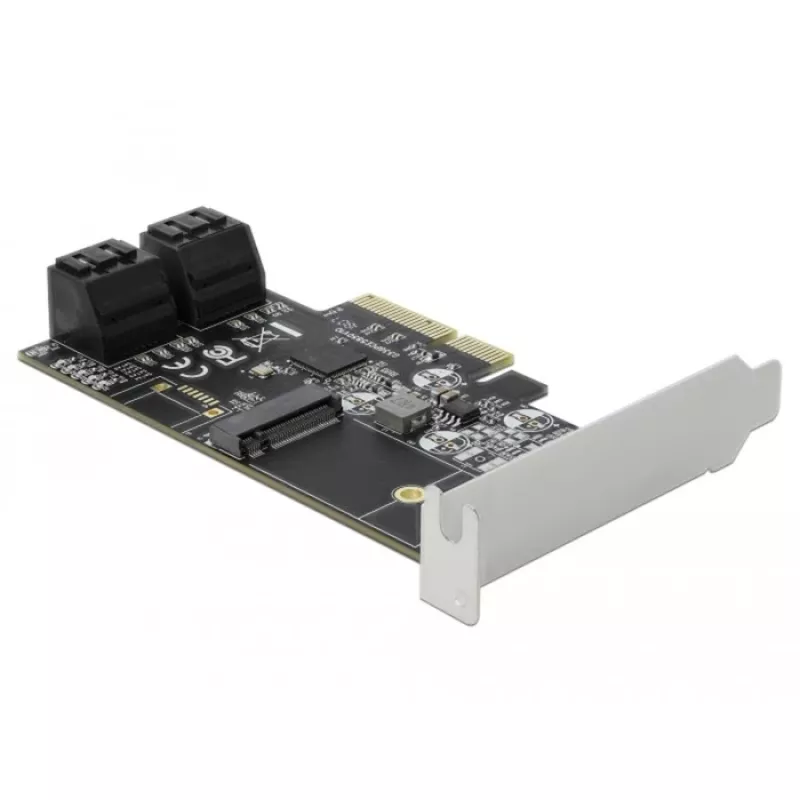

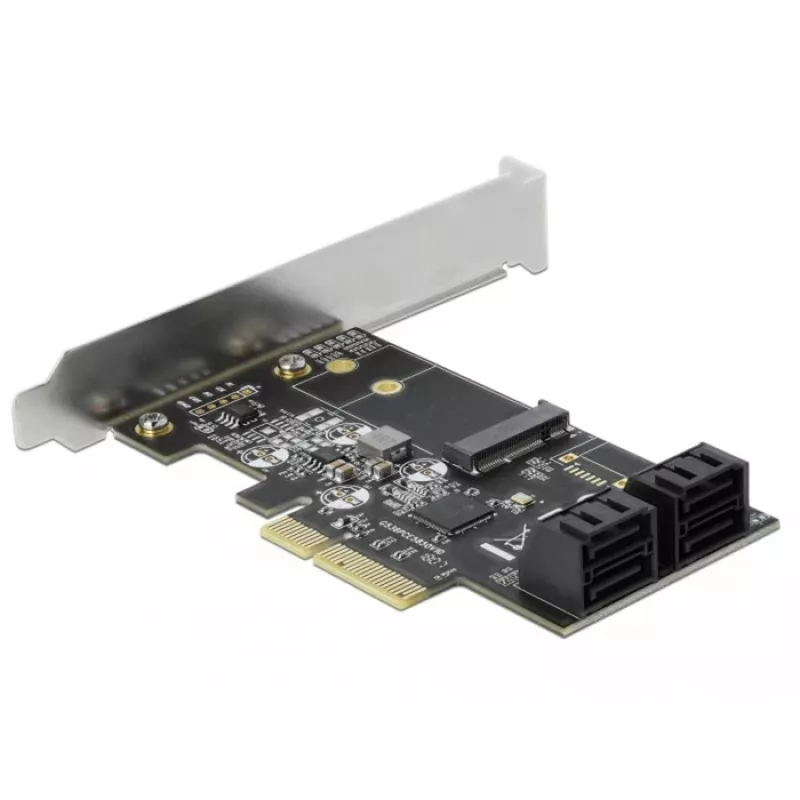

The DeLOCK 90396 is an internal PCIe interface card that adds four internal SATA ports and one M.2 slot to a PC. It supports SATA and M.2 SATA devices and delivers up to 6 Gbit/s transfer speed. The card is supplied with a SATA cable and has a black, green and grey design suitable for installation in desktop systems.

Advantages

This card provides four additional internal SATA ports plus one M.2 2242/2230 slot, allowing simultaneous connection of SATA SSDs, hard drives, optical drives and an M.2 SATA module. It connects via PCIe for direct internal integration and supports data rates up to 6 Gbit/s. The delivery includes a SATA cable for immediate connection.

Suitable for

• Expanding internal storage in desktop PCs
• Adding SATA SSDs or HDDs to systems with limited ports
• Installing an M.2 SATA module in 2242 or 2230 form factor
• Connecting internal optical drives or other SATA devices

Key specifications

• Host interface: PCIe

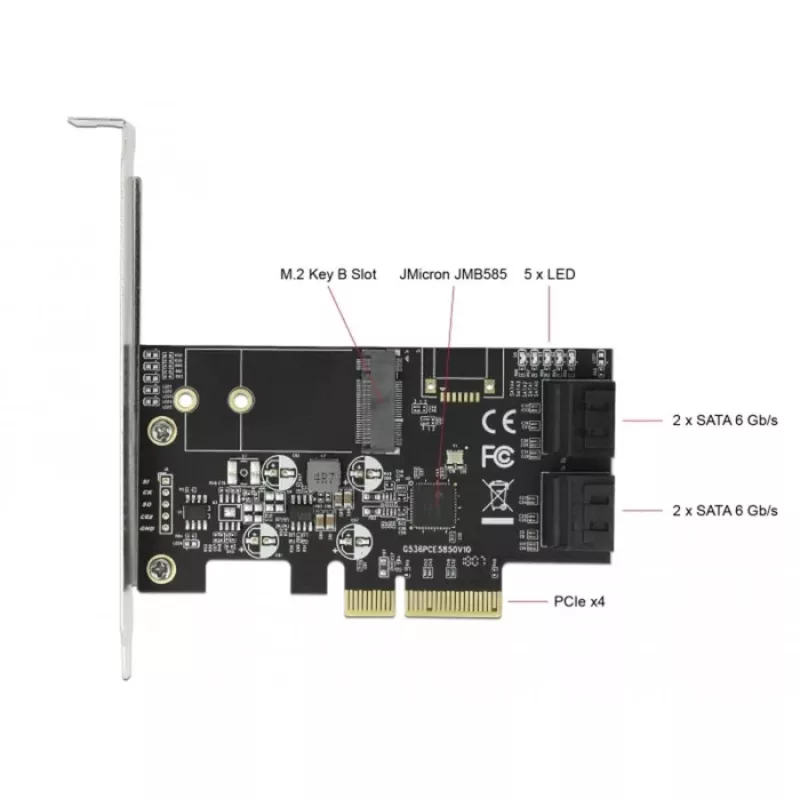

• Output interface: 4× internal SATA, 1× M.2 (2242/2230, SATA)
• Maximum data transfer rate: 6 Gbit/s
• Internal: Yes

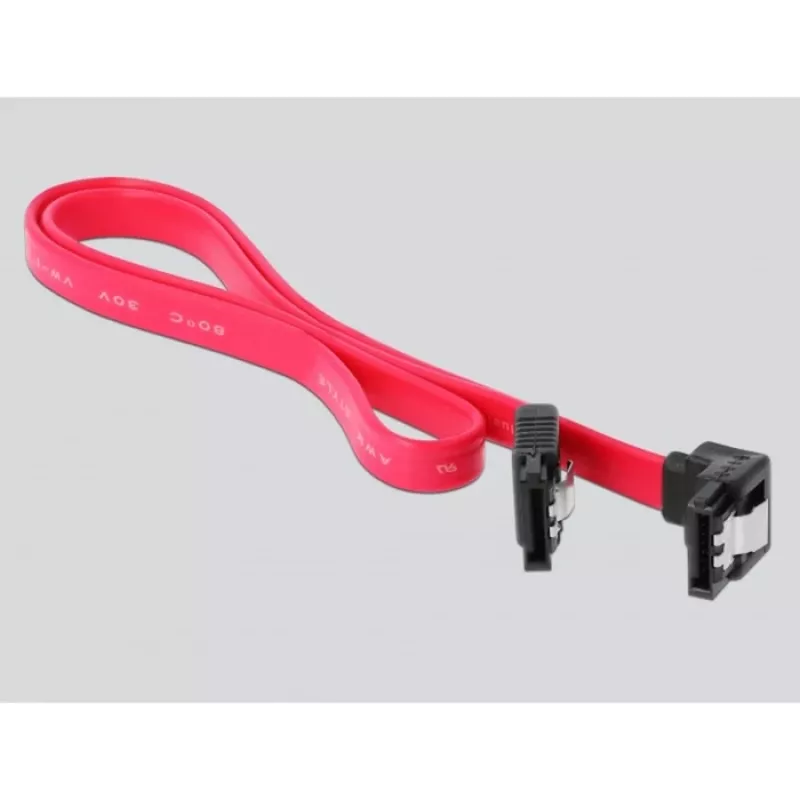

• Included accessories: SATA cable
• Product colours: Black, Green, Grey

How to use

Power off the PC and unplug it from the mains. Insert the card into a free PCIe slot on the motherboard and secure it to the case. Connect internal SATA devices to the card's SATA ports using the supplied SATA cable or additional cables as required. Install an M.2 SATA module in 2242 or 2230 form factor into the M.2 slot and fasten it according to the motherboard or card screw point. Reconnect power and start the system; the operating system should detect the connected SATA and M.2 devices.

Recommendations

Ensure compatibility of the M.2 module (SATA-based, 2242 or 2230) before installation and verify that the chosen PCIe slot and system chassis provide sufficient space and power for the added drives. Use appropriate screws and cables, and follow static-discharge precautions when handling internal components.
