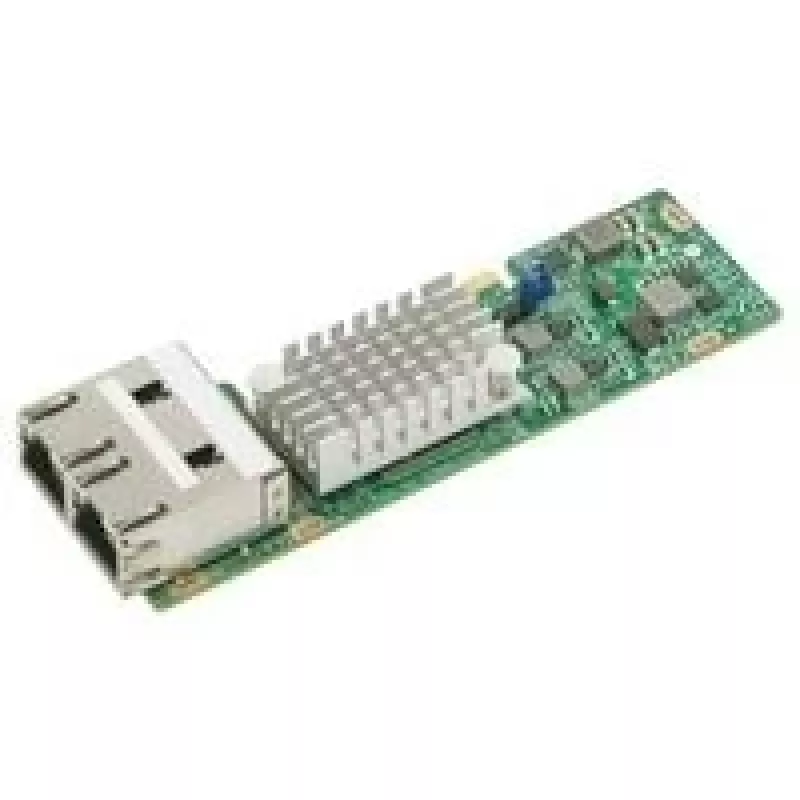

Placa de rede Supermicro AOC-CTGS-I2T-O Dual-Port 10GBASE-T PCI Express 2.1 x8 (Low Profile)

The Supermicro AOC-CTGS-I2T-O is a high-performance dual-port 10 Gigabit Ethernet network interface card designed for enterprise data centers and demanding network environments. Based on the Intel X540 controller, it delivers reliable 10 Gbps connectivity over standard RJ45 copper cabling, supporting both CAT6a and CAT6 cables. Its low-profile form factor with included full-height bracket ensures compatibility with a wide range of server chassis.

Advantages

This adapter provides exceptional throughput for virtualization, storage, and high-bandwidth applications. With support for jumbo frames up to 15.5 KB, iSCSI remote boot, FCoE, and advanced offload technologies, it reduces CPU overhead and improves network efficiency. Energy Efficient Ethernet (EEE) helps lower power consumption during low data activity.

Suitable for

• Enterprise servers requiring high-density 10GbE connectivity
• Virtualized environments (VMware ESXi, Hyper-V) needing reliable network performance
• Storage networks (iSCSI, FCoE) and data-intensive applications
• Data centers upgrading from 1GbE to 10GbE infrastructure

Key specifications

• Host Interface: PCI Express 2.1 x8
• Number of Ports: 2 x RJ45 10GBASE-T
• Data Transfer Rate: 10 Gbps per port
• Chipset: Intel Ethernet Controller X540
• Form Factor: Low-profile (full-height bracket included)
• Supported Cabling: CAT6a (up to 100m), CAT6 (up to 55m)
• Jumbo Frame Support: Up to 15.5 KB
• Virtualization Support: Intel VT-c
• PXE Boot, VLAN, iSCSI Remote Boot, FCoE Support: Yes
• Energy Efficient Ethernet (EEE): Yes
• TCP/UDP/IP Checksum Offload, Receive Side Scaling (RSS): Yes
• Supported OS: Windows Server, Linux, VMware ESXi, FreeBSD

Recommendations

For optimal performance, use CAT6a cabling and ensure your system has an available PCI Express 2.1 x8 or higher slot. This card is ideal for server deployments requiring low-latency, high-throughput networking.
