Placa PCI Express x16 DeLOCK 90054

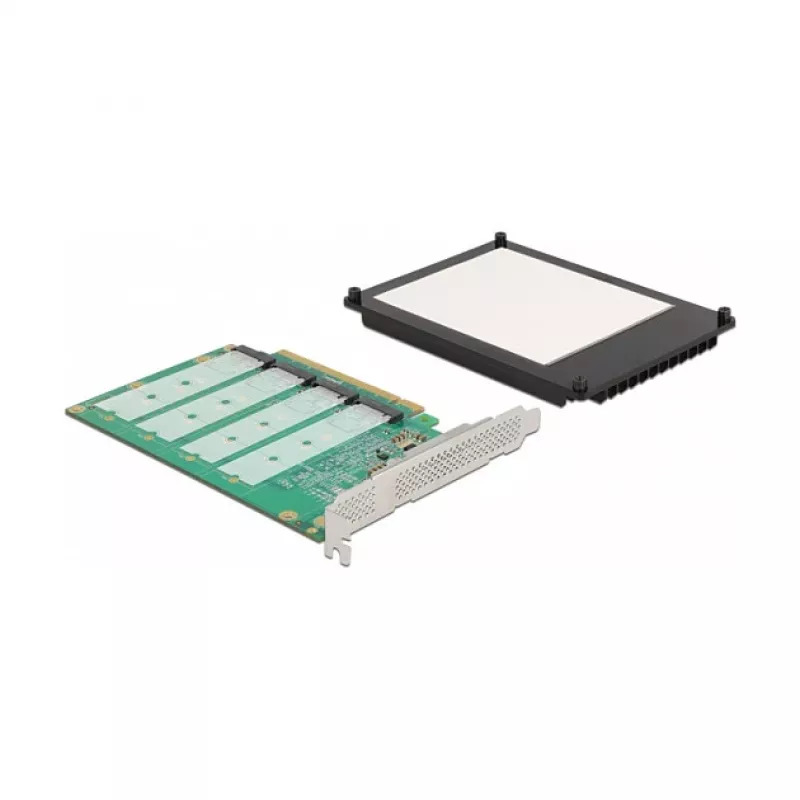

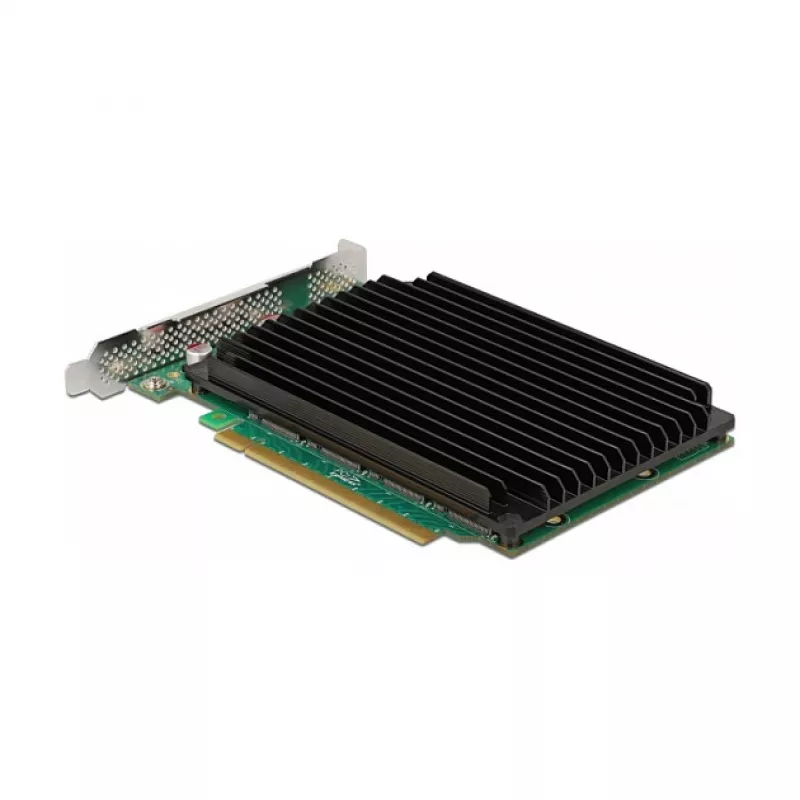

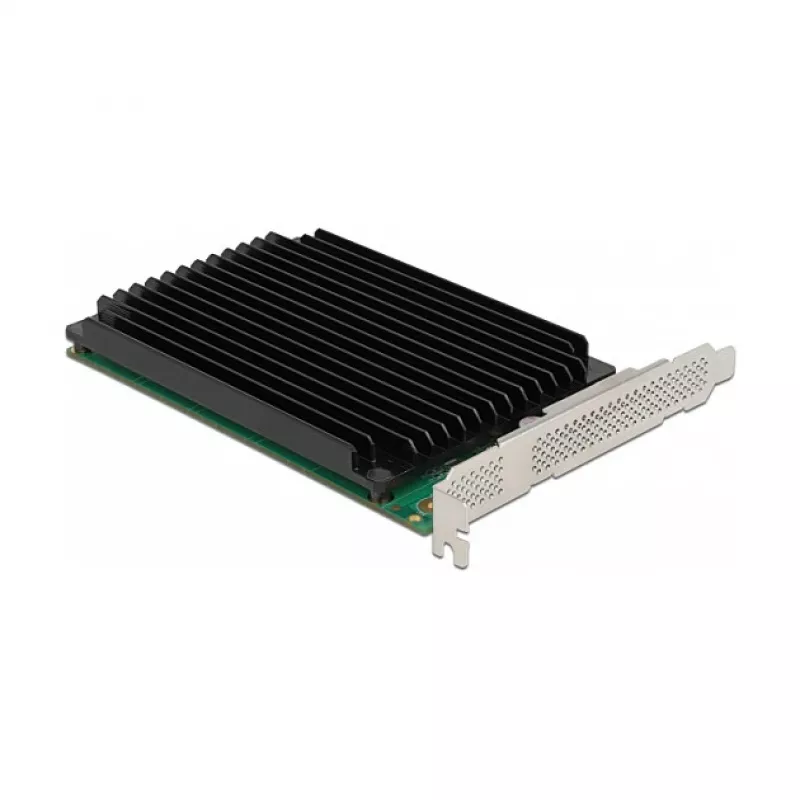

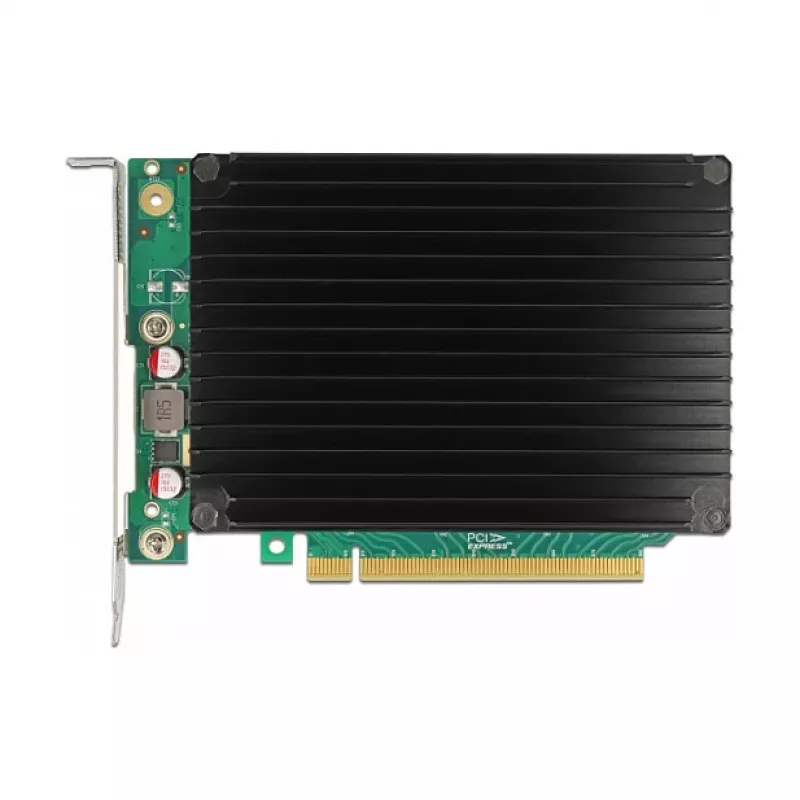

This PCI Express x16 card by DeLOCK allows installation of up to four internal NVMe M.2 Key M SSDs in sizes 2280, 2260, 2242 and 2230. The card is designed for internal use, connects via PCIe and features a large passive heatsink to provide adequate cooling for M.2 modules. The product is compatible with motherboards that support PCIe bifurcation and works with Windows 10, 8.1 and Windows Server 2016.

Advantages

The DeLOCK PCI Express x16 Card expands PC storage with four M.2 slots while keeping a low-profile, passive cooling solution. It supports multiple M.2 form factors (2280/2260/2242/2230) and uses the PCIe host interface for high-speed NVMe connections. The black design fits standard internal builds and requires motherboard PCIe bifurcation to enable all ports.

Suitable for

• Adding multiple NVMe M.2 SSDs to a desktop PC
• Expanding internal storage capacity for workstations or servers
• Systems with available PCIe x16 slot and motherboard bifurcation support
• Users who prefer passive (fanless) cooling for SSDs

Key specifications

• Brand: DELOCK
• Model / MPN: 90054
• EAN: 4043619900541
• Interface: PCIe x16 (requires PCIe bifurcation)
• Output: 4 × M.2 Key M slots (supports 2280, 2260, 2242, 2230)
• Cooling: Passive heatsink
• Internal use: Yes
• Product colour: Black
• Supported OS: Windows 10, Windows 8.1, Windows Server 2016

How to use

Install the card into an available PCIe x16 slot on a motherboard that supports PCIe bifurcation. Mount M.2 NVMe SSDs of supported sizes into the corresponding slots and secure them according to the card’s mounting points. Ensure the passive heatsink has clearance inside the case for adequate airflow. After hardware installation, enable PCIe bifurcation settings in the motherboard BIOS if required and verify the operating system recognises the SSDs.

Recommendations

Use this card in systems with confirmed PCIe bifurcation support. For optimal thermal performance, provide case ventilation around the card and avoid stacking drives directly above the heatsink. Check motherboard documentation for correct bifurcation settings before installation.
