Placa DeLOCK PCI Express x4 para 1 x NVMe M.2 Key M 110 mm interno Low Profile

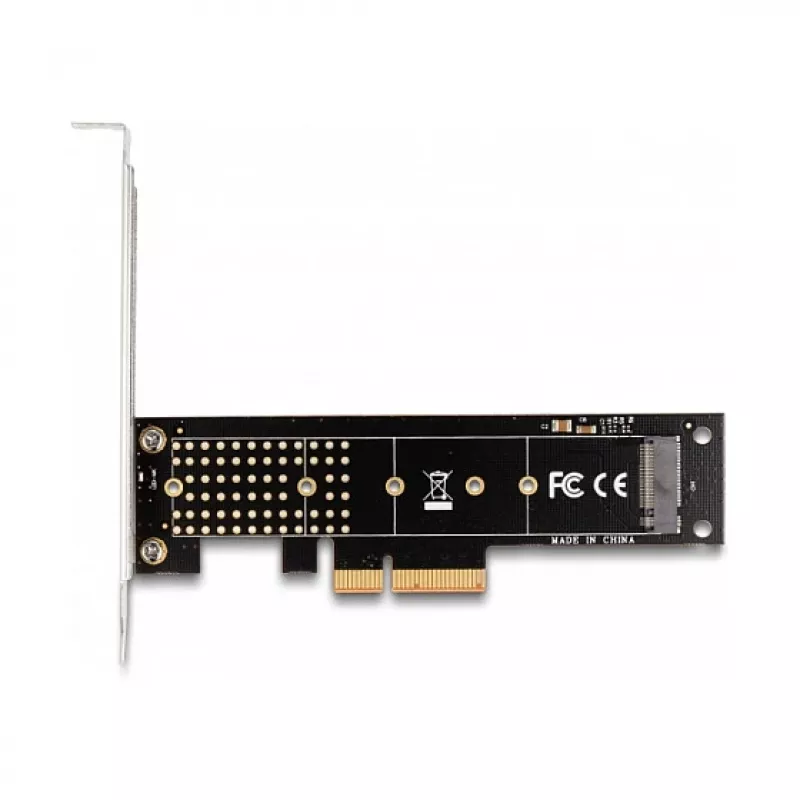

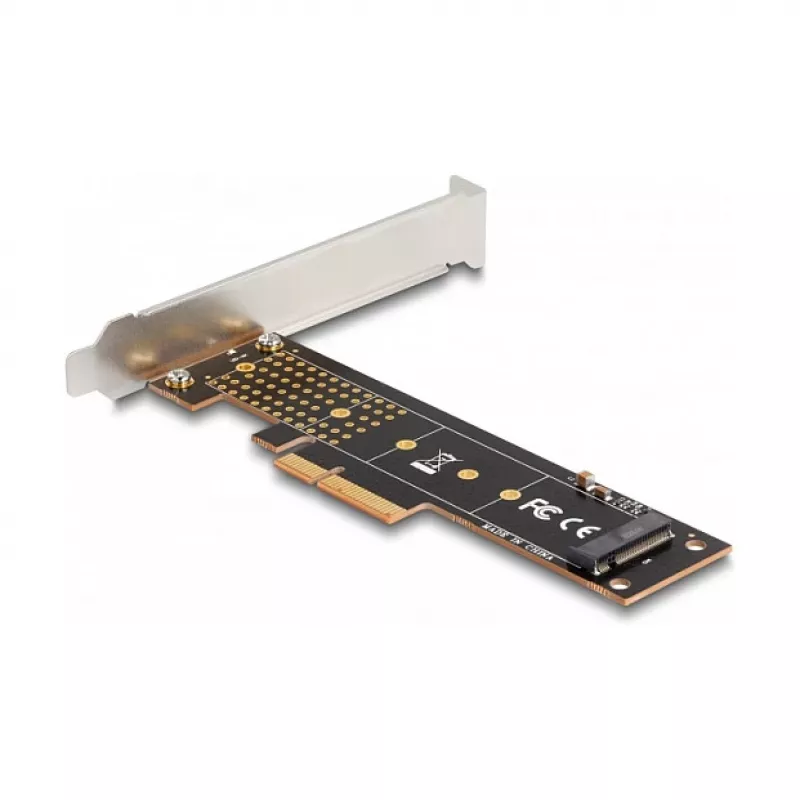

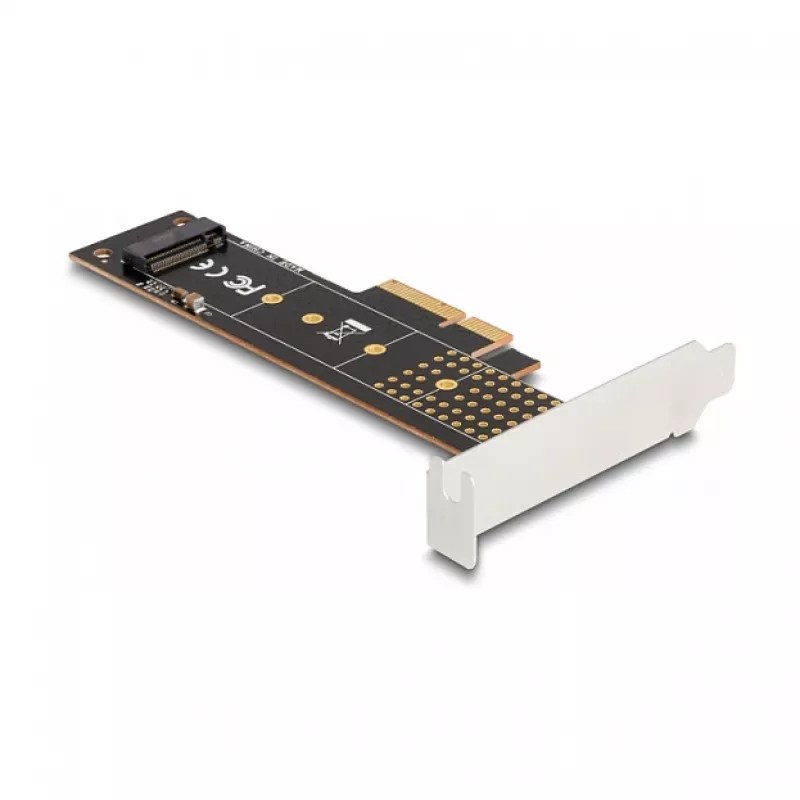

The DeLOCK PCI Express x4 Card adds one internal NVMe M.2 Key M slot to a PC, supporting M.2 modules in 22110, 2280, 2260, 2242 and 2230 sizes. It is a low profile PCIe add-in card with a PCIe 4.0 host interface, intended for installing a single 110 mm M.2 NVMe SSD inside desktop systems. The card is compatible with common Windows operating systems including Windows 10 and Windows Server 2019.

Advantages

This PCIe x4 adapter enables direct connection of an NVMe M.2 Key M SSD for high-speed storage expansion while occupying a single low profile slot. The supporting of multiple M.2 lengths (22110, 2280, 2260, 2242, 2230) provides flexibility for different SSD form factors. The metallic, black design is suitable for compact builds and systems with restricted internal space.

Suitable for

Key specifications

How to use

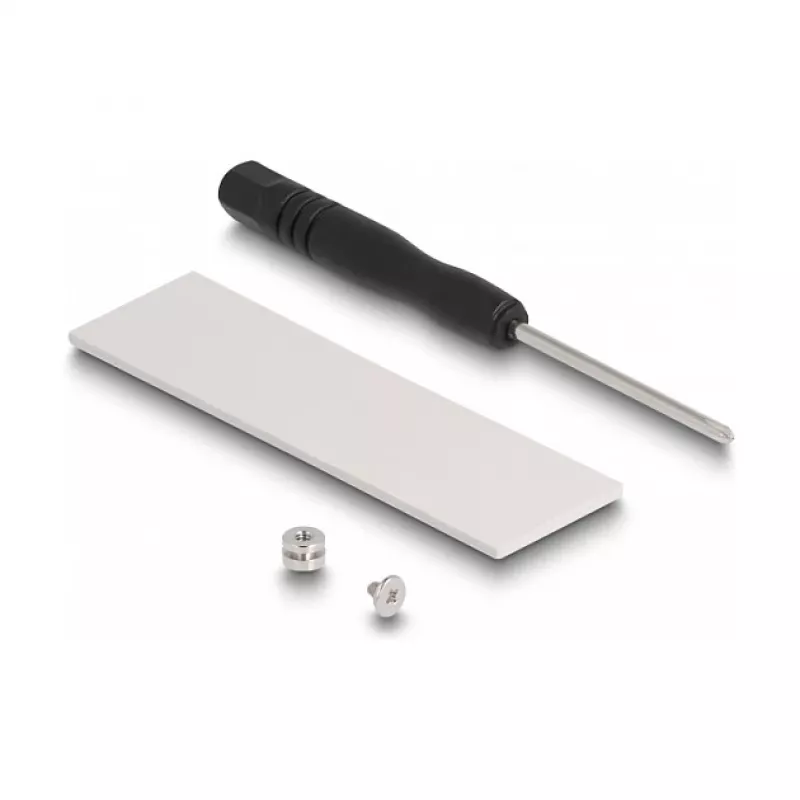

Power off the PC and unplug it from the mains. Install the card into an available PCI Express x4 (or compatible x8/x16) slot on the motherboard and secure it in the chassis using the low profile bracket. Insert an M.2 Key M NVMe SSD of supported length into the M.2 socket at the recommended angle and fix it with the appropriate standoff and screw for the chosen module length. Reassemble the system, reconnect power and boot the computer. Configure the new NVMe drive in the operating system or storage management utility as required.

Recommendations

Ensure the motherboard BIOS and operating system support NVMe devices and that you use a compatible M.2 Key M NVMe SSD. For best performance, install the card in a PCIe slot wired as x4 or higher and verify thermal clearance inside the chassis for adequate cooling of high-speed NVMe drives.
