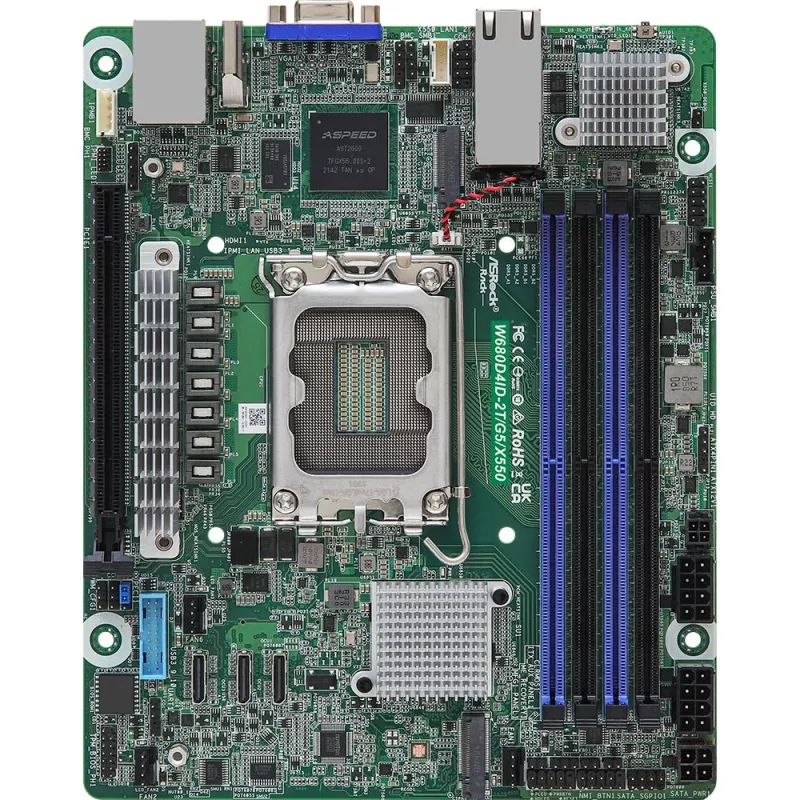

Placa-mãe ASRock W680D4ID-2T/G5/X550 Mini-DTX, LGA 1700, Intel W680, DDR5, 10GbE, IPMI

The ASRock W680D4ID-2T/G5/X550 is a high-performance mini-DTX motherboard designed for Intel 12th/13th/14th Gen Core and Xeon E-2400 series processors. Featuring the Intel W680 chipset, it supports DDR5 ECC/non-ECC memory, dual 10 Gigabit Ethernet, and comprehensive IPMI management. This board is ideal for compact server and workstation builds where space is limited but performance is critical.

Advantages

With support for up to 128 GB of DDR5 memory, PCIe 5.0 x16 slot, and dual 10GbE LAN, this motherboard delivers exceptional data throughput and future-proof connectivity. The integrated BMC with IPMI 2.0 enables remote management and KVM, making it perfect for data centers and edge computing.

Suitable for

• Compact servers and workstations
• Edge computing and network appliances
• Virtualization and hyper-converged infrastructure
• High-performance computing (HPC) nodes

Key specifications

• CPU Socket: LGA 1700
• Chipset: Intel W680
• Form Factor: Mini-DTX
• Memory: 4x DDR5 DIMM, up to 128 GB, ECC/non-ECC
• Expansion: 1x PCIe 5.0 x16
• Storage: 4x SATA3 6Gb/s, 1x M.2 Key M (PCIe Gen4 x4)
• Networking: 2x 10GbE (Intel X550-AT2), 1x 1GbE (Intel I210AT for IPMI)
• Management: IPMI 2.0 with KVM and dedicated LAN
• Video: 1x D-Sub (VGA) via Aspeed AST2600
• USB: 2x USB 3.2 Gen1 Type-A, 2x USB 2.0 Type-A
• Power: 24-pin ATX + 8-pin EPS
• Operating Temperature: 0°C to 50°C

Recommendations

For optimal performance, pair this motherboard with Intel Xeon E-2400 series processors and ECC DDR5 memory. Ensure adequate cooling for the mini-DTX form factor, especially when using high-power CPUs.
