Placa-mãe GIGABYTE X870 AORUS TACHYON ICE, AMD X870, Socket AM5, ATX

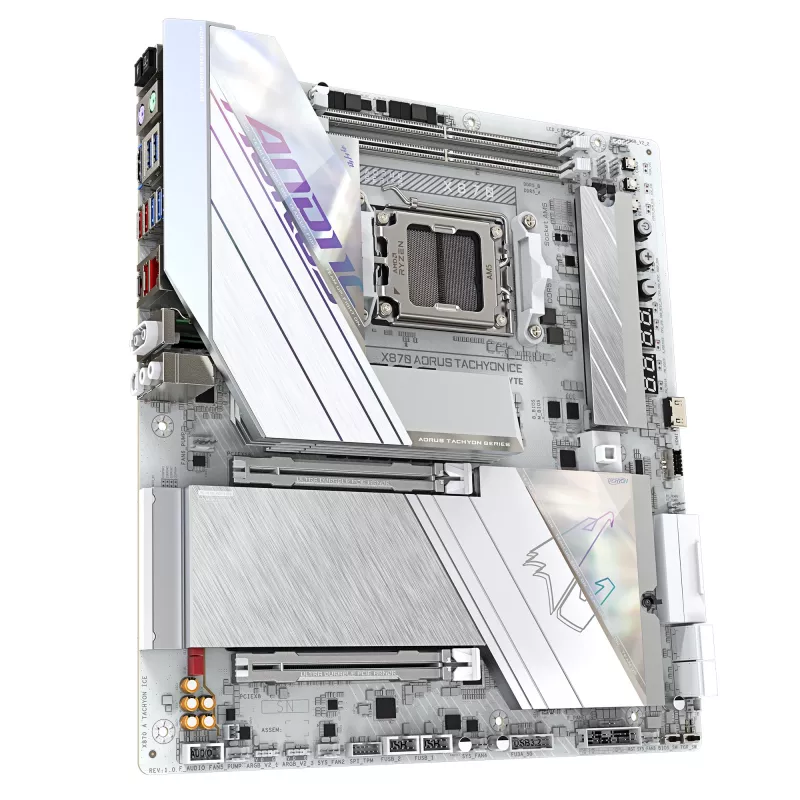

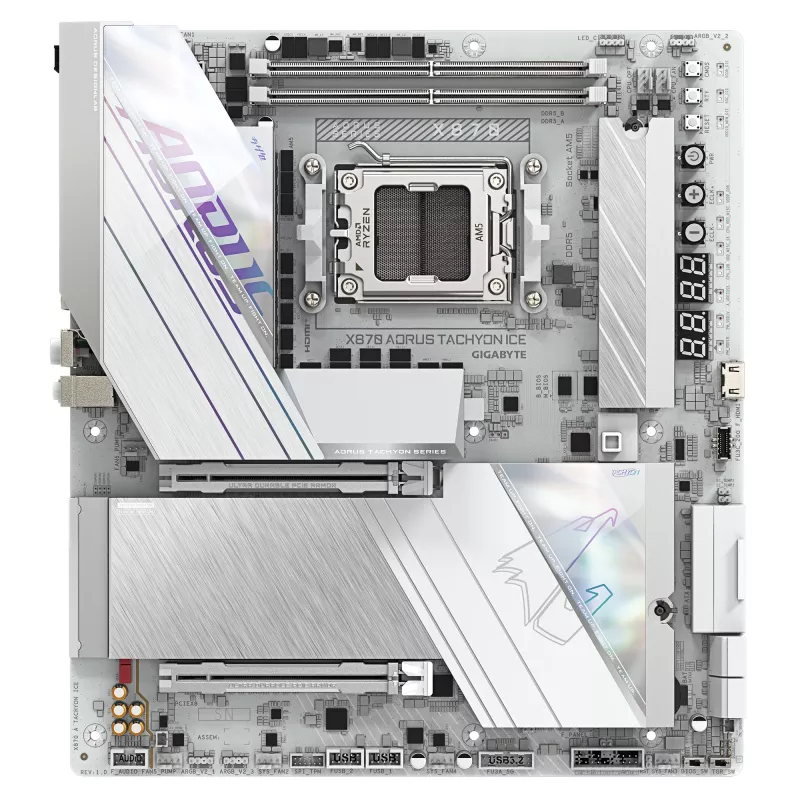

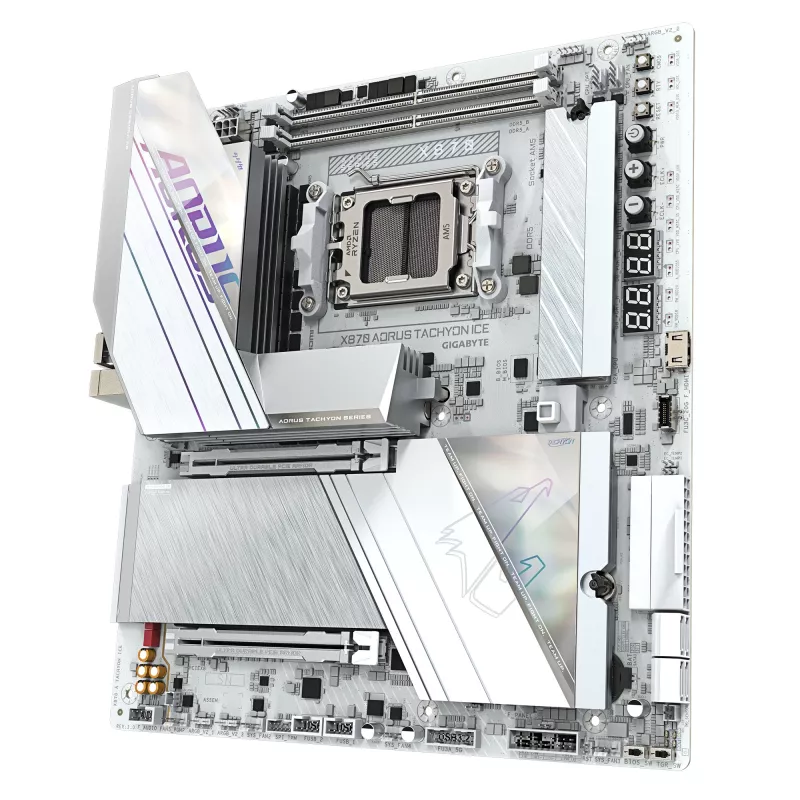

The GIGABYTE X870 AORUS TACHYON ICE is an Extended ATX motherboard for Socket AM5 systems, designed to support AMD Ryzen 7000, 8000 and 9000 series processors. It features a digital twin 18+2+2 phase VRM, two DDR5 DIMM slots with AMD EXPO support and up to 128 GB memory, multiple M.2 slots including a PCIe 5.0 x4 slot, dual USB4 Type-C with DP-Alt, Wi‑Fi 7 with directional high‑gain antenna and 5GbE LAN for fast networking. The board targets high-performance gaming, content creation and professional workloads requiring advanced connectivity and robust power delivery.

Advantages

The motherboard provides high power delivery stability through its 18+2+2 digital VRM, enabling reliable CPU overclocking and sustained performance under load. Memory support for DDR5 with OC capability up to 9600MT/s and AMD EXPO compatibility allows for high-frequency configurations. Storage flexibility is provided by three M.2 slots (one PCIe 5.0 x4) plus SATA RAID support, and fast connectivity options include dual USB4 Type-C ports, Wi‑Fi 7 and 5GbE LAN. Practical installation features such as EZ-Latch Plus for PCIe/M.2 slots and WIFI EZ-Plug simplify component installation and antenna setup.

Suitable for

• High-performance gaming systems
• Content creation and video editing workstations
• Professional PCs requiring fast networking and expandability

Key specifications

• Form factor: Extended ATX
• Chipset: AMD X870
• Socket: Socket AM5 (supports AMD Ryzen 7000 / 8000 / 9000 series)
• Power design: Digital twin 18+2+2 phase VRM
• Memory: 2× DDR5 DIMM slots, max 128 GB, DDR5 OC up to 9600MT/s, AMD EXPO support
• Storage: 3× M.2 (including 1× PCIe 5.0 x4), SATA III, RAID support; up to 7 drives supported
• Expansion: PCIe 5.0 and PCIe 4.0 support with EZ-Latch Plus
• Networking: 5GbE LAN and 2.5GbE, Wi‑Fi 7 (802.11be) with directional ultra-high gain antenna, Bluetooth 5.4

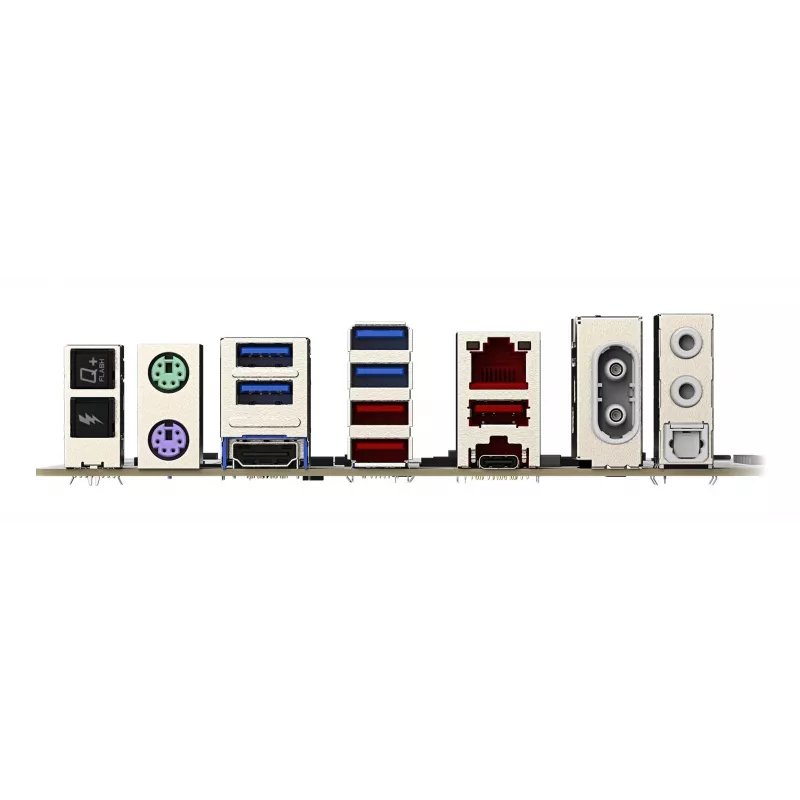

• Rear I/O: Dual USB4 Type-C with DP-Alt
• Audio: Realtek ALC1220-VB, 7.1 channels
• BIOS: UEFI AMI 512 Mbit, ACPI 5.0, Clear CMOS jumper

How to use

Install the motherboard in an Extended ATX compatible case, fit the CPU into the Socket AM5 socket following AMD mounting instructions, and apply an appropriate CPU cooler. Populate up to two DDR5 DIMMs, enable AMD EXPO profiles in BIOS if using EXPO-capable memory, and connect power cables from a compatible PSU to the 8/16‑pin CPU and 24‑pin ATX headers. Install NVMe M.2 drives into the M.2 slots and secure with the EZ-Latch Plus where available; connect SATA drives to the SATA III ports if required. Configure storage, memory and networking options in the UEFI BIOS and update BIOS to the latest version for optimal compatibility with Ryzen 8000/9000 series processors.

Recommendations

For stable high-frequency DDR5 operation and CPU overclocking, use a high-quality power supply, adequate case airflow and a capable CPU cooler. Enable AMD EXPO or manual memory tuning in BIOS, and keep the UEFI BIOS updated to ensure full compatibility with latest Ryzen processors and device firmware.
