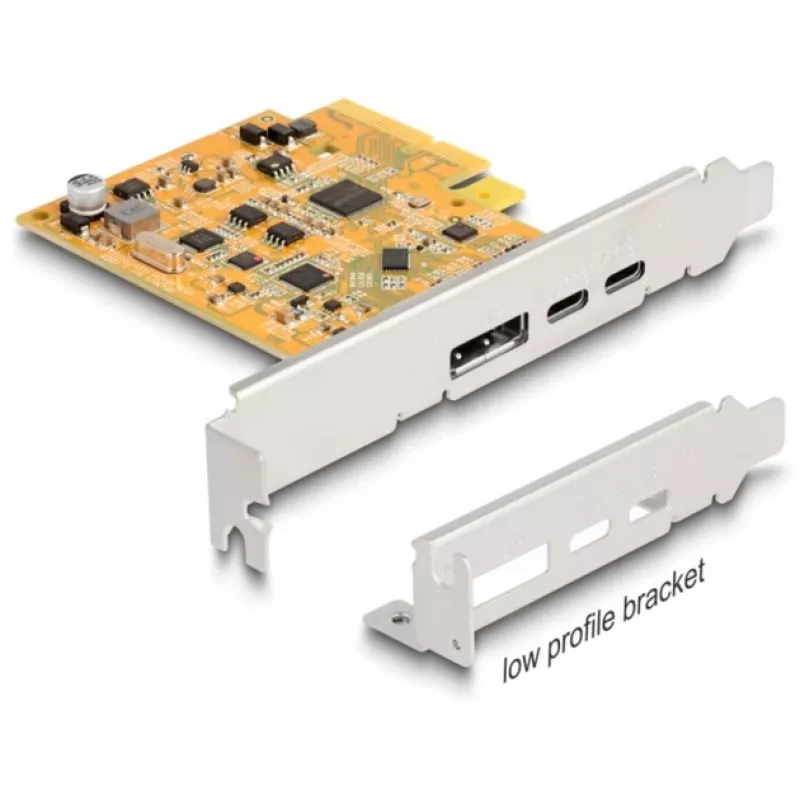

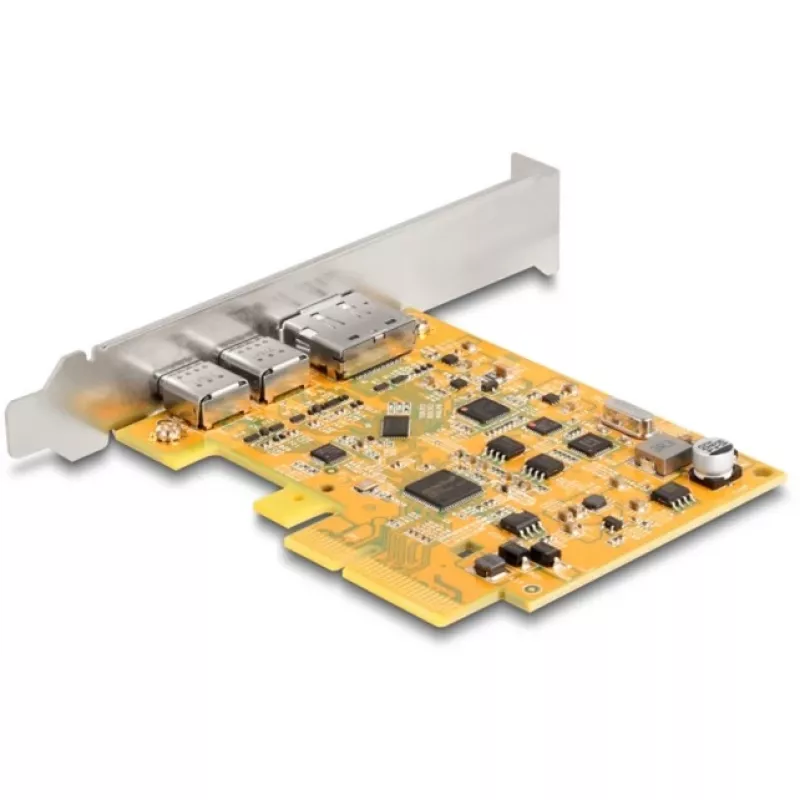

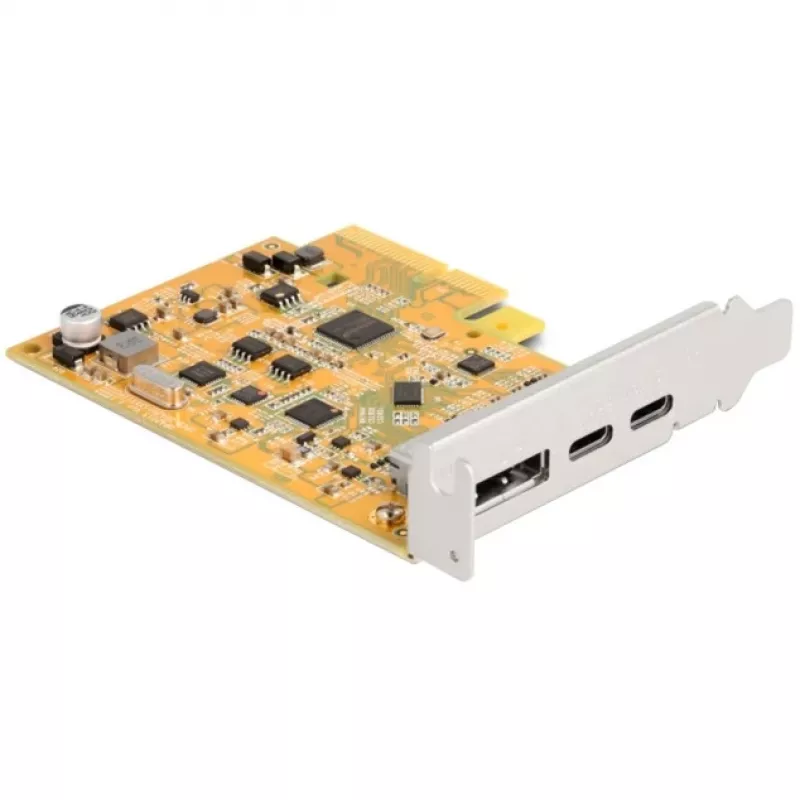

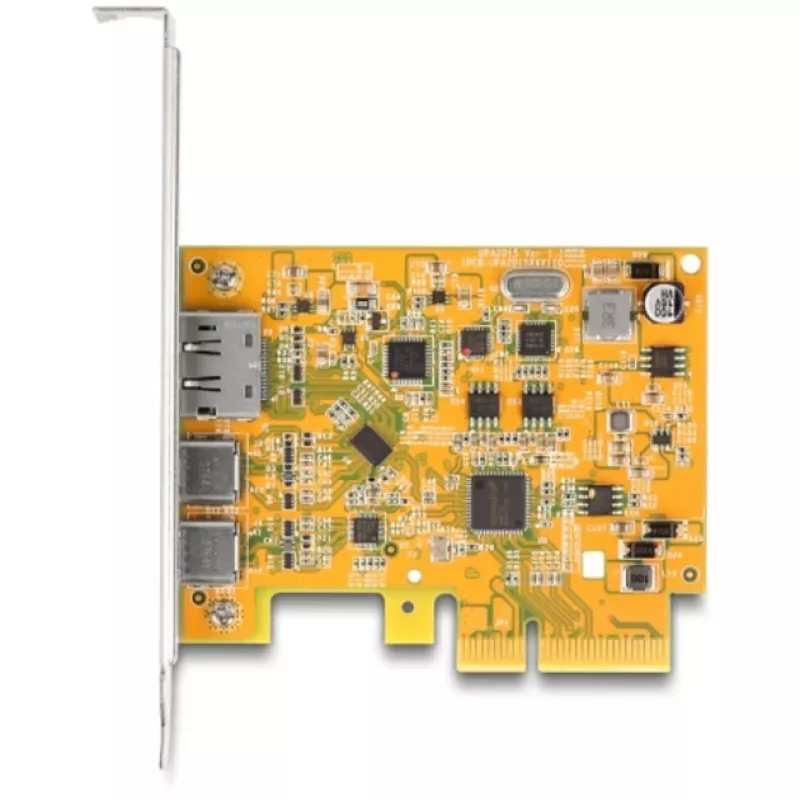

Placa PCI Express x4 DeLOCK 90161

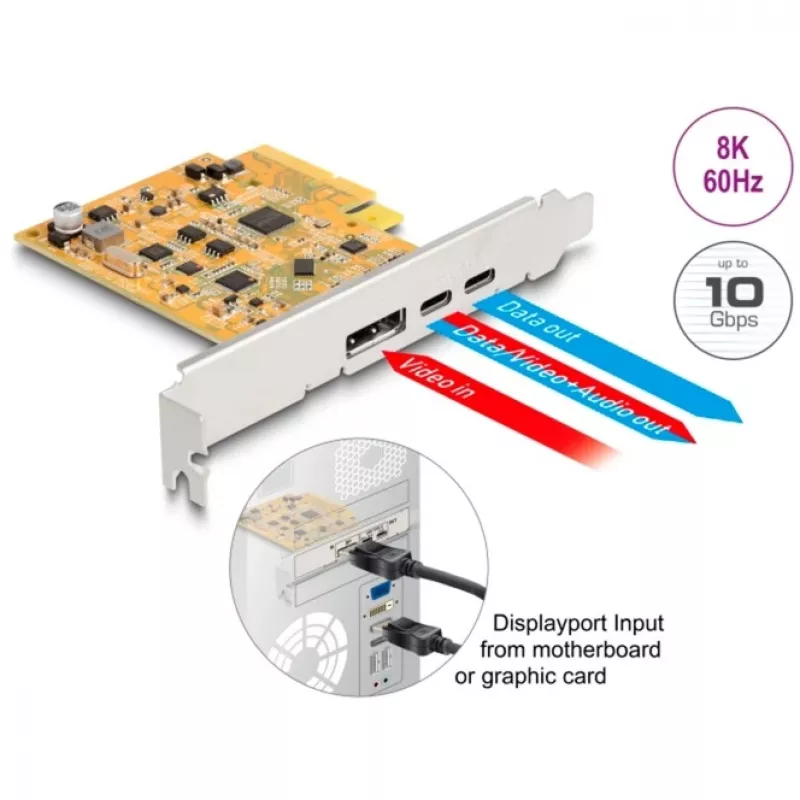

This PCI Express card by Delock expands a PC with two external USB-C™ ports, providing high-speed data transfer and video output capability. The card offers one USB Type-C 10 Gbps port and one USB Type-C 10 Gbps port with DisplayPort Alt Mode support. A DisplayPort cable is included to connect the card's DisplayPort interface to a graphics card output on the motherboard so that video and audio can be transmitted through the DP Alt Mode USB-C port.

Advantages

The card uses a PCIe x4 (PCIe 3.0) host interface to ensure stable high-speed connections and supports 10 Gbps USB Type-C data rates. One port supports DP Alt Mode for direct video and audio output when connected to a DisplayPort source via the included cable. The compact expansion card installs into a standard PCI Express slot and provides two external USB-C ports for modern peripherals.

Suitable for

• Adding high-speed USB-C data ports to a desktop PC
• Connecting external storage devices (USB flash drives, external SSD/HDD enclosures)
• Attaching USB-C hubs, card readers and peripherals
• Outputting video and audio to a monitor via DP Alt Mode on USB-C

Key specifications

• Brand: DELOCK
• Model: PCI Express x4 Card DeLOCK 90161
• Host interface: PCIe x4 (PCIe 3.0)
• External ports: 1 × USB Type-C 10 Gbps, 1 × USB Type-C 10 Gbps (DP Alt Mode)
• Output interface: DisplayPort (cable included)
• Product colour: Metallic yellow
• Package: Boxed, includes DisplayPort cable

How to use

Install the card into an available PCI Express x4 (or larger) slot on the motherboard and secure it to the case. Connect the supplied DisplayPort cable between the card's DisplayPort connector and a DisplayPort output on the graphics card or motherboard. After installation, attach USB-C devices to the external ports. Ensure relevant drivers are installed or updated in the operating system for proper recognition and full functionality.

Recommendations

Use the DP Alt Mode capable USB-C port only after connecting the included DisplayPort cable to a DisplayPort output; video output depends on the source signal and the capabilities of the connected display. For best performance, install the card in a PCIe 3.0 x4 or higher slot and avoid obstructing airflow around the expansion card.
