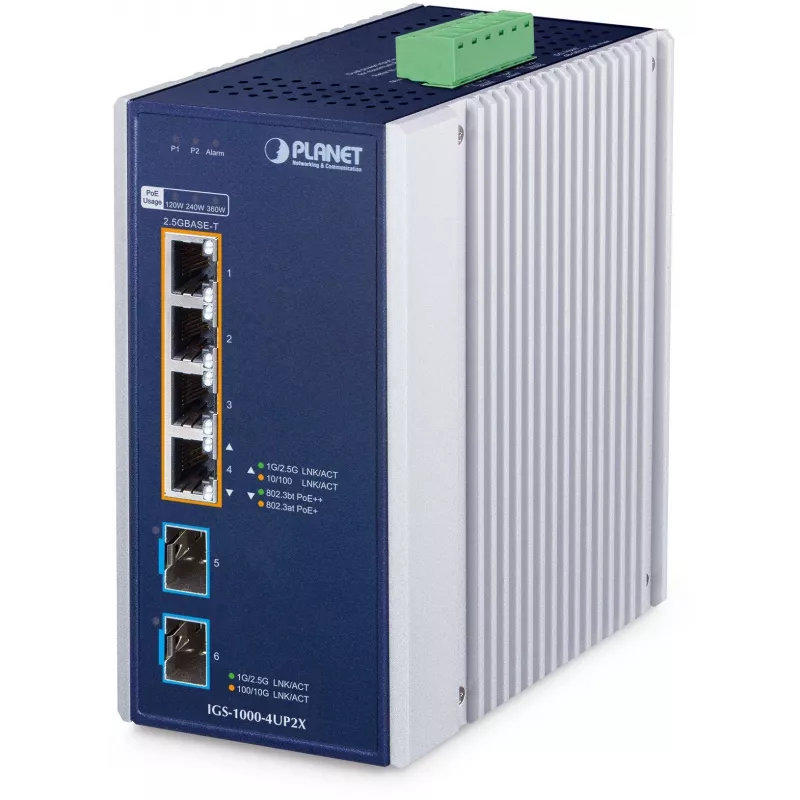

PLANET Switch PoE++ Industrial 4 Portas IGS-1000-4UP2X

The PLANET IGS-1000-4UP2X is a managed industrial PoE++ switch designed for harsh environments. It features 4 Gigabit PoE++ ports with up to 95W per port and a total budget of 240W, plus 2 SFP slots for fiber uplinks. With an IP30 metal case and wide operating temperature range (-40 to 75°C), it is ideal for outdoor, factory, and surveillance deployments.

Advantages

High power PoE++ (IEEE 802.3bt) supports the latest high-power devices such as PTZ cameras and wireless access points. Redundant DC power input ensures reliability. Advanced Layer 2 management features VLAN, QoS, and SNMP for flexible network control.

Suitable for

• Industrial automation and control networks
• Outdoor surveillance systems
• Smart city and transportation infrastructure
• Harsh environment deployments requiring wide temperature tolerance

Key specifications

• 4 x 10/100/1000BASE-T RJ45 PoE++ ports (up to 95W per port, 240W total)
• 2 x 100/1000BASE-X SFP slots
• Switching capacity: 12 Gbps
• Packet forwarding rate: 8.928 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Management: Web, SNMP v1/v2c/v3, Telnet CLI
• Layer 2 features: VLAN, QoS, LACP, STP/RSTP/MSTP, IGMP/MLD Snooping
• Operating temperature: -40 to 75°C
• Power input: Redundant DC 48~56V terminal block
• IP30 metal case, DIN-rail / wall-mount
• ESD and surge protection: 6KV DC

Recommendations

For maximum reliability, use with a redundant DC power supply and fiber uplinks for long-distance connections. Ensure proper ventilation for optimal performance in high-temperature environments.
