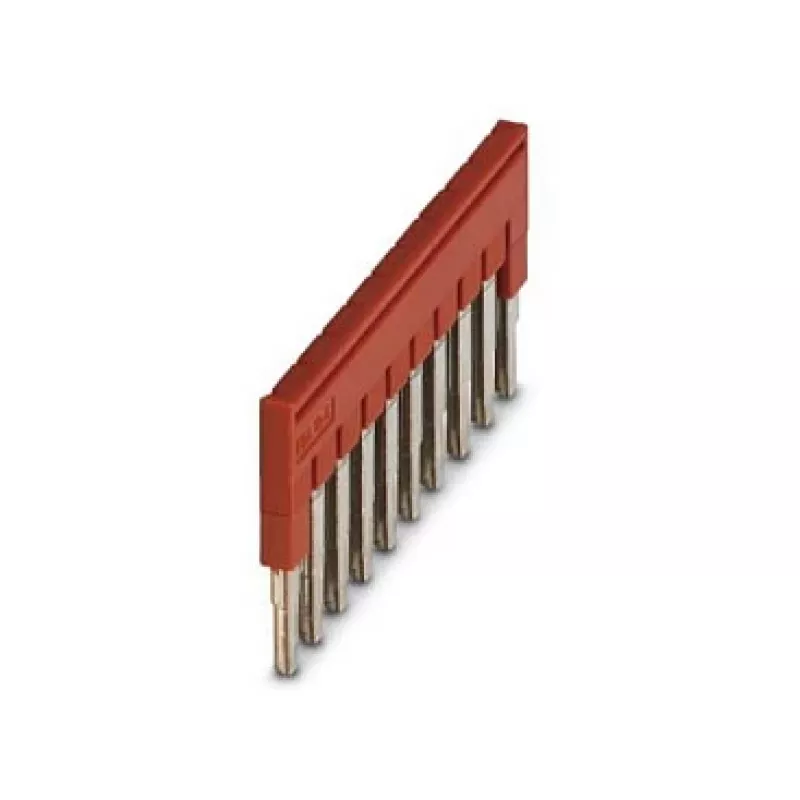

Ponte de ligação Phoenix 3030213 FBS 10-5, 10 polos, passo 5,2 mm, vermelho

The Phoenix 3030213 FBS 10-5 plug-in bridge stands out by offering a compact, tool-free solution for commoning ten adjacent terminal block positions in ST series terminal blocks. Unlike individual jumper wires, this single component reduces wiring time and potential errors, while its 24 A current rating ensures reliable power distribution in control cabinets.

Highlights

• 10-position plug-in bridge for quick commoning of ST series terminal blocks
• 5.2 mm pitch matches standard terminal block spacing
• High current capacity: 24 A rated current
• Robust polyamide housing with UL 94 V0 flammability rating
• Wide operating temperature range: -60 °C to 105 °C
• Compliant with RoHS and REACH environmental standards

In daily use

Installation is straightforward: align the bridge with the terminal block slots and press firmly. The red colour provides clear visual identification in dense wiring setups. The copper contacts ensure low resistance and long-term stability. This bridge is ideal for power distribution, signal commoning, and potential equalisation in industrial control panels.

Full specifications

• Product type: Plug-in bridge
• Number of positions: 10
• Pitch: 5.2 mm
• Colour: Red
• Insulating material: Polyamide (PA)
• Contact material: Copper
• Rated voltage (III/3): 500 V
• Rated surge voltage (III/3): 4 kV
• Rated current: 24 A
• Flammability rating (UL 94): V0
• Operating temperature: -60 °C to 105 °C
• Mounting type: Plug-in
• Compatibility: ST series terminal blocks (e.g., ST 2.5)
• Environmental compliance: RoHS, REACH
• Standards: IEC 60947-7-1

Final note

For efficient and reliable commoning in Phoenix Contact terminal block systems, the FBS 10-5 is a proven choice that combines performance with ease of use.
