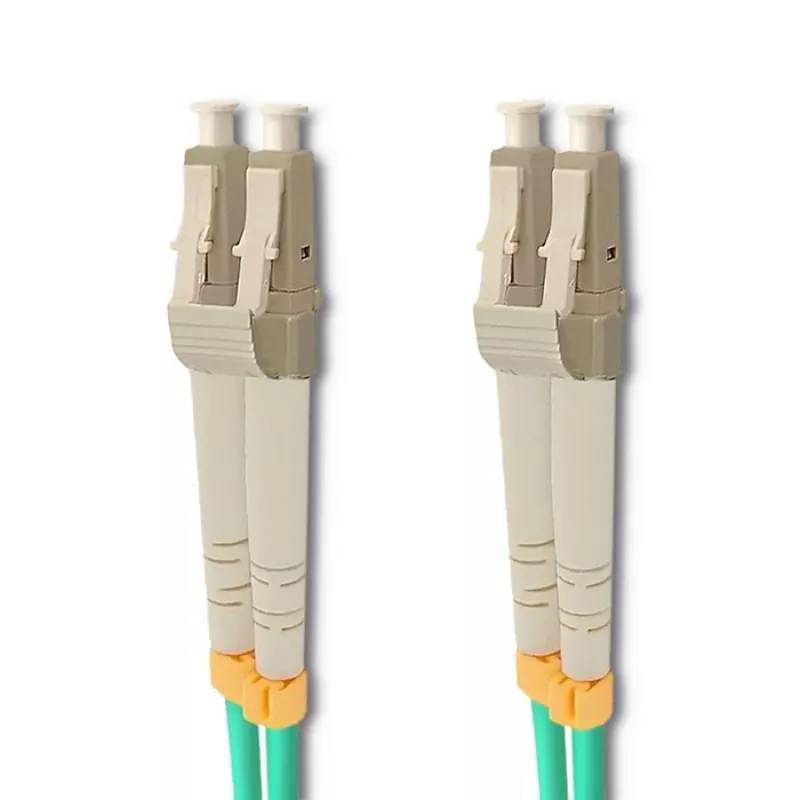

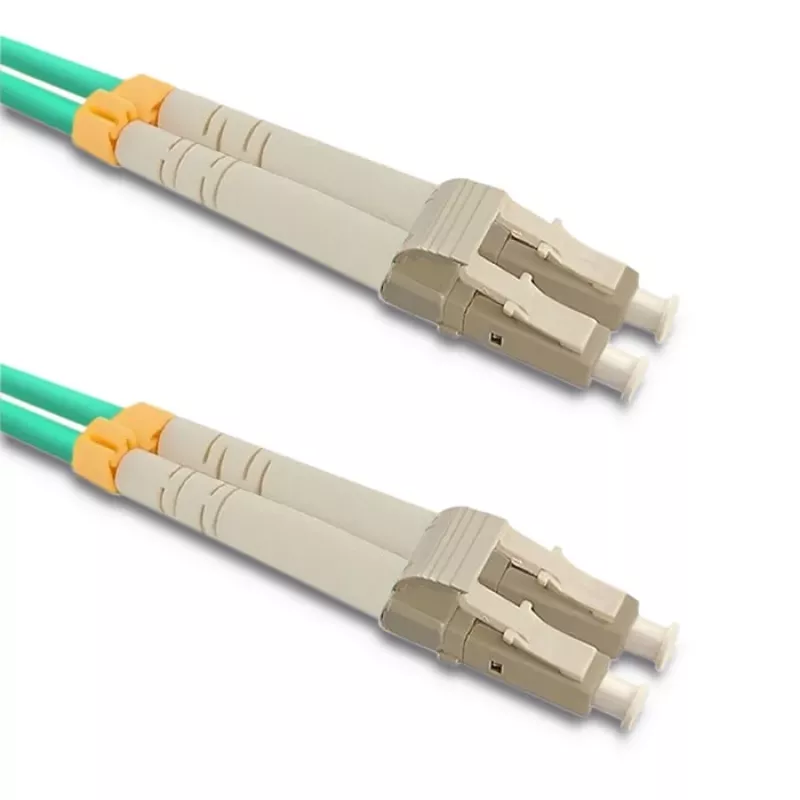

Cabo de patch de fibra ótica LC/UPC para LC/UPC 2,0 m turquesa OM3 multimodo duplex

For high-speed multimode links where OM3 bandwidth matters, this Qoltec patch cable delivers a 2.0 m duplex run in a slim 3.0 mm LSZH jacket. Unlike generic aqua jumpers, the turquoise colour instantly identifies OM3 50/125 µm fibre, while UPC-polished LC connectors on both ends keep insertion loss at or below 0.3 dB. The result is a dependable 10 GbE-ready link for short-reach data centre, campus, or enterprise patching without the bulk of copper.

Highlights

• OM3 multimode fibre with 50/125 µm core/cladding for 10 Gb/s Ethernet up to 300 m at 850 nm
• Duplex LC/UPC to LC/UPC connectors with ceramic ferrules for repeatable low-loss mating
• Turquoise LSZH outer jacket: halogen-free, low smoke, and flame-retardant for safer indoor runs
• 2.0 m length with 3.0 mm diameter – flexible enough for high-density patch panels and cable managers
• Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB ensure stable, error-free transmission

In daily use

Patch it between switches, servers, or media converters and the cable stays put without kinking. The LSZH jacket emits almost no toxic smoke in a fire, so it is approved for enclosed spaces like offices and wiring closets. The turquoise colour follows TIA-598 OM3 identification, making it easy to distinguish from OM1/OM2 or single-mode jumpers during moves, adds, and changes.

Full specifications

• Fibre type: Multimode OM3
• Core/cladding diameter: 50/125 µm
• Cable configuration: Duplex (zip-cord)
• Connector 1: LC/UPC male
• Connector 2: LC/UPC male
• Cable length: 2.0 m
• Cable diameter: 3.0 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket colour: Turquoise
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation at 850 nm: ≤ 2.8 dB/km
• Attenuation at 1300 nm: ≤ 1.0 dB/km
• Bandwidth at 850 nm: 1500 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Operating temperature: -20 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Compliance: RoHS, CE

Final note

Qoltec's turquoise OM3 jumper is a straightforward, standards-compliant choice for anyone building or maintaining a multimode fibre plant. It combines the right fibre class, low-loss UPC polish, and a safety-first LSZH jacket in one ready-to-use cable.
