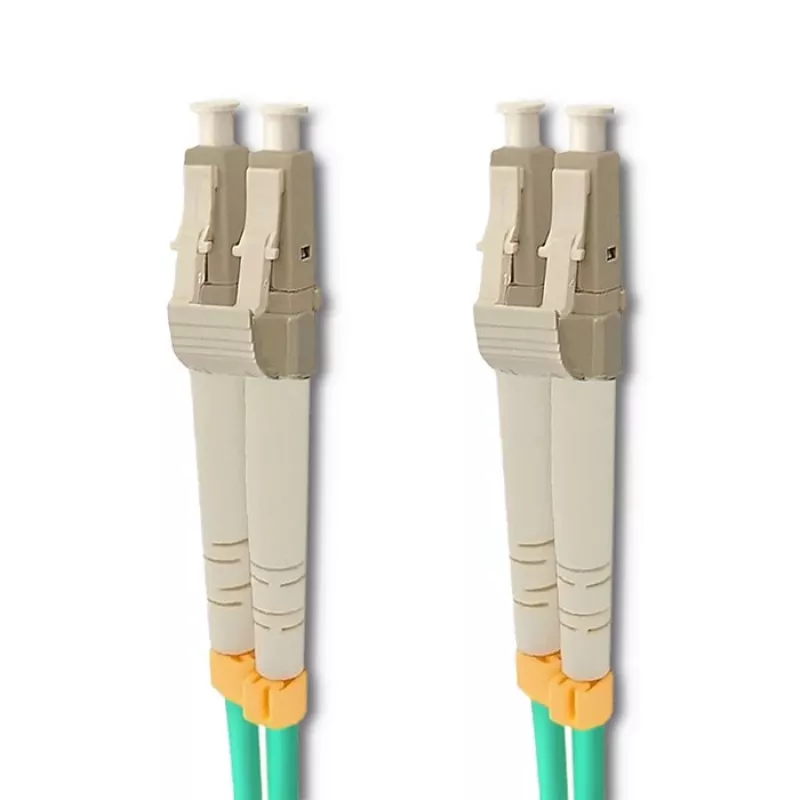

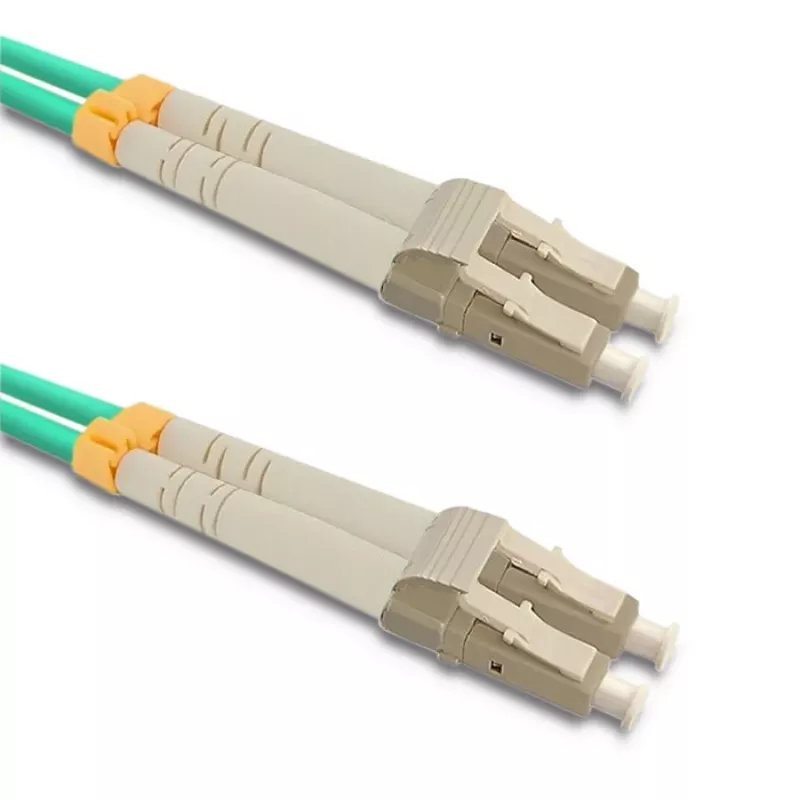

Cabo de patch de fibra ótica multimodo duplex LC/UPC para LC/UPC OM3, 5m, turquesa

Fiber optic patch cord engineered for high-speed data transmission in demanding network environments. This 5-meter duplex multimode OM3 cable with LC/UPC connectors delivers exceptional bandwidth and low insertion loss, making it ideal for Gigabit and 10 Gigabit Ethernet applications.

Advantages

OM3 multimode fiber supports 10 Gb/s data rates up to 300 meters, ensuring future-ready performance. The turquoise LSZH jacket provides flame retardancy and low smoke emission, enhancing safety in data centers and office installations. Precision-polished UPC connectors minimize signal reflection, while the duplex configuration simplifies cable management.

Suitable for

• Data centers and server rooms
• Enterprise LAN and SAN backbones
• Fibre Channel storage networks
• High-density patching between switches, routers, and patch panels

Key specifications

• Cable length: 5 meters
• Fiber type: Multimode OM3, 50/125 µm
• Connectors: LC/UPC to LC/UPC, duplex
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Jacket material: LSZH, turquoise
• Cable diameter: 2.0 mm
• Operating temperature: -20°C to 70°C

Recommendations

For reliable 10G connectivity in space-constrained environments, pair this cable with LC-compatible transceivers and maintain proper bend radius to preserve signal integrity.
