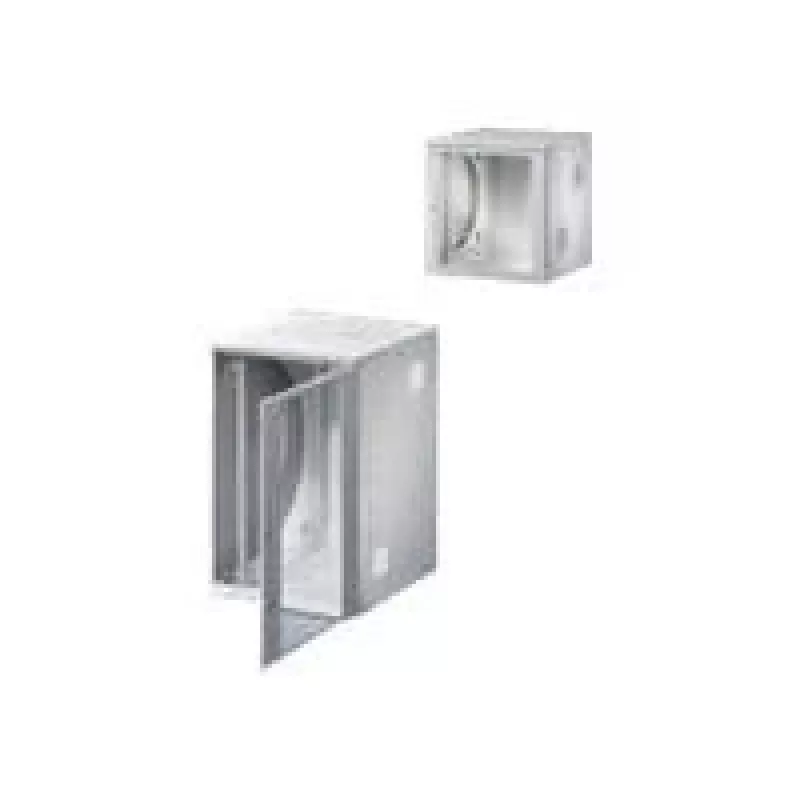

Rack autónomo Rittal DK 7507.010 9U cinzento

The Rittal DK 7507.010 9U freestanding rack is a compact enclosure for mounting 19" equipment. Supplied flat-packed, it can be used as a wall-mounted or floor-standing cabinet and is designed for system assembly on an open 482.6 mm (19") frame. The enclosure includes lockable side panels and a glazed, lockable door with a selectable hinge point, as well as roof/base plates with cut-outs for cable entry via brush strips.

Advantages

Tool-free quick assembly and connection components allow fast installation. The supply includes basic supports, 19" mounting angles and an earthing kit for system-compatible earthing of all enclosure parts. The grey finish and compact dimensions (width 600 mm, depth 400 mm, height 492 mm) suit small server rooms, communication closets and equipment cabinets where a 9U rack is required.

Suitable for

• Small network racks and patch panels
• Telecommunications and networking equipment
• Compact server or storage devices up to 9U
• Wall-mounted or floor-standing installations in offices and technical rooms

Key specifications

• Brand: Rittal
• Model: DK 7507.010 (MPN 7507010)
• Rack size: 482.6 mm (19")
• Rack capacity: 9U
• Dimensions (W×D×H): 600 × 400 × 492 mm
• Colour: Grey
• Delivery contents: 1 wall section, 2 basic supports, 2 roof/base plates with cable cut-outs, 2 lockable side panels, 1 glazed lockable door (security lock 3524 E), connection components for tool-free assembly, earthing kit, 2 × 19" mounting angles
• Packaging: Flat-packed
• EAN: 4028177551404

How to use

Unpack the flat-packed enclosure and identify all supplied components. Assemble the open 19" frame using the supplied connection components for tool-free assembly, attach the basic supports and mounting angles, then mount side panels, roof/base plates and the glazed door. Use the roof/base plate cut-outs with brush strips to route cables into the cabinet. Select the preferred door hinge point before final fastening. Connect the earthing kit to ensure system-compatible earthing of all enclosure parts.

Recommendations

Install the rack on a level surface when used freestanding and follow local regulations for earthing. For wall-mounted use, ensure the wall and fixings support the loaded weight and use appropriate anchors. Leave space for ventilation and cable management when planning equipment layout.
