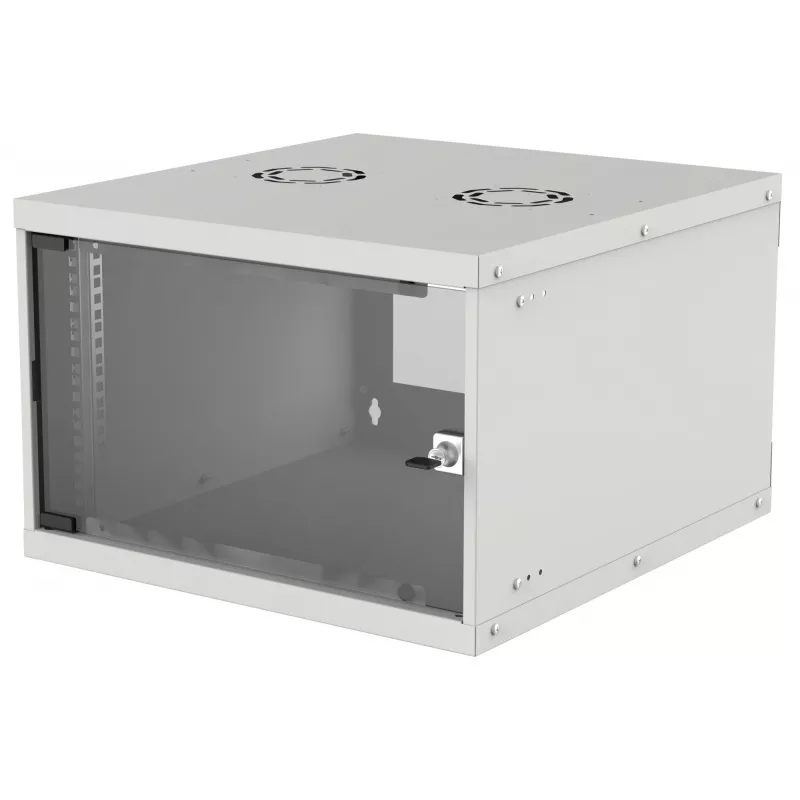

Rack de parede Intellinet 714150

The Intellinet Wall Mount Rack 714150 is a 6U wallmount cabinet designed to protect and organise 19" network equipment in small network rooms or office environments. Constructed from cold-rolled, galvanized steel with a reversible tempered-glass front door, the cabinet provides IP20-level protection while allowing visibility of installed devices. The grey cabinet has a usable depth suitable for common network devices and ships flatpacked for assembly.

Advantages

This 6U Intellinet wallmount cabinet combines a compact footprint with a usable depth of 340 mm and overall external dimensions that make it suitable for limited-space installations. The tempered-glass reversible door permits easy viewing and access, and the galvanized steel construction provides a durable enclosure rated to IP20. The unit supports up to 50 kg of installed equipment and is supplied with a three-year warranty.

Suitable for

• Mounting 19" switches, patch panels and small servers in home or small office racks
• Securing network equipment in wiring closets and comms cupboards
• Environments where a compact, wall-mounted cabinet is required

Key specifications

• Rack capacity: 6U
• Fits: 19" equipment
• Usable depth: 340 mm
• External width: 540 mm
• External depth: 400 mm
• External height: 353 mm
• Maximum load: 50 kg
• Weight: 8.91 kg
• Protection rating: IP20
• Colour: Grey

How to use

Unpack the flatpacked cabinet and assemble it following the included instructions. Secure the cabinet to a suitable load-bearing wall using appropriate fixings (not included). Install 19" equipment into the rack rails, observing the 6U capacity and maximum load of 50 kg. The tempered-glass door is reversible to allow left- or right-hand opening; ensure the hinge orientation is set before final mounting.

Recommendations

Mount the cabinet to a solid, load-bearing surface and distribute installed equipment weight evenly across the rack rails. Allow clearance for ventilation and cable routing; avoid placing units in areas exposed to water or heavy dust to maintain the IP20 protection rating.
