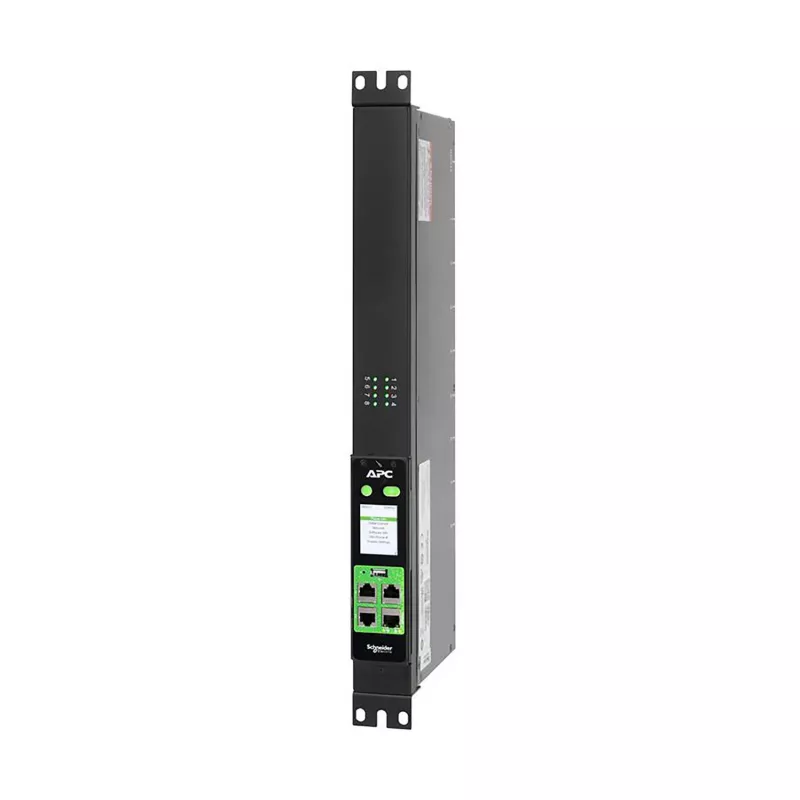

Rack PDU APC EPDU2016S 1U, 16A 230V, 8x saídas C13

Schneider Easy Switched Rack PDU EPDU1016S is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip. EPDU2016S has IEC 320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment) Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Connect and manage multiple PDUs from one IP address to simplify and speed deployment while saving the cost required in having a dedicated network connection for each PDU Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. The green packaging includes cable, installation guide and horizontal mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +50°C temperation range and comes with 1 year of standard warranty. The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

APC Easy PDU Switched 1U 16A 230V (8)C13. PDU types: Switched, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Compliance certificates: CE, UKCA. Width: 482 mm, Depth: 150 mm, Height: 44 mm

How to use

Install the APC EPDU2016S into a free 1U space in a 19-inch rack using the supplied mounting hardware or appropriate rack brackets. Connect the unit’s input plug to a compatible 230V, 16A mains source or a UPS output rated for the same voltage and current. Plug servers, switches and other IEC C13-equipped devices into the eight outlets, ensuring the total load does not exceed the unit’s 16A capacity. Route and secure power cords to maintain airflow and avoid cable strain. Periodically inspect connections for tightness and signs of wear.

Recommendations

Place the PDU on a rack shelf level that allows easy access to outlets for maintenance; avoid overloading by calculating cumulative device current draw and leave margin for peak loads. Use the PDU with properly rated upstream protection and a grounded supply. For installations in high-availability environments, distribute critical loads across separate PDUs or UPS circuits to reduce single-point failures.
