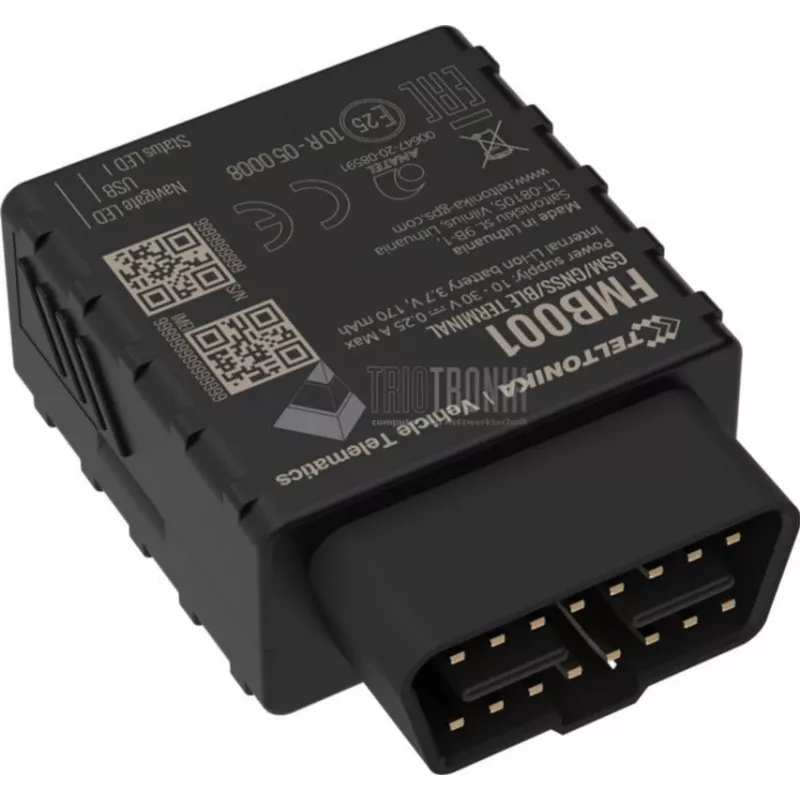

Rastreador GPS Teltonika FMB001 automóvel preto

The Teltonika FMB001 Car Black is a compact OBDII plug-and-play GPS tracker designed for light vehicle tracking. Housed in a durable black casing with resistance to cold and dust, it integrates GNSS, GSM and Bluetooth connectivity to provide location, movement and basic vehicle data. The device includes 0.128 GB of internal memory for local data storage and is powered by a 3.7 V Lithium‑Ion battery with up to 4 hours of autonomy. With a lightweight construction of 63 g and small dimensions, the FMB001 is intended for quick installation and reliable operation in courier delivery, car rental and insurance telematics use cases.

Advantages

The FMB001 offers plug-and-play installation through the OBDII interface, enabling immediate connection to most passenger cars without additional wiring. Built-in GNSS and GSM modules provide continuous positioning and mobile communication, while Bluetooth allows local configuration, firmware updates and accessory connectivity. The device supports reading of OBDII data from the vehicle on-board computer, and it accepts external temperature and humidity sensors for extended monitoring. Its compact size and low weight simplify mounting and concealment.

Suitable for

• Courier and delivery vehicle location monitoring
• Car rental and leasing fleet tracking
• Insurance telematics and basic driving behaviour analysis
• Light commercial vehicles requiring quick OBDII installation
• Applications that need Bluetooth configuration or sensor integration

Key specifications

• Connectivity: GNSS (satellite positioning), GSM (mobile communication), Bluetooth
• Power: 3.7 V Lithium‑Ion internal battery, up to 4 hours operating life
• Memory: 0.128 GB internal storage for trip and event data
• Form factor: OBDII plug-and-play interface for direct connection to vehicle port
• Environmental resistance: cold and dust resistant casing
• Weight and dimensions: approximately 63 g; width 50.7 mm, depth 49.6 mm
• Sensor support: compatible with external temperature and humidity sensors
• Additional functions: hands-free support, firmware and configuration update via Bluetooth, OBDII data reading

How to use

Plug the FMB001 into the vehicle’s OBDII socket and ensure the connector is fully seated. The device will draw power from the vehicle and begin GNSS and GSM registration; the internal battery provides temporary autonomy when the vehicle ignition is off. Use a compatible mobile application or configuration tool via Bluetooth to set reporting intervals, server settings and sensor parameters. Verify that the device successfully transmits location and OBDII data to your chosen tracking platform before regular operation.

Recommendations

Install the tracker in the OBDII port location recommended by the vehicle manufacturer and avoid obstructing air vents or moving parts. For reliable remote monitoring, confirm GSM network coverage in your area and periodically check for available firmware updates via Bluetooth. When using external temperature or humidity sensors, follow sensor placement guidelines to avoid exposure to direct sunlight or water ingress. For long-term storage without vehicle power, fully charge the device according to the manufacturer instructions to preserve battery health.
