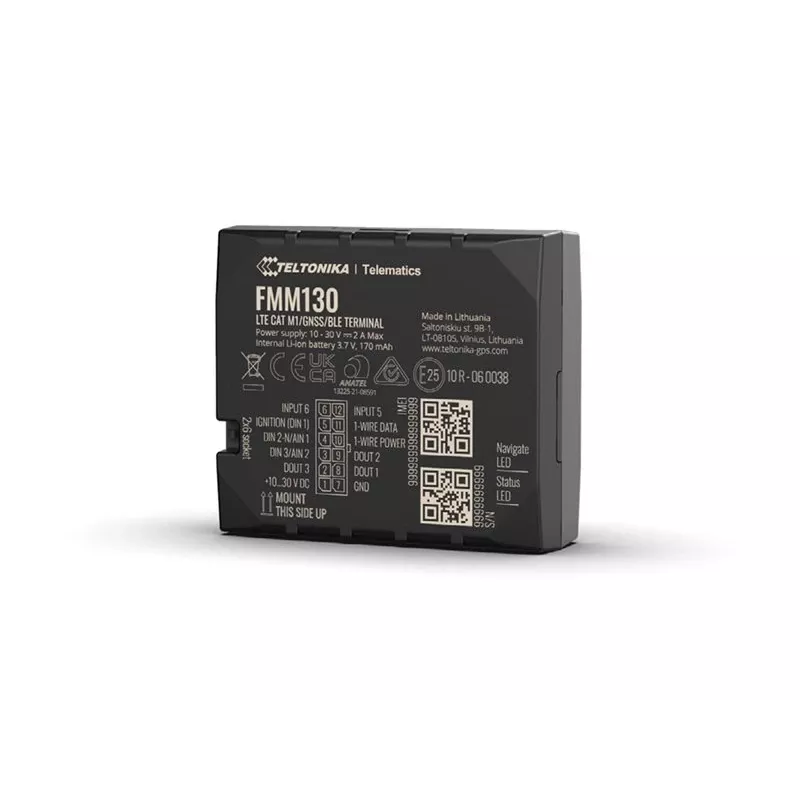

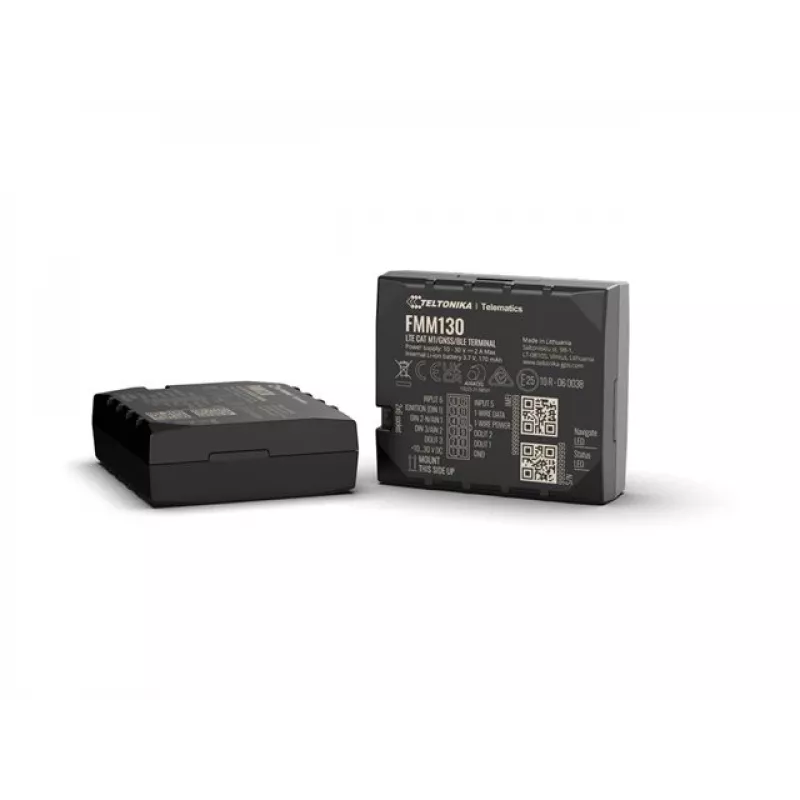

Teltonika FMM130 Rastreador GPS

The Teltonika FMM130 Sort is a compact and versatile GPS tracker designed for fleet management, asset tracking, and vehicle monitoring. With robust LTE Cat 1 and GSM connectivity, it ensures reliable real-time location data. Its advanced GNSS support and Bluetooth 4.0 LE enable precise positioning and short-range communication.

Advantages

This tracker offers a wide input voltage range (10-30 V DC), making it suitable for various vehicles. It features 3 digital inputs, 2 digital outputs, and 2 analog inputs for flexible integration. The internal 170 mAh Li-Ion battery provides backup power, while the accelerometer detects motion and impacts. Sleep modes (GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep) optimize power consumption.

Suitable for

• Fleet management and telematics
• Vehicle tracking (cars, trucks, motorcycles)
• Asset tracking for containers, trailers, and equipment
• Personal and micromobility tracking

Key specifications

• Network: LTE Cat 1, GSM
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, A-GPS
• Bluetooth: 4.0 LE
• Internal Battery: 170 mAh Li-Ion
• Input Voltage: 10-30 V DC
• Digital Inputs: 3 (1 for ignition)
• Digital Outputs: 2
• Analog Inputs: 2
• 1-Wire Interface: Yes (iButton, temperature sensors)
• Accelerometer: Yes
• Internal Memory: 128 MB
• Operating Temperature: -40 °C to +85 °C
• Protection Rating: IP41
• Antennas: Internal GNSS, Internal LTE
• SIM Card: Micro-SIM
• Data Protocols: TCP/IP, UDP/IP
• Configuration: USB, Bluetooth, FOTA Web, FOTA
• Sleep Modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• LED Indicators: 2 status LEDs
• Certifications: CE, E-Mark, EAC, RoHS, REACH

Recommendations

For optimal performance, use a high-quality Micro-SIM with a data plan. Ensure proper installation and antenna placement for best GNSS and LTE reception. The device supports FOTA updates for easy firmware upgrades.
