Régua de tomadas Bachmann 946.100 2 x tipo F preta instalação em secretária

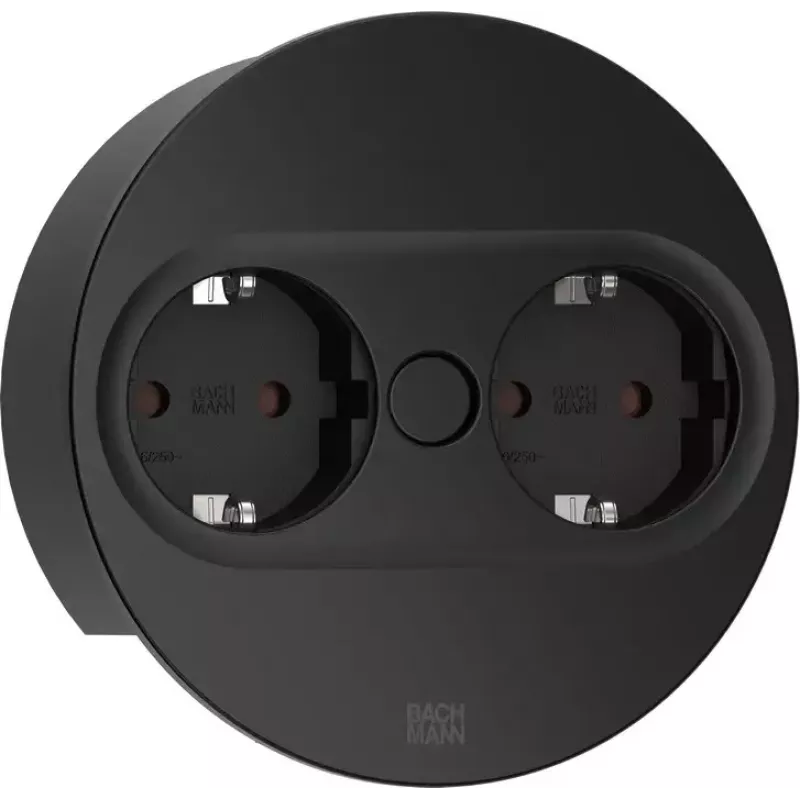

The Bachmann 946.100 is a compact desktop embedded socket outlet with two Type F sockets and a sleek black finish. Designed for installation in desks or kitchen worktops up to 40 mm thick, it offers a low mounting depth (approximately 42.5 mm height) and integrated power cable routing close to the housing. The unit combines metal and plastic construction, an anti-fingerprint coating on the cover, and a removable lid for easier cleaning. A square design option and fast charging via an available 22 W USB A/C charger are features of the TWIST 2 series.

Advantages

The device provides a space-saving solution for offices, kitchens and living rooms thanks to its compact dimensions (115 x 115 mm footprint) and low mounting depth. Operation is convenient: the TWIST 2 can open automatically at the push of a button while the cover can be closed manually and securely. Durable metal and plastic materials, along with an anti-fingerprint surface, reduce visible marks and simplify maintenance. The removable cover further facilitates cleaning.

Suitable for

• Integration into desks and worktops with a thickness up to 40 mm
• Office workstations and meeting tables
• Kitchen islands and counters
• Living room media furniture where a compact embedded socket is required

Key specifications

• Model: Bachmann 946.100 (TWIST 2 series)
• Sockets: 2 x Type F (Schuko)
• Dimensions: 115 mm × 115 mm footprint, 42.5 mm height (mounting depth around 40 mm)
• Material: metal and plastic
• Finish: black with anti-fingerprint coating
• Ingress protection: IP20 (indoor use only)
• Installation: for desktop/worktop embedding up to 40 mm thickness
• Additional features: removable cover; option for 22 W USB A/C charger in TWIST 2 variants
• MPN: 946.100; EAN: 4057298129179

How to use

Cut a matching opening in the desk or worktop according to the product dimensions and insert the Bachmann 946.100 so the housing sits flush with the surface. Route the power cable as required and secure the unit following the manufacturer’s installation instructions. Press the button to open the TWIST 2 cover; plug electrical devices into the two Type F sockets. After use, close the cover manually to protect the sockets and maintain a tidy surface. If present, use the removable cover for cleaning by detaching it according to the instructions and wiping with a damp cloth; ensure the unit is disconnected from power before cleaning.

Recommendations

Use the Bachmann 946.100 only indoors and avoid exposure to moisture. Ensure the worktop thickness does not exceed 40 mm and observe local electrical installation regulations during mounting. Do not exceed the rated current for connected devices; for variants with a USB A/C charger, check the charger’s output specifications before connecting sensitive electronics.
