Repetidor de vídeo HDMI ATEN com desincorporador de áudio

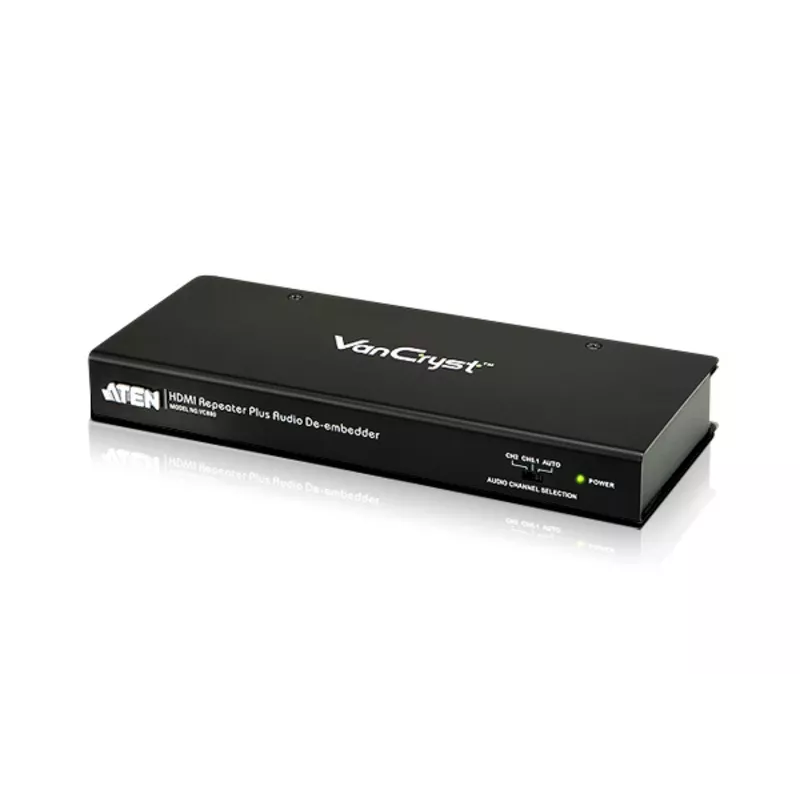

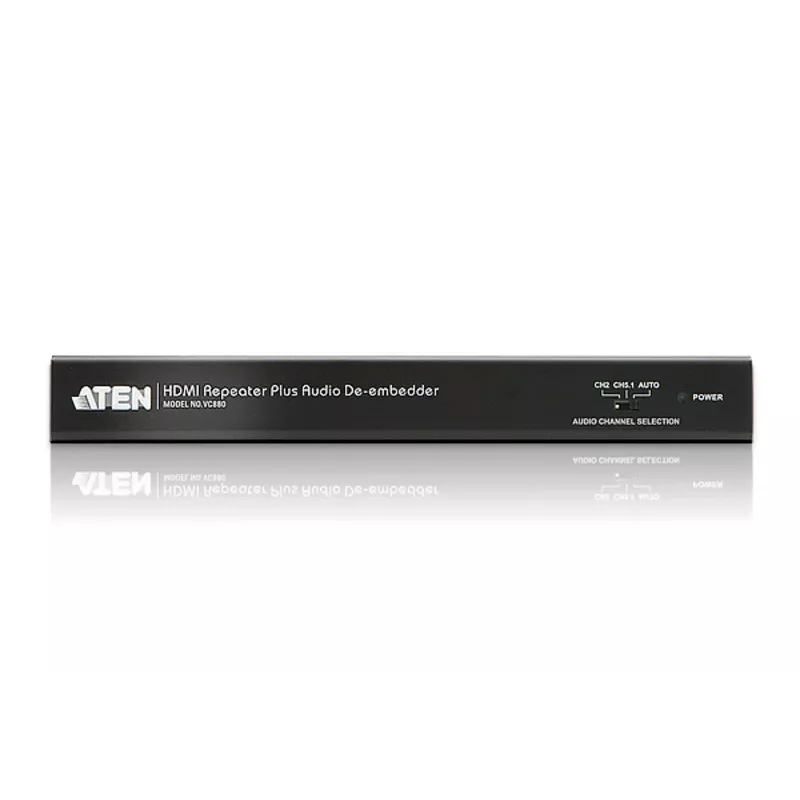

The ATEN VC880-AT-G is an HDMI repeater with an integrated audio de-embedder that extracts and converts audio from the HDMI input. It repeats HDMI video and audio while providing an additional audio output selection: analog stereo via RCA or digital audio via optical (TOSLINK) or coaxial connectors. The unit supports 3D formats, provides up to 1920 x 1080 resolution, and can extend HDMI signals up to 15 m. Its compact black housing and low power consumption make it suitable for installation with TVs, projectors, A/V receivers or speakers.

Advantages

The VC880-AT-G combines HDMI signal repeating with audio de-embedding in a single compact device, allowing simultaneous HDMI output and separate analog or digital audio output. It supports Full HD 1080p resolution and 3D formats, extends HDMI transmission up to 15 m, and offers simple connectivity with one HDMI input, one HDMI output and multiple audio output options. The product’s small footprint and typical power draw of 2.25 W facilitate integration into professional and home AV setups.

Suitable for

• Connecting sources (Blu-ray players, set-top boxes, PCs) to displays while routing audio to external amplifiers or speakers
• Setups where separate analog (RCA) or digital (optical/coaxial) audio outputs are required
• AV installations needing signal extension up to 15 m at Full HD resolution

Key specifications

• Brand: ATEN, Model: VC880-AT-G (MPN VC880-AT-G)
• HDMI inputs: 1; HDMI outputs: 1

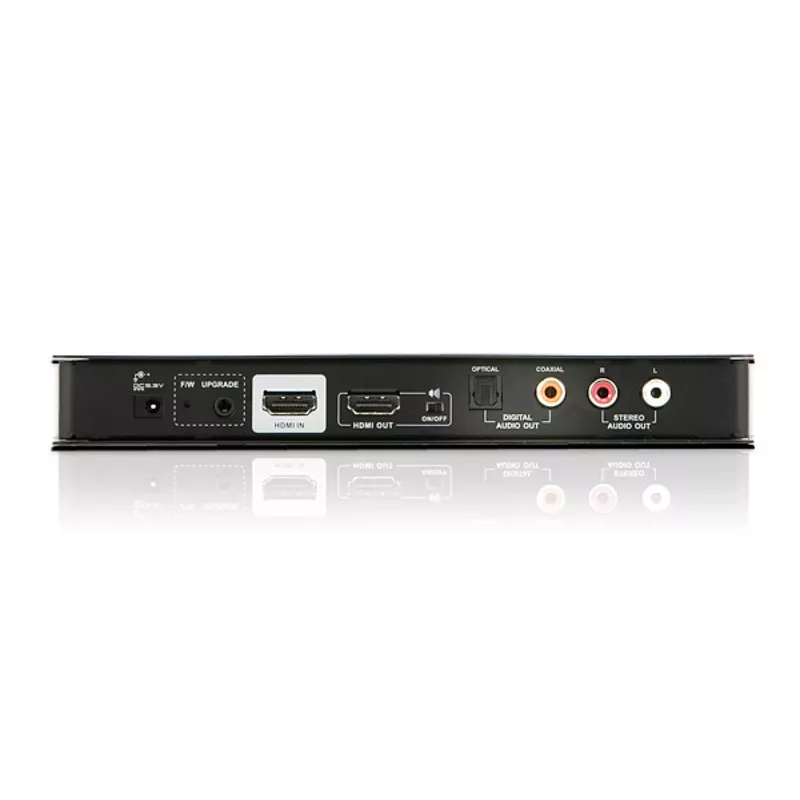

• Audio outputs: analog stereo (RCA), optical (TOSLINK), coaxial
• Maximum resolution: 1920 x 1080; 3D format support
• Maximum transfer distance: 15 m
• Power: 5.3 V input, typical consumption 2.25 W; Power adapter included
• Colour: Black; Weight: 0.52 kg; Dimensions: 200 x 82 x 25 mm

How to use

Connect the HDMI source to the VC880 HDMI input and connect the HDMI output to your display. Select and connect the preferred audio output: RCA for analog stereo or optical/coaxial for digital audio to an external amplifier, receiver or speaker system. Power the unit with the supplied adapter and confirm signal lock on the display. The device will repeat the HDMI video/audio signal while simultaneously providing the de-embedded audio on the chosen output.

Recommendations

For best results use HDMI cables rated for 1080p and keep cable runs under the specified 15 m to maintain signal integrity. When using digital audio outputs, verify your receiver or speaker supports the selected format.
