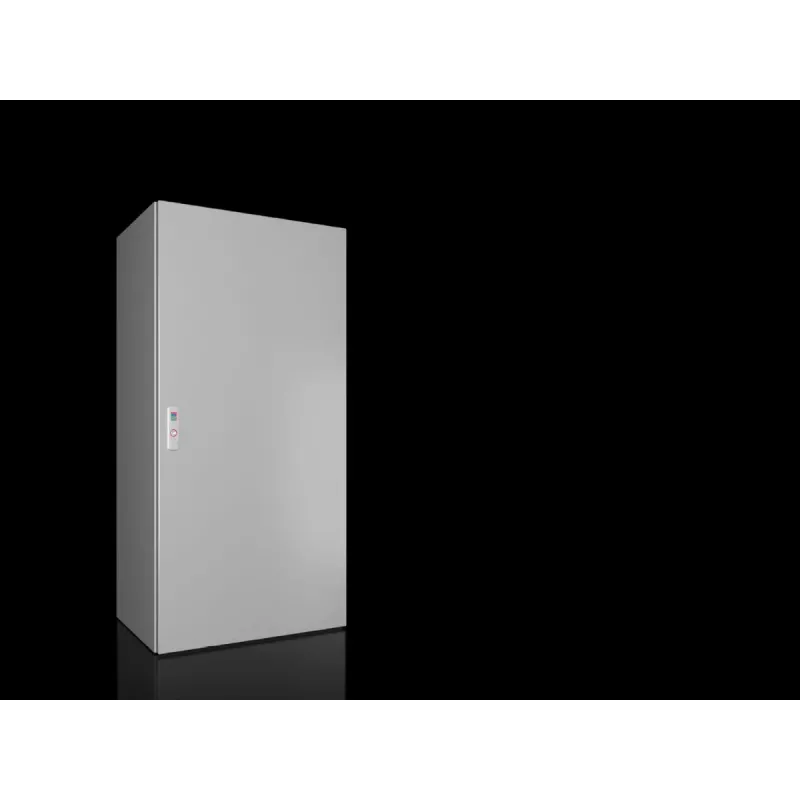

Rittal AX 1261.000 Caixa de Quadro Elétrico Compacta 600 x 1200 x 400 mm, Chapa de Aço, Cinzento Claro

Industrial electricians and panel builders use the Rittal AX 1261.000 as a robust wall-mount enclosure for housing controls, terminals, and sensitive electronics in workshops and production lines. Its compact footprint and high protection rating make it a reliable choice for demanding environments.

Key specifications

• External dimensions: 600 x 1200 x 400 mm
• Material: sheet steel
• Colour: light grey (RAL 7035)
• Protection rating: IP66 and NEMA 4
• Impact protection: IK10
• Single door, right-hinged, opening angle 130°
• Cam lock with 3 mm double-bit
• Mounting plate included, zinc-plated, depth-adjustable in 25 mm increments
• Gland plate included
• Surface finish: dip-primed, powder-coated, textured paint
• Material thickness: enclosure 1.25 mm, door 1.5 mm, mounting plate 2.5 mm

Why choose it

The AX 1261.000 combines a compact design with high protection and impact resistance. Its steel construction and powder-coated finish withstand harsh industrial conditions, while the included mounting plate simplifies component installation.

Ideal use cases

• Machine control enclosures
• Distribution and junction boxes
• Protection of electrical and electronic components in dusty or wet environments

Good to know

The enclosure is part of the Rittal AX series, known for modular accessories and efficient installation. The cam lock provides secure closure, and the gland plate allows for cable entry without additional machining.
