RITTAL AX caixa compacta 600x760x350mm IP66 NEMA 4/12, chapa de aço, RAL 7035 1376000

IP66-rated protection in a compact wall-mount enclosure: the RITTAL AX 1376000 keeps electrical and control components safe from dust, water jets and impact (IK10).

Overview

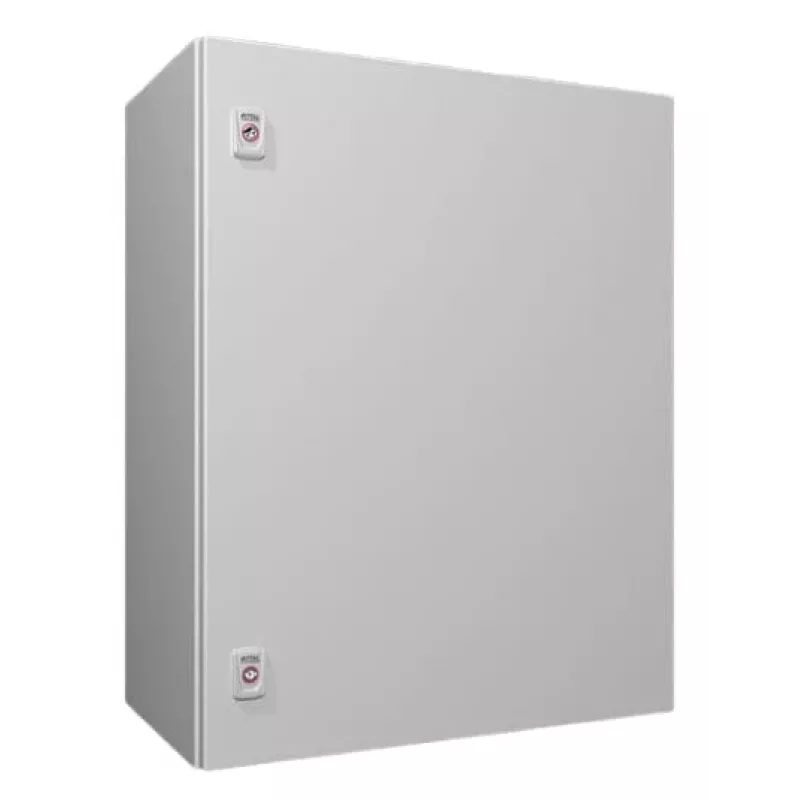

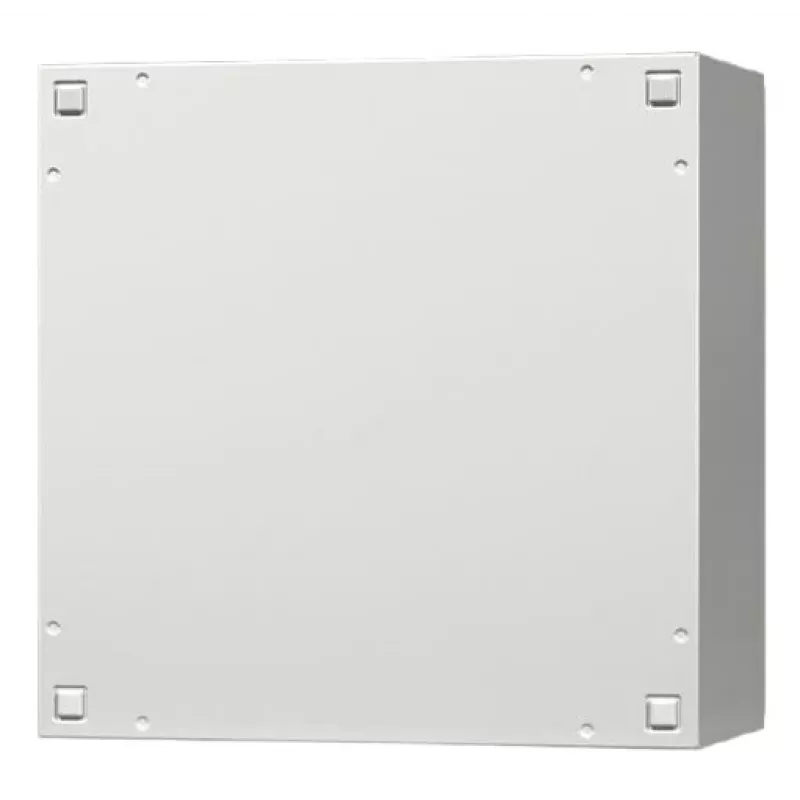

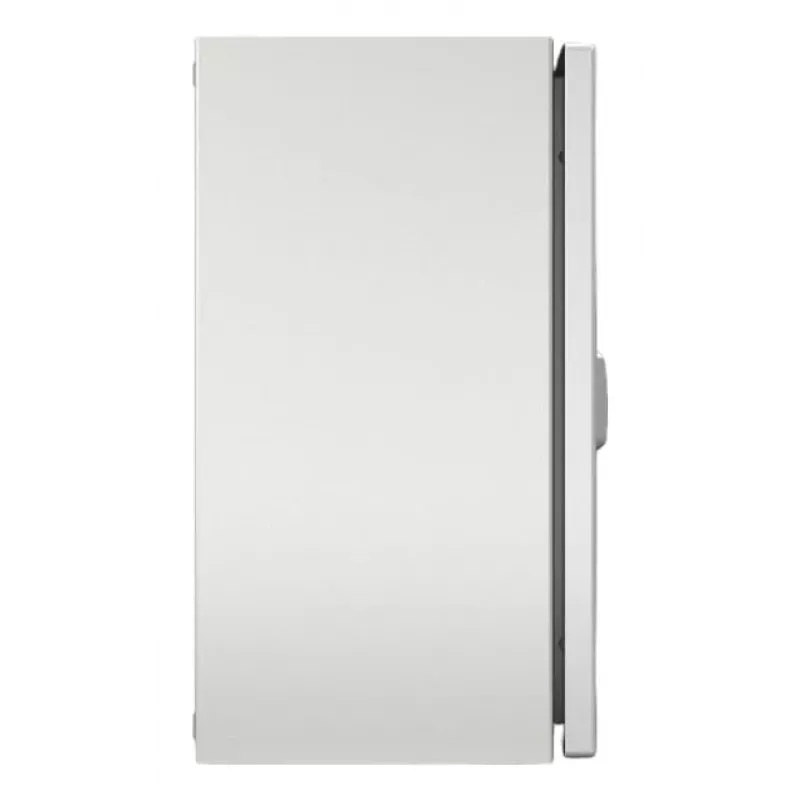

The RITTAL AX compact enclosure measures 600 x 760 x 350 mm (W x H x D) and is made from sheet steel. It features a single door with a cam lock and 3 mm double-bit insert. The door hinge is on the right and can be swapped to the left. The door opens 130°.

What stands out

• IP66 and NEMA 4/12 protection against dust and water.
• IK10 impact resistance for demanding environments.

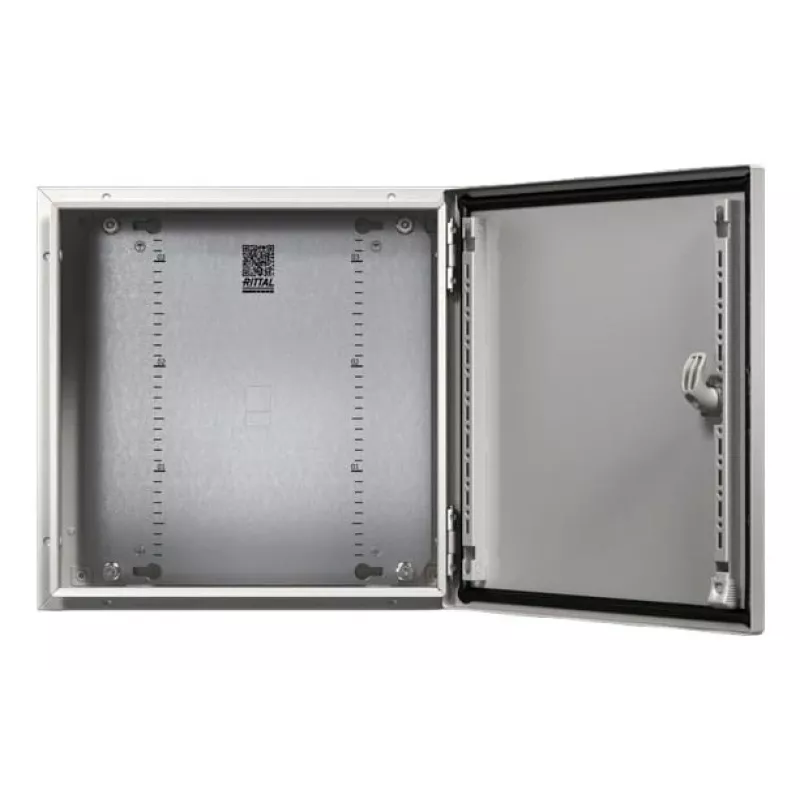

• Includes a zinc-plated, depth-adjustable mounting plate.
• Multi-piece gland plate for easy cable entry.
• Surface finish: dip-primed, exterior powder-coated in RAL 7035 light grey.

Technical details

• Material: sheet steel; enclosure 1.25 mm, door 1.5 mm, mounting plate 2.5 mm.
• Max. rated operating voltage: 1000 V AC/DC.
• Approvals: UL, cUL, TÜV, EAC, GL, RINA, DNV, ABS, BV, VDE.
• Mounting type: wall-mounted.

Our verdict

A robust, certified enclosure for industrial control and distribution, with flexible mounting and easy cable management.
