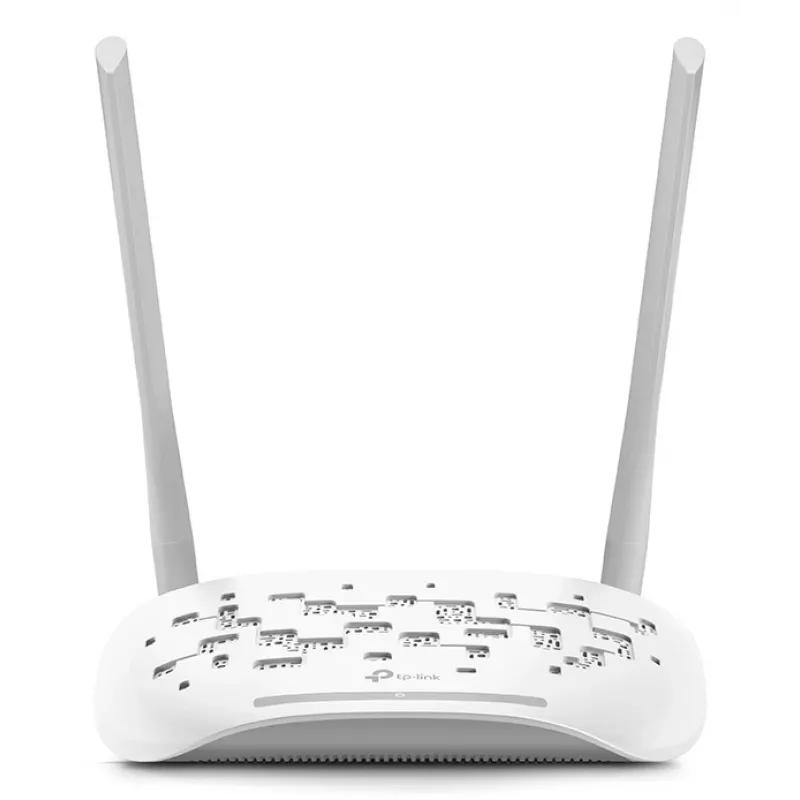

Router de mesa TP-Link TD-W9960 Single-Band 2,4 GHz Wi-Fi 4

The TD-W9960 is a 300Mbps Wireless N VDSL/ADSL modem router designed for home use. It combines VDSL2 compatibility with ADSL standards and an integrated DSL port to work with most ISPs, delivering up to 100Mbps in both upstream and downstream on VDSL2 lines. The device provides 2.4GHz wireless speeds up to 300Mbps and four Ethernet LAN ports for reliable wired connections.

Advantages

The modem router supports multiple DSL standards (VDSL2, ADSL2+, ADSL2, ADSL) for broad ISP compatibility and offers simultaneous upstream and downstream VDSL2 performance. Two high-gain 5dBi external antennas increase Wi‑Fi coverage, while built-in 6kV lightning protection reduces the risk of electrical damage. The device includes parental controls, a guest network option and can be managed via a web interface or the Tether app on Android and iOS devices.

Key specifications

• Model: TD-W9960
• Wireless: 2.4GHz, up to 300Mbps (Wireless N)
• DSL compatibility: VDSL2, ADSL2+, ADSL2, ADSL
• VDSL2 speed: up to 100Mbps upstream and downstream

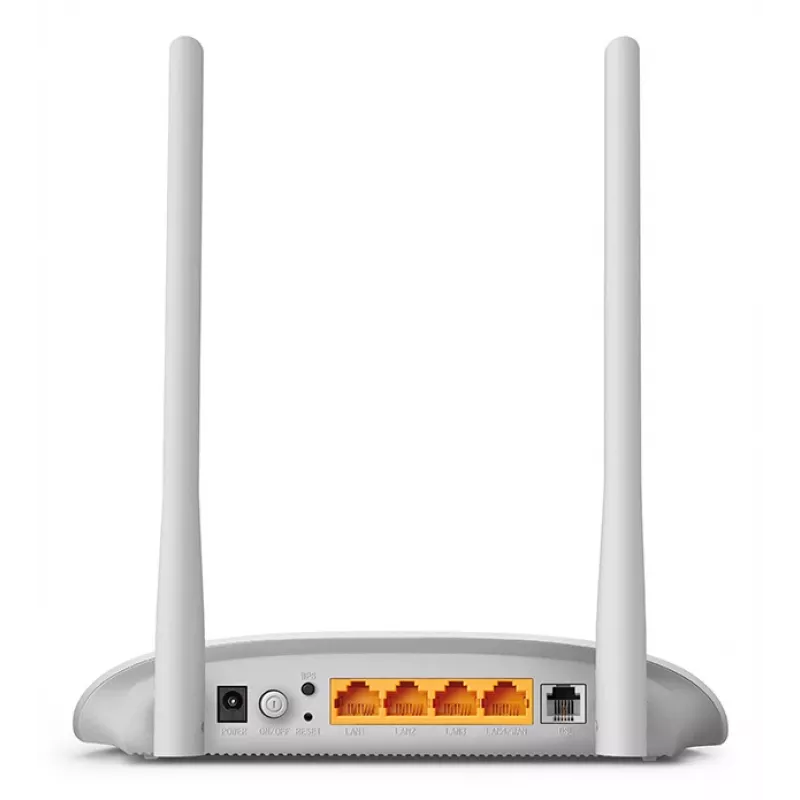

• LAN ports: 4 × 10/100 Mbps
• Antennas: 2 × external 5dBi
• Protection: 6kV lightning protection
• Management: Web interface and Tether app (Android/iOS)

How to use

Connect the TD-W9960 to your DSL line using the integrated DSL port, then power on the device and connect a computer or smartphone to the router via Wi‑Fi or an Ethernet cable. Open the web interface or the Tether app to run the quick setup wizard, enter the ISP credentials if required, and configure wireless SSID and password. Enable Parental Controls or create a Guest Network as needed through the management interface.

Recommendations

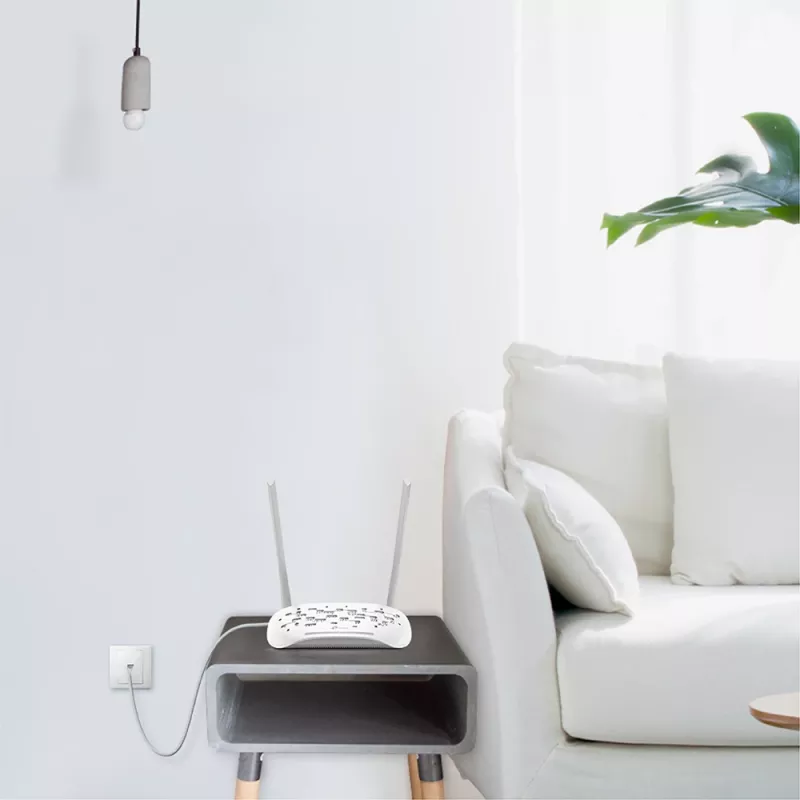

Place the router centrally in the home and elevate it where possible to improve signal coverage. Keep firmware up to date via the web interface to ensure security and stability. If your ISP uses a specific connection type, confirm compatibility before setup.
