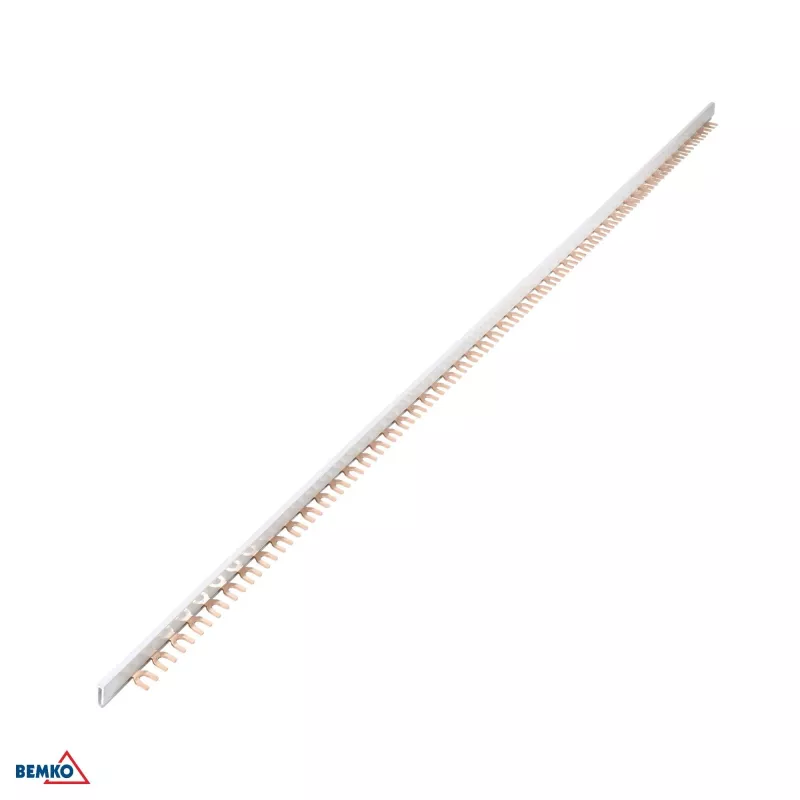

SCHELINGER A19-BBM-1F barramento de ligação monofásico tipo U 10mm² 54 módulos 63A cinzento

The SCHELINGER A19-BBM-1F is a high-quality single-phase connecting busbar designed for efficient and reliable electrical distribution. With a U-type (fork) terminal and a conductor cross-section of 10 mm², this busbar is suitable for use in distribution boards and control cabinets. It supports up to 54 modules with an 18 mm pitch, making it ideal for compact installations. Rated at 63 A and 230/400 V AC, it complies with EN 60947-7-1 standards. The busbar is made of copper with self-extinguishing thermoplastic insulation, ensuring safety and durability. Its grey color and DIN rail compatibility allow for easy integration into existing systems.

Advantages

This busbar offers several benefits: high current capacity (63 A) for demanding applications, U-type terminals for secure and easy connections, and a compact design that saves space in electrical panels. The self-extinguishing insulation enhances safety, while the copper conductor ensures excellent conductivity and low resistance. The 54-module capacity provides flexibility for various circuit configurations.

Suitable for

• Distribution boards and sub-distribution boards
• Control cabinets and switchgear
• Industrial and commercial electrical installations
• Residential electrical panels requiring modular components

Key specifications

• Busbar Type: Connecting Busbar
• Phase Configuration: Single-Phase
• Terminal Type: U-Type (Fork)
• Conductor Cross-section: 10 mm²
• Number of Modules: 54
• Rated Current (In): 63 A
• Rated Voltage (Un): 230/400 V AC
• Conductor Material: Copper
• Insulation Material: Self-extinguishing Thermoplastic
• Mounting: DIN Rail Compatible
• Module Pitch: 18 mm
• Number of Poles: 1-Pole
• Compliance Standard: EN 60947-7-1
• Color: Grey
• Length: 972 mm

Recommendations

For optimal performance, ensure that the busbar is installed by a qualified electrician and that all connections are tightened to the manufacturer's specifications. Use appropriate end caps and covers to protect against accidental contact. This busbar is compatible with standard DIN rail accessories and modular devices.
