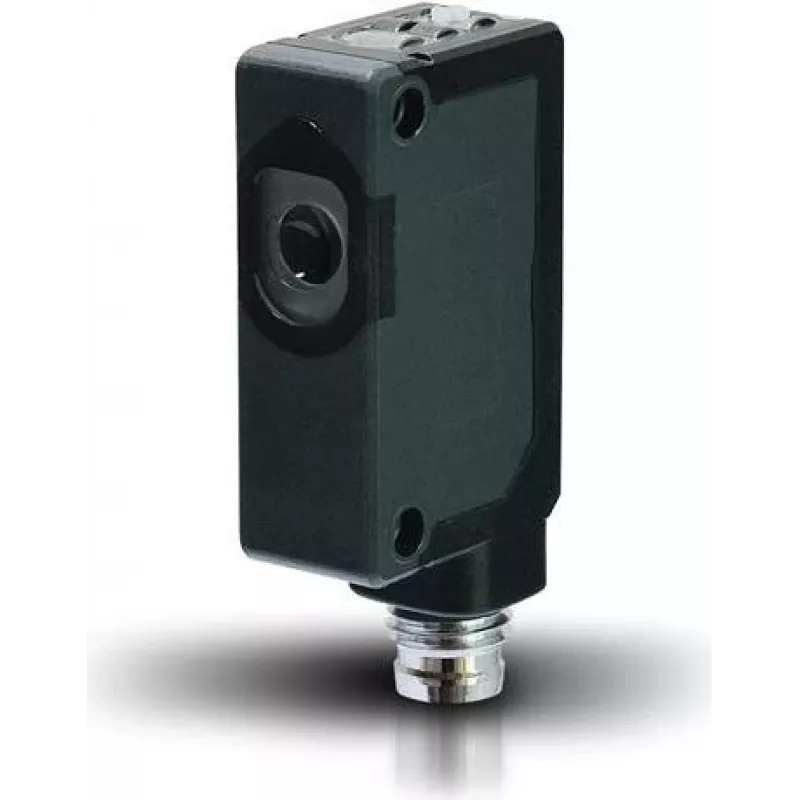

Sensor fotoelétrico Datalogic S3Z-PR-5-FG01-PD — preto, caixa de policarbonato, IP67, 11×31×19 mm

Datalogic S3Z-PR-5-FG01-PD is a compact photoelectric sensor in a black polycarbonate housing designed for object detection and presence sensing in industrial automation. The sensor measures 11×31×19 mm and offers IP67 protection, making it suitable for applications where space is limited and where dust- and water-resistant performance is required. The S3Z series combines a miniature global-standard enclosure with high performance, allowing replacement of larger sensors and providing precise detection in confined installations.

Advantages

The polycarbonate housing provides mechanical durability while keeping weight and size to a minimum. IP67 ingress protection ensures reliable operation in dusty or wet environments. The miniature footprint and standardized S3Z enclosure enable easy integration into tight spaces and existing mounting systems. High-performance sensing and laser emission options in the S3Z family deliver fast, accurate detection for small or moving targets.

Suitable for

• Object detection on conveyor lines with limited mounting space
• Presence sensing in packaging and assembly machines
• Small-part detection in automated inspection stations
• Industrial environments requiring dust- and water-resistant sensors

Key specifications

• Housing material: polycarbonate (PC)
• Color: black
• Protection rating: IP67 (dust-tight and protected against temporary immersion)
• Overall dimensions: 11 mm × 31 mm × 19 mm (W × D × H)
• Sensing type: photoelectric sensor (S3Z series performance class)
• Mounting: miniature standardized enclosure for confined spaces

How to use

Install the sensor into the mounting location that accommodates its 11×31×19 mm footprint and secure it according to machine frame or bracket specifications. Position the sensing face to face the target path at the correct distance for the chosen detection mode. Connect power and signal wiring following the machine’s electrical scheme and the manufacturer’s wiring diagram for the S3Z family. Verify alignment and perform functional tests to ensure consistent detection of the intended objects.

Recommendations

For reliable long-term operation, avoid mounting the sensor where mechanical shocks exceed the machine’s design limits and ensure connectors and cable entries are properly sealed to maintain IP67 protection. When detecting very small or fast-moving parts, choose the appropriate S3Z sensing configuration and verify detection during start-up and after maintenance.
