Patch Panel 1U S/CONN 75068

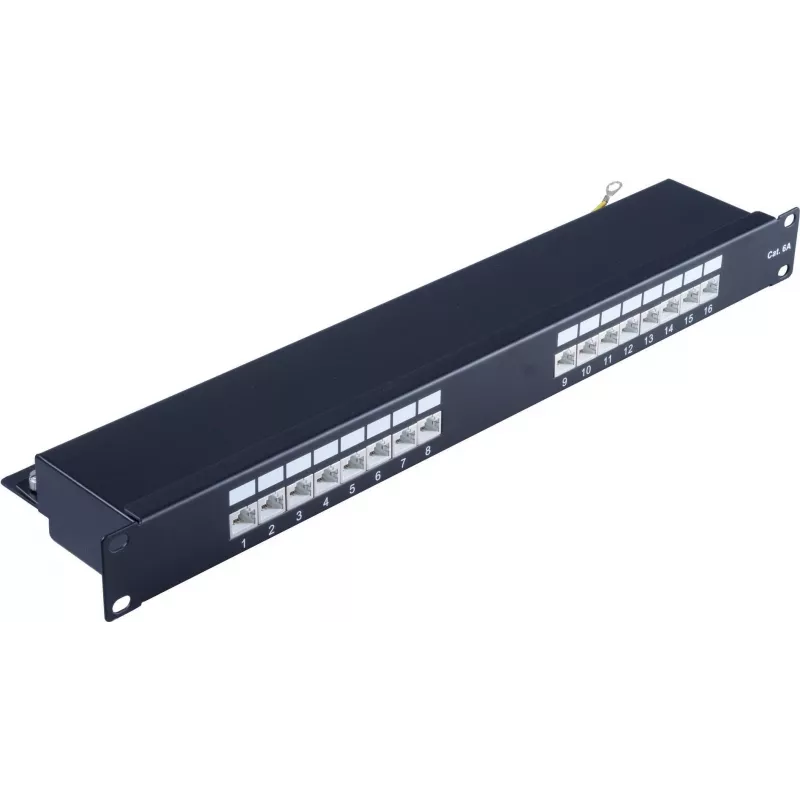

The ShiverPeaks Patch Panel 1U S/CONN 75068 is a rack-mounted networking component engineered for organized cable management and high-speed data transmission. Designed to occupy a single rack unit, this patch panel provides multiple RJ-45 ports compatible with Cat6a cabling and supports data rates up to 10000 Mbit/s. Its black metal faceplate and standardized 1U form factor allow straightforward integration into server racks, telecommunications cabinets, and structured cabling systems.

Advantages

This patch panel offers standardized RJ-45 connectivity for Cat6a networks, enabling reliable high-speed links and simplified reconfiguration of network endpoints. The 1U size conserves rack space while providing dense port accessibility for midsize and larger installations. A durable metal construction and a professional finish contribute to longer service life and maintainable cable routing for technicians during installation and maintenance.

Suitable for

• Structured Ethernet cabling in data centers and server rooms
• Office network distribution and patching closets
• Upgrading or expanding Cat6a network infrastructures
• Telecommunications racks and network equipment cabinets

Key specifications

• Form factor: 1U rack mount
• Connector type: RJ-45 ports
• Cable compatibility: Category 6a (Cat6a)
• Maximum data rate: 10000 Mbit/s
• Color: black
• Material: metal faceplate (rack-compatible)

How to use

Install the patch panel into a standard 19-inch rack occupying one unit of vertical space and secure it with appropriate rack screws. Terminate Cat6a cables to the rear IDC or punch-down points according to T568A or T568B wiring standards, then connect equipment via patch cords to the front RJ-45 ports. Label ports for clear identification and verify connections using a network tester to confirm continuity and performance up to the supported data rate.

Recommendations

For optimal performance, use Cat6a cabling and quality RJ-45 patch cords, maintain proper bend radius for cables, and follow standard grounding and rack installation practices. Periodically inspect terminations and labels to ensure reliable operation in professional network environments.
