Patch Panel S/CONN 75074

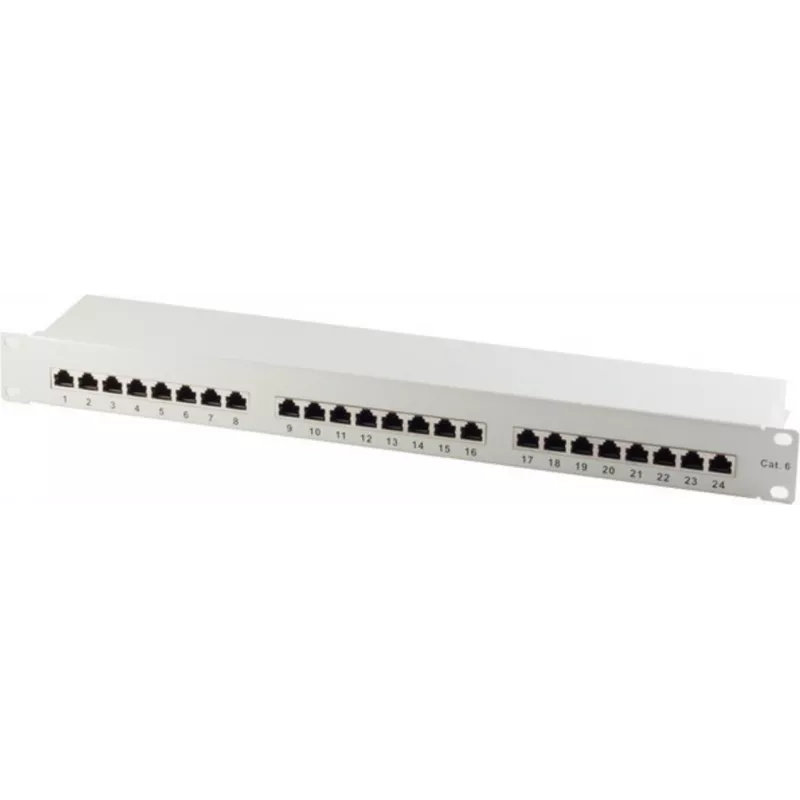

The ShiverPeaks Patch Panel S/CONN 75074 is a compact rack-mountable panel designed to organize and manage Ethernet cabling in server rooms, telecommunications closets, and network cabinets. It provides multiple RJ-45 connection points in a slim form factor, measuring 482 mm wide, 45 mm high and 130 mm deep. The panel’s grey finish offers a neutral appearance that integrates with standard rack equipment while keeping patching and cable routing accessible and orderly.

Advantages

The panel’s 19U rack compatibility and standardized RJ-45 connectors enable quick integration into existing infrastructure. Its compact dimensions reduce space consumption in full-height or shallow racks while providing sufficient depth for cable terminations and management. The durable construction and neutral colour provide a reliable, unobtrusive solution for structured cabling and point-to-point connections.

Suitable for

• Organizing Ethernet patching in server rooms and data cabinets
• Small to medium business network closets
• Telecommunications distribution frames and wiring panels
• Temporary or permanent rack installations where space is limited

Key specifications

• Connector type: RJ-45
• Rack compatibility: 19U mounting
• Width: 482 mm
• Height: 45 mm
• Depth: 130 mm
• Colour: Grey

How to use

Install the panel into a compatible 19U rack or cabinet using the standard mounting points. Terminate network cables on the RJ-45 ports following the appropriate wiring standard (T568A or T568B) and secure cable runs with ties or management accessories to prevent strain on the connectors. Label ports as needed to maintain traceability and simplify maintenance. Ensure the rack has adequate airflow and clearance to avoid overheating of nearby active equipment.

Recommendations

Use shielded or unshielded cabling consistent with your network design and grounding practices. Regularly inspect terminations and cable routing for wear or loosening, and document changes in the network layout to maintain reliable operation.
