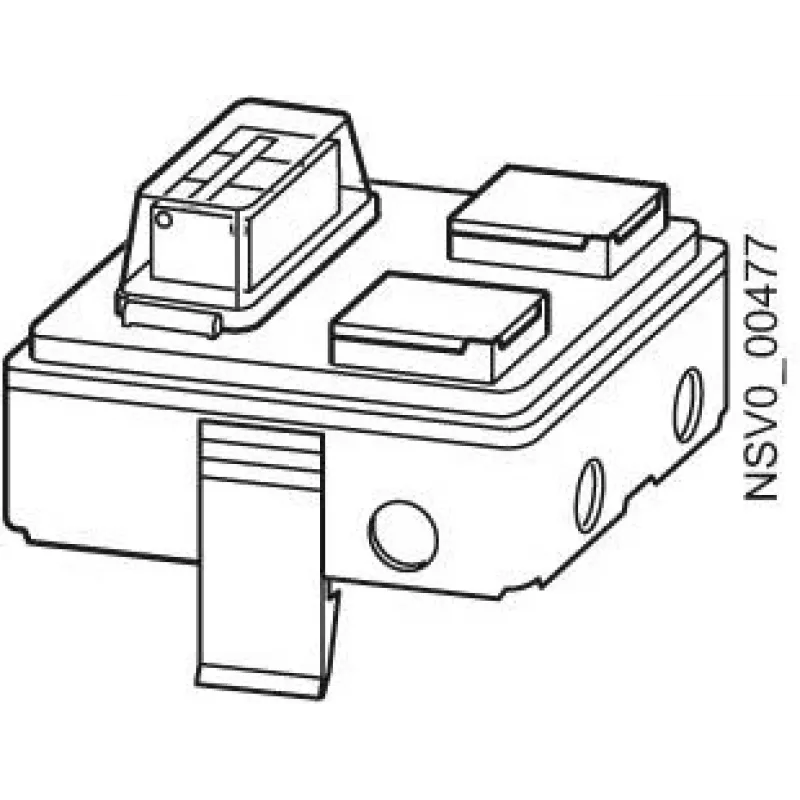

SIEMENS BD2-AK1/2SD163FIA Caixa de derivação 16A 2x1 polo com interruptor de carga com fusível (BVP:660870)

The BD2-AK1/2SD163FIA outgoing box integrates a 16 A fuse switch disconnector with D01 (NEOZED) fuse capability directly into the Siemens BD2 busbar trunking system. Its 2x1-pole configuration provides a compact solution for single outgoing circuits, eliminating the need for separate distribution enclosures.

Highlights

• 16 A rated current with D01 (NEOZED) fuse switch disconnector
• IP54 protection for dusty and damp environments
• Light grey polycarbonate housing (RAL 7035) for durability
• Mounts directly onto BD2 busbar trunking
• Operational voltage up to 690 V AC

In daily use

This outgoing box is suited for industrial and commercial installations where a fused outgoing circuit is required from a busbar trunking run. The screw terminals accept cables up to 6 mm², and the fuse switch disconnector allows safe isolation and protection of the outgoing circuit. The IP54 rating ensures reliable operation in environments with limited dust and water spray.

Full specifications

• Rated current: 16 A
• Number of poles (protection): 3-pole
• Protection device type: Fuse switch disconnector
• Fuse type: D01 (NEOZED)
• Fuse size: E14
• Enclosure protection rating: IP54
• Rated operational voltage (Ue): Up to 690 V AC
• Rated insulation voltage (Ui): 690 V AC
• Connection type: Screw terminals
• Housing material: Plastic (polycarbonate)
• Colour: Light grey (RAL 7035)
• Mounting: On busbar trunking
• Number of outgoing circuits: 1
• Short-circuit withstand capability: Up to 50 kA (with appropriate fuses)
• Operating temperature range: -25 to +55 °C
• Storage temperature range: -40 to +70 °C
• Standards: IEC 61439-2
• Cable cross-section (output): Up to 6 mm²

Final note

Designed for seamless integration with the Siemens BD2 busbar trunking system, this outgoing box provides a fused connection point in a compact, IP54-rated enclosure.
