Siemens SIRIUS ACT elemento frontal de botão de pressão, plástico, branco, 22 mm 3SU1000-0AA60-0AA0

Engineered for demanding industrial environments, this Siemens SIRIUS ACT front element offers a flat, white actuator with a black bezel, designed for 22 mm mounting holes. Its robust plastic construction and high protection ratings ensure reliable performance in harsh conditions.

Overview

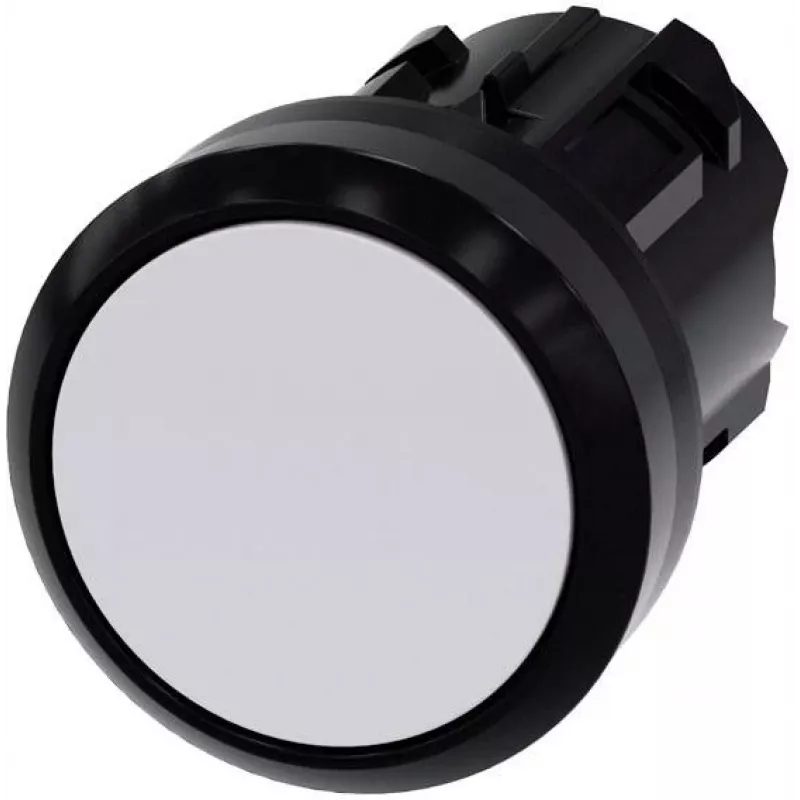

The Siemens SIRIUS ACT push button front element (3SU1000-0AA60-0AA0) is a momentary, non-latching control component. It features a round, flat button made of plastic, with a white actuator and black front bezel. The element is part of the SIRIUS ACT series, known for its modular design and ease of installation.

What stands out

• High protection class: IP66, IP67, IP69K for use in washdown and outdoor applications.
• Wide operating temperature range from -25°C to +70°C.
• Compliant with international standards including IEC 60947-5-1 and UL 508.
• Vibration and shock resistant for reliable operation in moving machinery.

Technical details

• Product type: Pushbutton front element
• Series: SIRIUS ACT
• Actuator type: Flat button
• Actuator color: White
• Actuator material: Plastic
• Operation type: Momentary (non-latching)
• Mounting diameter: 22 mm
• Shape of actuator: Round
• Front bezel material: Plastic
• Front bezel color: Black
• Protection class (front): IP66, IP67, IP69K
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Shock resistance: 10g / 11 ms (IEC 60068-2-27)
• Vibration resistance: 10-500 Hz: 5g (IEC 60068-2-6)
• Degree of pollution: 3 (IEC 60947-1)

Our verdict

A reliable and versatile front element for industrial push buttons, offering high protection and compliance with global standards.
