Spelsberg AK 36 quadro de distribuição pequeno 36 módulos IP65 IK08 cinzento

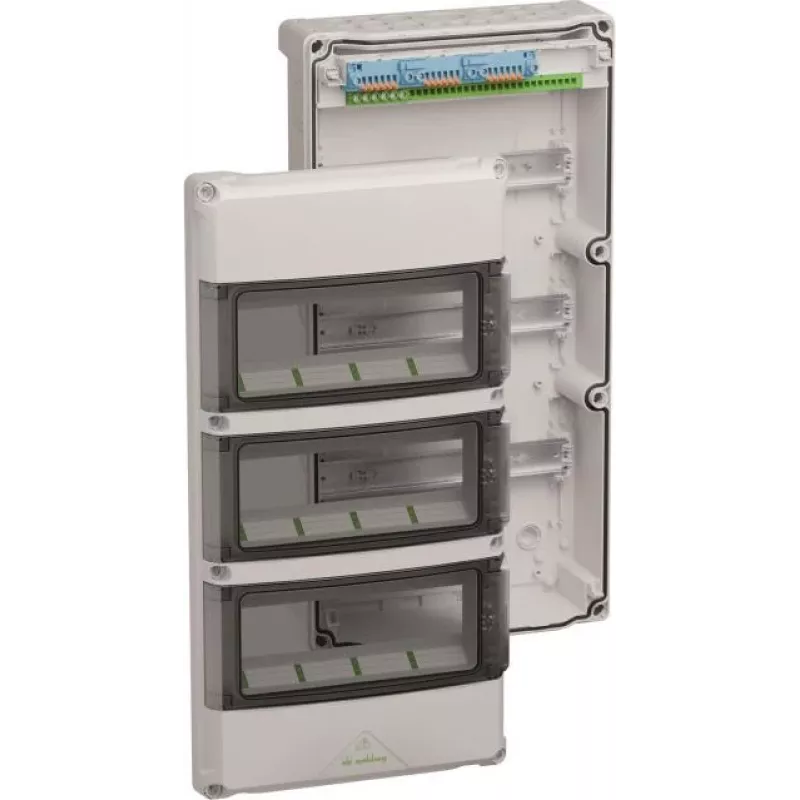

The Spelsberg AK 36 is a robust, surface-mounted distribution board designed for industrial and commercial electrical installations. With 36 module spaces across 3 rows, it offers ample capacity for circuit protection and control devices. The enclosure is made of high-quality polycarbonate (PC) in grey (RAL 7035), providing excellent impact resistance (IK08) and protection against dust and water ingress (IP65). The transparent hinged door allows easy visual inspection of the installed components.

Advantages

High protection class IP65 and impact resistance IK08 ensure reliable operation in harsh environments. The transparent door enables quick status checks without opening. Halogen-free materials enhance safety in case of fire. The board is sealable for tamper-proof installations.

Suitable for

• Industrial power distribution
• Commercial building installations
• Outdoor electrical enclosures
• Renewable energy systems

Key specifications

• Number of Modules: 36 TE
• Number of Rows: 3
• Protection Class: IP65
• Impact Resistance: IK08
• Mounting Type: Surface-mounted
• Enclosure Material: Polycarbonate (PC)
• Enclosure Colour: Grey (RAL 7035)
• Door Type: Transparent, hinged
• Rated Insulation Voltage: 1000 V AC / 1500 V DC
• Rated Operational Voltage: 400 V AC
• Rated Current: 125 A
• Glow Wire Test: 750 °C
• Operating Temperature Range: -35 °C to +80 °C
• Halogen-Free: Yes
• Terminal Blocks Included: PE/N terminals
• Cable Entry: Metric knockouts (M20, M25, M32, M40)
• Sealable: Yes
• Standards: DIN VDE 0603-1, EN 61439-3

Recommendations

For optimal performance, use with compatible Spelsberg accessories and ensure proper sealing of unused cable entries. Suitable for indoor and outdoor use where IP65 protection is required.
