Spelsberg GEOS-L 3040-18-to/sw caixa vazia 400 x 300 x 180 mm policarbonato preto com tampa transparente 74143401

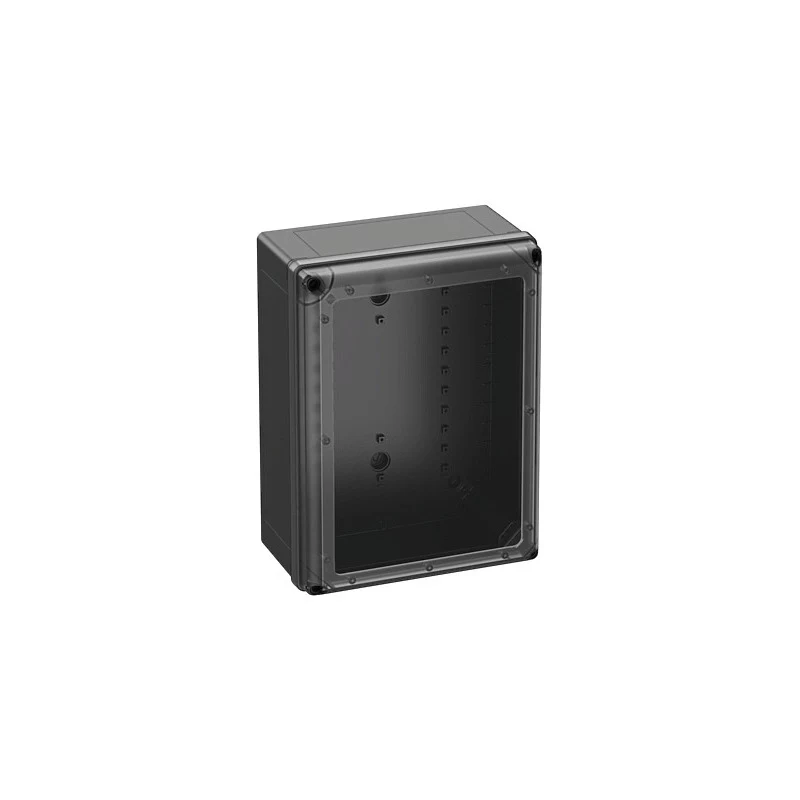

The GEOS-L 3040-18-to/sw stands out with its transparent lid, allowing quick visual inspection of installed components without opening the enclosure. This black polycarbonate housing measures 400 x 300 x 180 mm and is built for demanding environments.

Highlights

• Transparent lid for easy monitoring
• Robust polycarbonate body in black
• Generous internal space: 380 x 280 x 165 mm
• IP66 protection against dust and water
• Impact resistance IK08
• Halogen-free and UV-resistant
• Stainless steel lid screws
• Wide temperature range: -35 °C to +80 °C

In daily use

This empty enclosure is a versatile base for custom electrical installations. Its transparent lid simplifies inspections, while the polycarbonate construction ensures durability in industrial and outdoor settings. The enclosure can be wall-mounted or pole-mounted with appropriate accessories.

Full specifications

• Series: GEOS-L
• Material: Polycarbonate
• External dimensions (L x W x H): 400 x 300 x 180 mm
• Internal dimensions (L x W x H): 380 x 280 x 165 mm
• Base colour: Black
• Lid type: Transparent
• Protection class: IP66
• Impact resistance: IK08
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Operating temperature: -35 °C to +80 °C
• Glow wire test: 960 °C
• Halogen-free: Yes
• UV resistance: Yes
• Lid fasteners: Stainless steel screws
• Seal material: Polyurethane (PU)
• Mounting options: Wall mounting, pole mounting (with accessories)
• Standards: DIN EN 60670-1, DIN EN 60670-22
• Flammability rating: V-0 according to UL94
• Cable entries: None (user-defined)

Final note

The GEOS-L 3040-18-to/sw combines a transparent lid with a rugged black polycarbonate body, making it a practical choice for installations where both visibility and protection are required.
