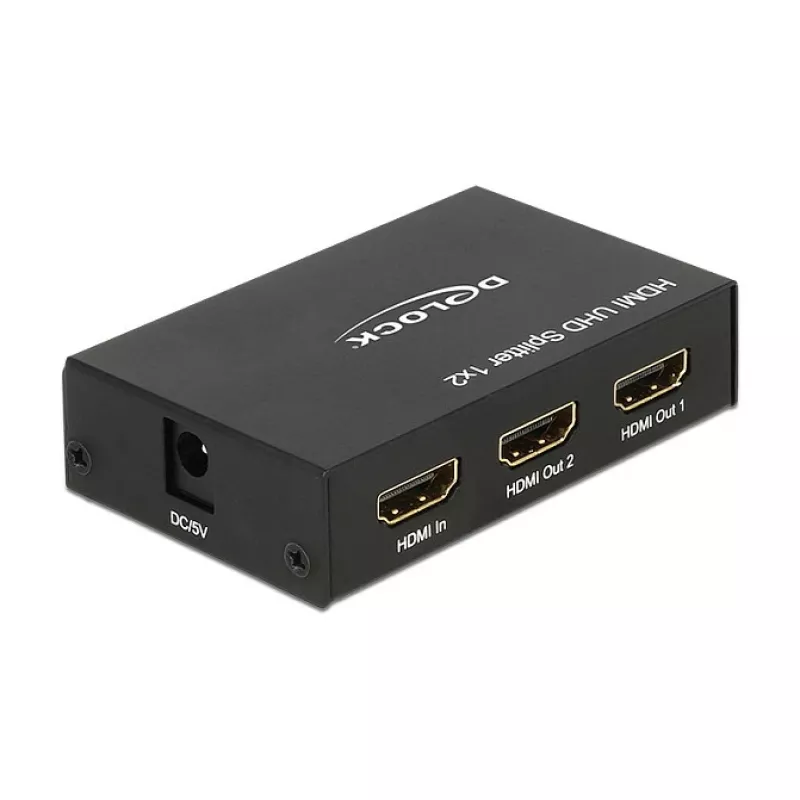

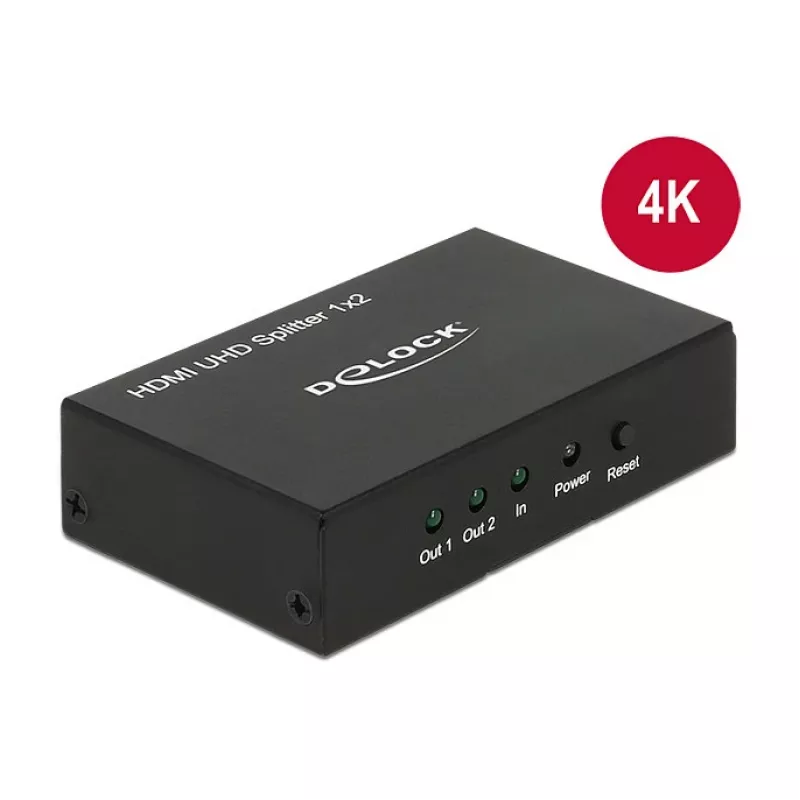

Splitter de vídeo DeLOCK 18682 HDMI 2x HDMI

The DeLOCK 18682 video splitter receives an HDMI signal from a PC, laptop or other HDMI source and duplicates it to two HDMI displays, allowing a single HDMI output to drive two monitors. The compact metal housing and support for up to 3840 x 2160 pixel resolution make the splitter suitable for setups that require high-resolution mirrored output while keeping a small footprint.

Advantages

This HDMI to 2x HDMI splitter supports Ultra HD resolution up to 3840 x 2160 for clear image reproduction. Its metal construction provides durability and a compact size (80 x 51 x 20 mm) simplifies installation in tight spaces. The device operates from a wide AC input range (100–240 V), making it usable in different regions without additional adapters.

Suitable for

• Mirroring the same HDMI output to two monitors or TVs
• Presentations from a PC or laptop to two displays
• Retail or exhibition displays showing identical content on multiple screens

Key specifications

• Brand: DELOCK
• Model: 18682
• Video port type: HDMI
• Number of video outputs: 2
• Maximum resolution: 3840 x 2160 pixels
• Input voltage: AC 100–240 V
• Colour: Black
• Dimensions: 80 x 51 x 20 mm
• EAN: 4043619186822

How to use

Connect the HDMI source (for example a PC or laptop) to the splitter’s input HDMI port. Then connect up to two HDMI displays to the splitter’s output ports. Plug the device into a compatible AC power outlet (100–240 V). After connections are made, power on the source and the displays; the splitter duplicates the HDMI signal so both connected displays show the same image.

Recommendations

For optimal performance use high-quality HDMI cables and ensure connected displays support the target resolution. If image issues occur, check cable connections, confirm the source’s output resolution is set within supported limits and try restarting the source and displays.
