Striebel & John campo de contadores 7RE 1Z1R BF17B11 pré-montado com BKE-I

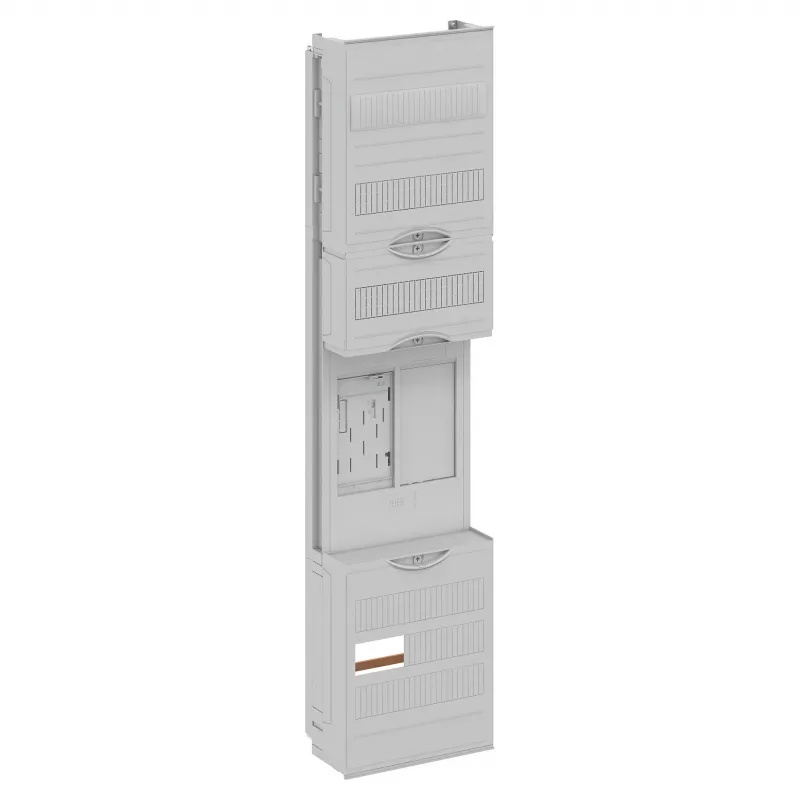

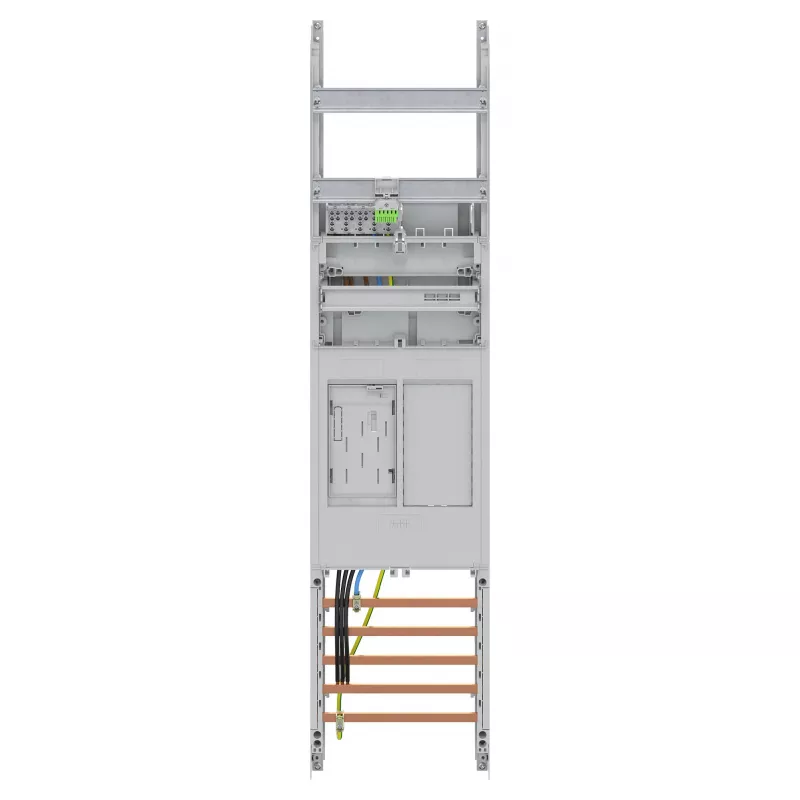

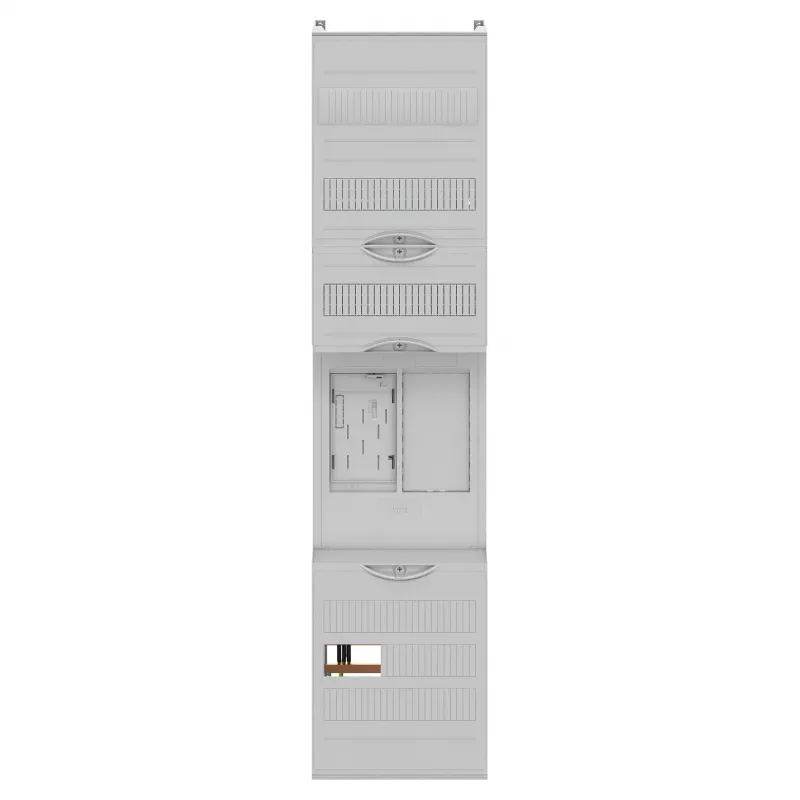

The Striebel & John Meter Field 7RE 1Z1R BF17B11 is a pre-wired meter panel designed for single-family homes. It features one eHZ meter place with BKE-I compatibility, one distribution row, and a 5-pole 10 mm² busbar system. Rated at 63 A and 230/400 V AC, it complies with DIN VDE 0603-1 and DIN 43870-1 standards.

Advantages

Pre-wired for quick installation; compact design saves space; robust galvanized steel construction ensures durability.

Suitable for

• Residential meter cabinets (A-series, U-series)
• Single-family home electrical distribution
• Integration with eHZ electronic household meters

Key specifications

• Product Type: Meter Field
• Number of Meter Places: 1 (eHZ)
• Number of Distribution Rows: 1
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Frequency: 50 Hz
• Busbar System: 5-pole, 10 mm²
• Main Terminal Block: HLA up to 25 mm²
• Distribution Field Modules: 12 TE
• Protection Class: IP2XC (in cabinet)
• Material: Galvanized sheet steel
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Recommendations

For optimal performance, install in a suitable Striebel & John meter cabinet. Ensure compliance with local electrical regulations.
