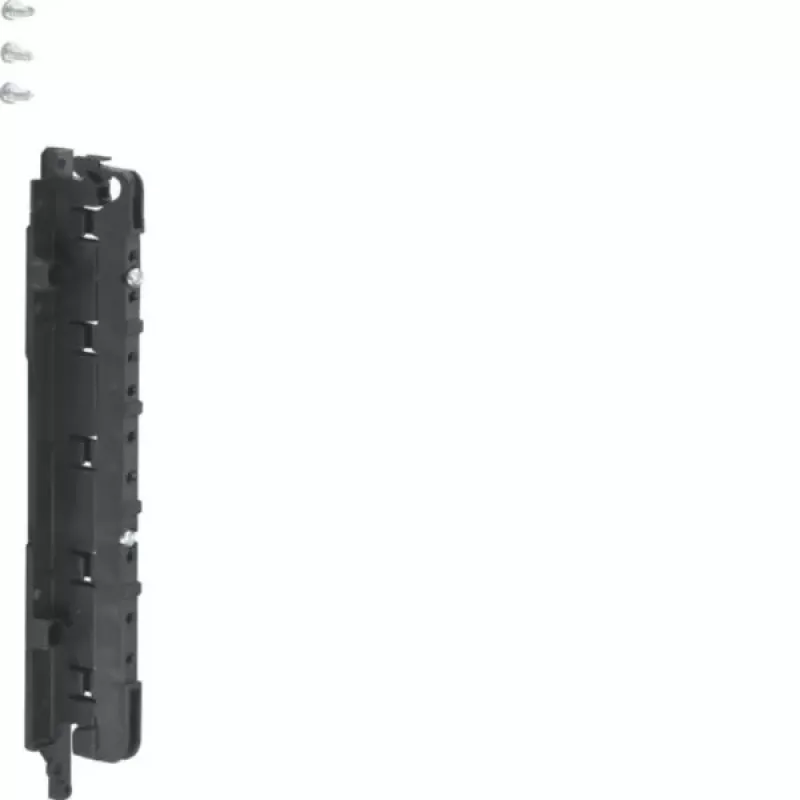

Suporte de barramento esquerdo HAGER UZ45S3, 5 polos, 355A, passo 45 mm, cinzento

Busbar support for left-side mounting in PrismaSeT G distribution boards, engineered to securely hold 5-pole horizontal busbars with a 45 mm pitch and rated current up to 355 A. Its glass fibre reinforced polyamide construction provides high mechanical strength and electrical insulation, ensuring reliable performance in low-voltage switchgear assemblies.

Advantages

• Robust glass fibre reinforced polyamide material for long-term durability
• Precise 45 mm busbar pitch for standard PrismaSeT G configurations
• Supports high current loads up to 355 A, suitable for demanding installations
• Complies with IEC 61439-1 and IEC 61439-2 standards

Suitable for

• PrismaSeT G enclosures requiring left-side horizontal busbar support
• Low-voltage distribution systems up to 690 V AC
• Industrial and commercial electrical panels

Key specifications

• Product type: Busbar support
• Mounting location: Left
• Number of poles: 5P
• Rated current: 355 A
• Busbar pitch: 45 mm
• Material: Glass fibre reinforced polyamide
• Colour: Grey (RAL 7035)

Recommendations

For reliable and compliant busbar installation in PrismaSeT G systems, this support offers the necessary mechanical stability and insulation. Verify compatibility with your specific enclosure layout before installation.
