Suporte de montagem em mastro DAHUA PFA152-E-B para mastros de câmaras de vigilância, construção metálica resistente às intempéries

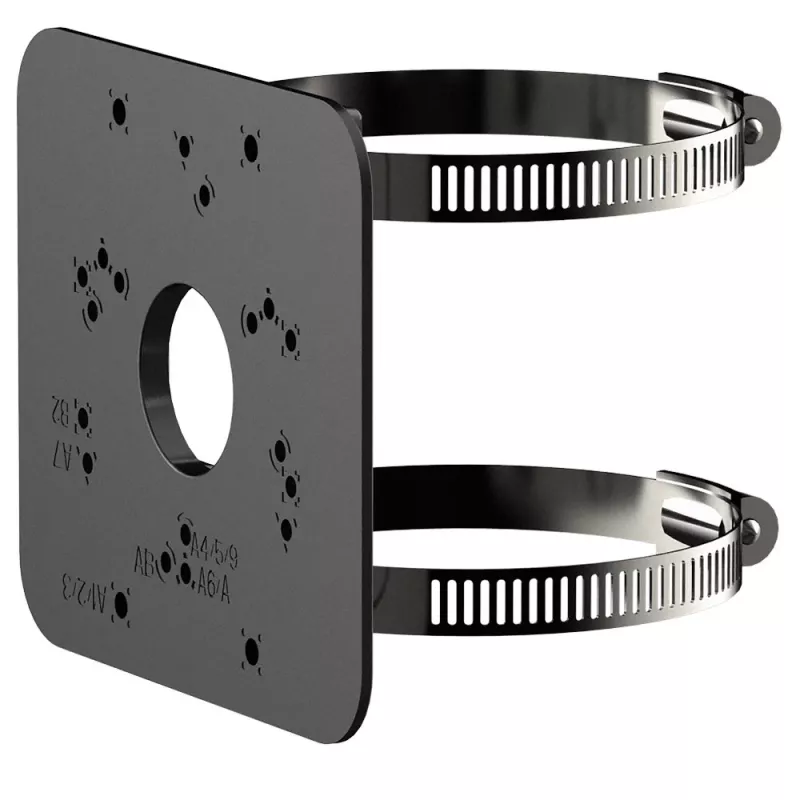

DAHUA PFA152-E-B pole mount bracket is a weather-resistant metal accessory for attaching CCTV cameras to round or square poles. Made of aluminum with SUS304 stainless steel components and finished in black, the bracket provides a neat, integrated mounting solution for outdoor surveillance installations and is compatible with many Dahua camera housings and standard mounts.

Advantages

The bracket combines aluminum and SUS304 stainless steel for corrosion resistance and durability. Its compact dimensions and integrated design allow neat installation on poles with diameters from 80 to 150 mm. Rated for an operating temperature range of -40°C to +60°C and humidity below 90% RH, it supports a load bearing of up to 3.0 kg while weighing 0.27 kg, simplifying handling and fitting.

Suitable for

• Mounting Dahua CCTV cameras and compatible housings on round or square poles
• Outdoor surveillance installations exposed to variable weather conditions
• Low- to medium-weight camera assemblies up to 3.0 kg

Key specifications

• Material: Aluminum and SUS304 stainless steel
• Dimensions: 125.6 mm x 114 mm x 20 mm
• Mast (pole) diameter compatibility: 80–150 mm
• Operating temperature: -40°C to +60°C
• Humidity: <90% RH
• Load bearing: 3.0 kg
• Weight: 0.27 kg
• Color: Black

How to use

Position the PFA152-E-B bracket around the pole within the supported diameter range, align the mounting holes with the camera housing or adapter, and secure using appropriate fasteners. Ensure the camera assembly does not exceed the 3.0 kg load limit. After tightening all fixings, adjust the camera orientation as required and verify stability and cable routing before finalizing the installation.

Recommendations

For reliable long-term performance, install the bracket on poles with diameters between 80 mm and 150 mm, use corrosion-resistant fasteners, and periodically check fixings and seals in harsh outdoor environments.
