Suporte de teto plano e inclinado InLine para TFT / LED / Plasma 32-55 polegadas até 50 kg

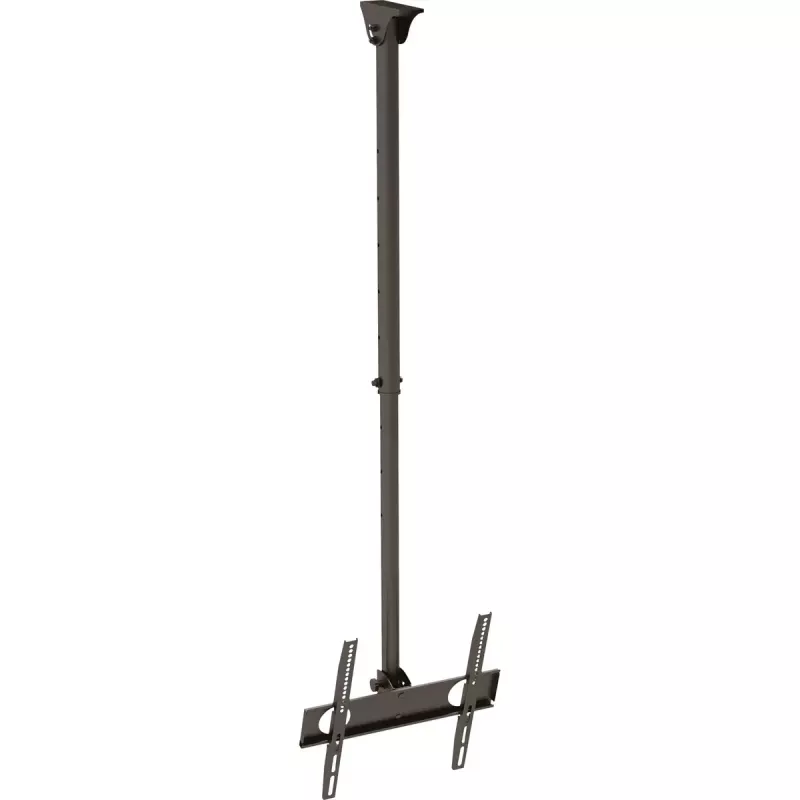

The InLine Flat & Bevel Roof Bracket InLine 23149A is a ceiling-mounted support designed for TFT, LED and Plasma screens with diagonal sizes from 32" up to 55" and a maximum load of 50 kg. It accepts VESA mounting patterns up to 400 x 400 mm and provides a tilt adjustment range from -15° to 0°, enabling downward angling for improved viewing. The bracket is finished in black and intended for overhead installation where a compact, low-profile roof mounting is needed.

Advantages

The bracket supports a variety of flat-panel displays and accommodates common VESA patterns up to 400 x 400 mm, simplifying compatibility with many 32"–55" screens. Its -15° to 0° tilt range allows for precise vertical adjustment to reduce glare and align the viewing angle. With a rated maximum weight capacity of 50 kg, the mount is suitable for heavier screens in its size class while the black finish provides a neutral appearance that integrates with most interiors. The design focuses on stable overhead attachment and secure screen fixation.

Suitable for

• Ceiling or roof mounting of 32"–55" TFT, LED and Plasma displays
• Situations requiring modest downward tilt to improve sightlines
• Public spaces, retail areas, meeting rooms and reception zones
• Environments where a compact, low-profile roof bracket is preferred

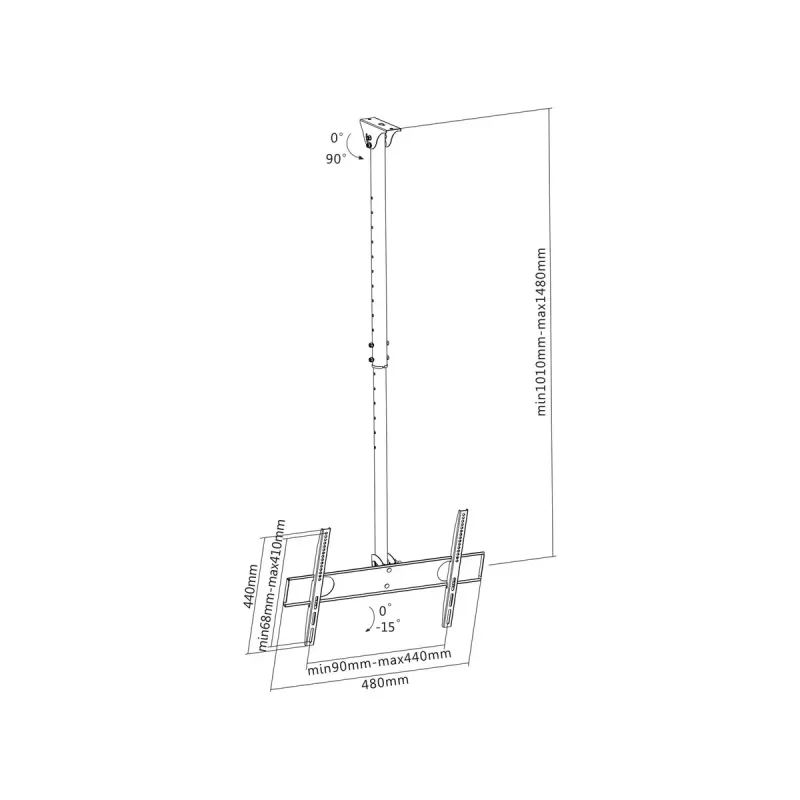

Key specifications

• Maximum screen diagonal: 32"–55"
• Maximum weight capacity: 50 kg

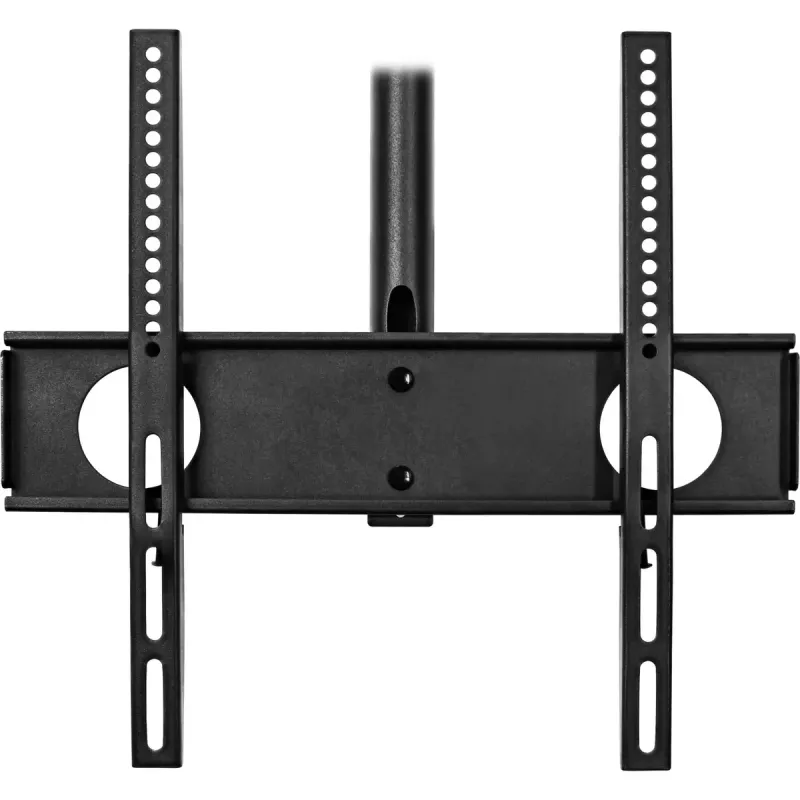

• Maximum supported VESA: 400 x 400 mm

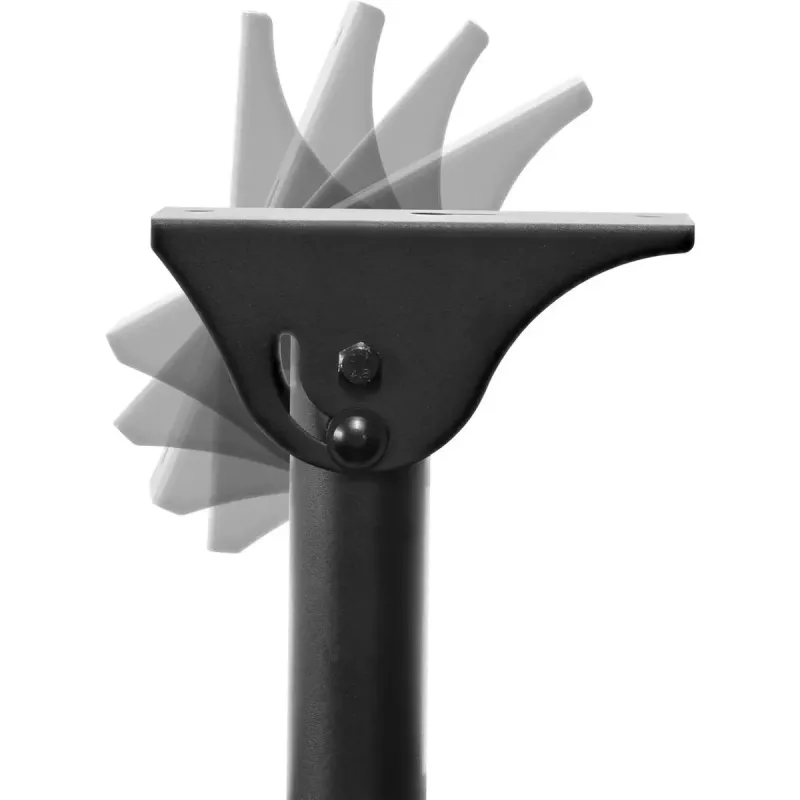

• Tilt adjustment: -15° to 0°
• Finish: black

How to use

Install the InLine roof bracket by securing the mounting plate to a suitably rated ceiling structure using appropriate fasteners for the substrate. Attach the display to the bracket using the compatible VESA holes up to 400 x 400 mm, ensuring that the screen weight does not exceed 50 kg. Adjust the tilt within the -15° to 0° range to achieve the desired viewing angle and tighten all fasteners to lock the position. Follow the display manufacturer’s instructions for safe attachment and, if necessary, enlist a second person to hold the screen during mounting.

Recommendations

Verify the ceiling or roof construction can safely carry the combined load of the bracket and display; use appropriate anchors or structural fixings. Confirm VESA compatibility before mounting and always follow safety and electrical guidelines for installation near power sources.
