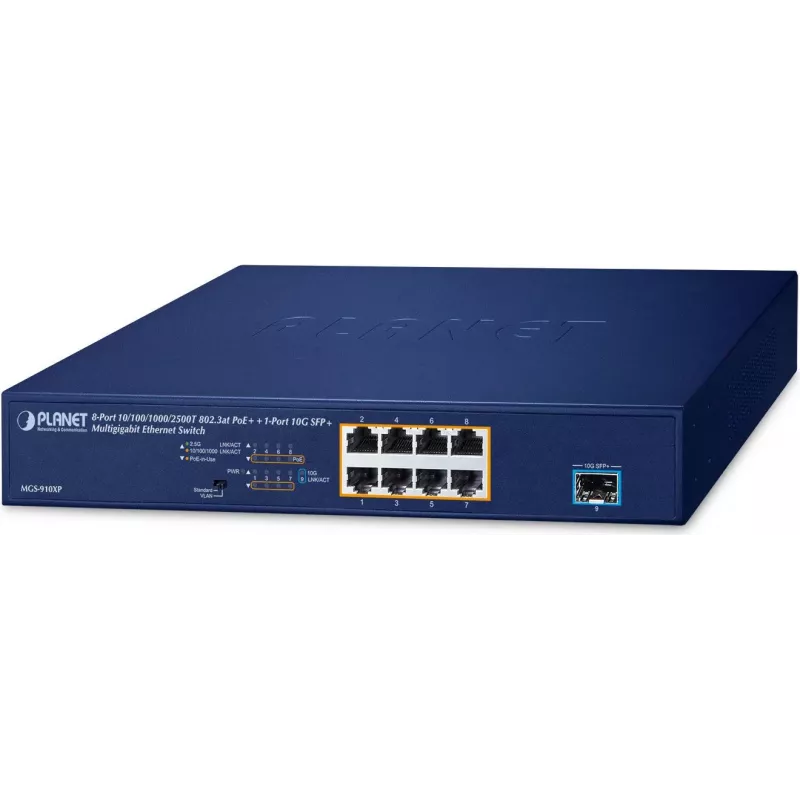

Switch não gerido PLANET MGS-910XP 2.5G Ethernet 8 portas PoE

The PLANET MGS-910XP is an unmanaged 2.5Gbps PoE+ switch with eight 10/100/1000/2500BASE-TRJ45 ports and one 10GBASE-X SFP+ uplink. Designed for environments that require higher-than-gigabit access for devices such as 802.11ax/802.11ac wireless access points, VoIP phones, and IP cameras, the MGS-910XP combines multigigabit data rates and 802.3at PoE+ power delivery over UTP cabling to simplify deployment and improve network performance.

Advantages

The switch delivers 2.5Gbps access on copper ports while maintaining compatibility with existing Cat5e/Cat6 cabling, reducing upgrade cost. Eight ports support 32-watt 802.3at PoE+ to power a variety of network devices and a single 10G SFP+ port provides high-speed uplink or fiber extension. Unmanaged plug-and-play operation with auto-negotiation and auto-MDI/MDI-X reduces configuration effort and accelerates installation.

Suitable for

• High-speed wireless AP deployments (802.11ax / 802.11ac Wave 2)
• PoE IP surveillance systems with multiple cameras
• Small office or branch networks requiring multigigabit access
• VoIP phones and other powered network devices

Key specifications

• Switch type: Unmanaged
• Ports: 8 × 10/100/1000/2500BASE-T RJ45 (auto-negotiation)
• Uplink: 1 × 10GBASE-X SFP+
• PoE: 8 ports with 802.3at PoE+ (32 W per port)
• Switching capacity: 60 Gbit/s
• MAC address table: 4000 entries
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3bz, 802.3x
• Product colour: Blue
• Weight: 1.739 kg

How to use

Install the MGS-910XP on a stable surface or in a rack with appropriate ventilation. Connect devices to the RJ45 ports using Cat5e/Cat6 cables; the ports will auto-negotiate the optimal speed up to 2.5Gbps. Insert a compatible SFP+ transceiver into the SFP+ slot for fiber uplink or high-speed backbone connection. Power PoE devices directly from the switch ports; the unit will supply 802.3at PoE+ power without additional injectors. The DIP switch allows selection of “Standard” or “VLAN” mode for basic port-based isolation when required.

Recommendations

Use Cat5e or better cabling to achieve 2.5Gbps copper links and select SFP+ transceivers that match required distance and fiber type for the 10G uplink. Choose the VLAN mode when isolating IP camera traffic to prevent multicast or broadcast storms from affecting other ports.
