SYNERGY21 acoplador adaptador de fibra ótica LC/LC duplex multimodo 50/125µm OM2 bege manga cerâmica PVC

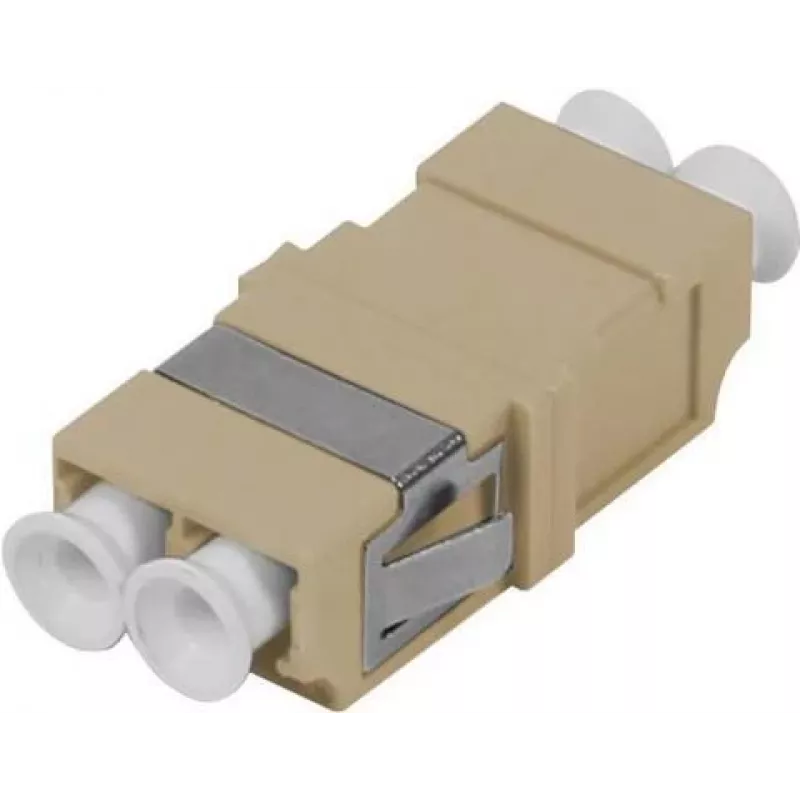

The SYNERGY21 S215480 is a high-quality LC/LC duplex multimode fiber optic adapter (coupler) designed for reliable connections in fiber optic networks. Featuring zirconia ceramic alignment sleeves and a durable PVC housing in beige, this adapter ensures low insertion loss and high return loss for OM2 multimode fibers (50/125µm). Ideal for use in patch panels, ODFs, and network cabinets.

Advantages

Precision-engineered ceramic sleeves provide accurate fiber alignment, minimizing signal loss. The snap-in mounting design allows for easy installation in panels and enclosures. Compliant with RoHS and REACH standards, ensuring environmental safety.

Suitable for

• Fiber optic network installations
• Patch panels and optical distribution frames (ODFs)
• Data centers and telecommunications rooms
• Multimode fiber connections (OM2, 50/125µm)

Key specifications

• Connector Type: LC Female to LC Female
• Fiber Mode: Multimode (50/125µm OM2)
• Configuration: Duplex (2 channels)
• Sleeve Material: Zirconia Ceramic
• Housing Material: PVC, Beige
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Durability: 500 mating cycles
• Operating Temperature: -20°C to +70°C
• Flammability Rating: UL94 V-0

Recommendations

For optimal performance, use with LC patch cables of matching fiber type (OM2/OM3). Ensure clean connectors before mating.
