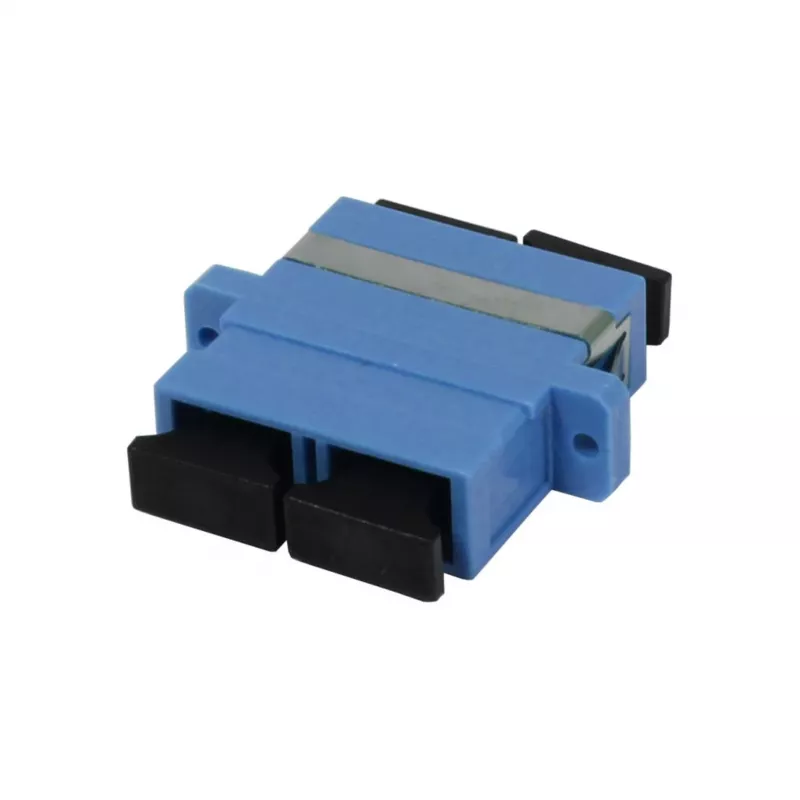

SYNERGY21 Acoplador de Fibra Ótica SC Fêmea para SC Fêmea 9/125µm Monomodo Duplex PVC OS2 Manga Cerâmica

The SYNERGY21 Fibre Optic Coupler is a high-quality SC duplex adapter designed for singlemode OS2 fibre networks. It features ceramic alignment sleeves for precise fibre alignment and low insertion loss, ensuring reliable performance in data centres, telecommunications, and LAN installations.

Advantages

This coupler provides a secure and stable connection between two SC patch cables, minimising signal loss and maximising network efficiency. The durable PVC housing and ceramic ferrule guarantee long-term reliability and over 1000 mating cycles.

Suitable for

• Connecting SC-terminated fibre optic cables in patch panels
• Extending fibre links in singlemode OS2 networks
• Data centre and telecommunications infrastructure
• FTTx and campus backbone applications

Key specifications

• Adapter Type: Fibre Optic Coupler
• Connector Type A: SC Female
• Connector Type B: SC Female
• Fiber Mode: Singlemode
• Fiber Standard: OS2 (ITU-T G.652.D)
• Fiber Core/Cladding: 9/125 µm
• Configuration: Duplex
• Ferrule Material: Ceramic
• Housing Material: PVC
• Colour: Blue
• Mounting Type: Panel Mount (Flanged)
• Insertion Loss: < 0.2 dB
• Return Loss: > 50 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Durability: > 1000 Mating Cycles
• Compliance: RoHS, TIA/EIA-568-C.3

Recommendations

For optimal performance, pair with SYNERGY21 SC simplex or duplex patch cables. Ensure clean fibre ends before mating to maintain low insertion loss.
