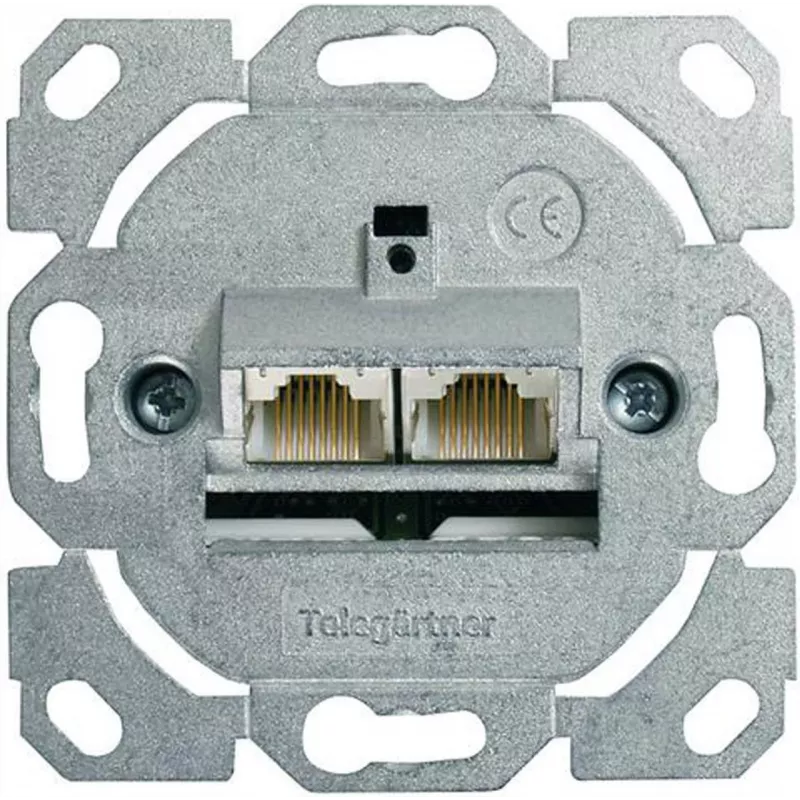

Telegärtner AMJ45 8/8 UP/0 Tomada de rede RJ45 de encastrar, 2 módulos, Cat.6A, blindada, Branco puro J00020A0388

For installations where a clean, flush finish and dependable high-frequency performance are non-negotiable, the Telegärtner AMJ45 8/8 UP/0 stands apart from generic RJ45 outlets. This under-putz (flush-mount) module delivers two fully shielded Cat.6A connections in a single compact frame, engineered to preserve signal integrity up to 500 MHz. Unlike many dual-port solutions that compromise on crosstalk or termination ease, the AMJ45 combines die-cast zinc shielding, tool-less IDC termination, and universal T568A/B wiring in a design that installers can trust for years of service.

Highlights

• Dual RJ45 ports, each 8P8C, supporting 10GBASE-T up to 500 MHz (Class EA)
• Full metallic shielding with die-cast zinc housing for superior alien crosstalk suppression
• Tool-less LSA-compatible IDC terminals accept solid (AWG 24/1–22/1) and stranded (AWG 26/7–22/7) conductors
• Universal T568A/T568B colour code – no special tools or re-termination needed
• Flush-mount (Unterputz) design for standard European wall boxes, straight 0° outlet orientation
• PoE ready up to 4PPoE (IEEE 802.3af/at/bt) without performance degradation
• Pure white (RAL 9010) finish blends with any décor; robust >750 insertion cycles

In daily use

Whether you are wiring a new office floor, retrofitting a conference room, or upgrading a home network to 10G, this outlet simplifies the job. The tool-less IDC blocks let you punch down each wire by hand – no punch-down tool required – and the clear colour coding minimises errors. Once installed, the flush cover sits nearly seamless with the wall, protecting the jacks from dust and accidental damage. Because the module is fully shielded and rated for Cat.6A, you can run high-power PoE devices (pan-tilt cameras, Wi-Fi 6 access points, LED lighting) without worrying about heat or signal loss. The straight outlet orientation keeps patch cords exiting cleanly, reducing strain and clutter.

Full specifications

• Brand: Telegärtner
• Model: AMJ45 8/8 UP/0
• MPN: J00020A0388
• EAN: 4018359262211
• Connector type: RJ45 female (jack)
• Number of ports: 2
• Category: Cat.6A (ISO/IEC 11801 Class EA)
• Shielding: Shielded (STP), die-cast zinc module housing
• Mounting type: Flush-mount (Unterputz)
• Contact configuration: 8P8C
• Transmission performance: Up to 500 MHz
• Wiring scheme: T568A / T568B (universal)
• Termination type: Tool-less IDC (LSA-compatible)
• PoE compatibility: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Housing material: Die-cast zinc (module), plastic (frame/cover)
• Colour: Pure White (RAL 9010)
• Design: Straight outlet (0-degree angle)
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Insertion cycles: > 750
• Wire gauge (solid): AWG 24/1 to AWG 22/1
• Wire gauge (stranded): AWG 26/7 to AWG 22/7
• Operating temperature: -40 °C to +70 °C

Final note

When only a certified, installer-friendly Cat.6A outlet will do, the Telegärtner AMJ45 8/8 UP/0 delivers the shielding, durability, and ease of termination that professionals expect from a German-engineered network component.
