Telegärtner BNC ficha reta HDTV crimp 75 Ohm G27 (1,0/4,6) conector coaxial J01002A0056

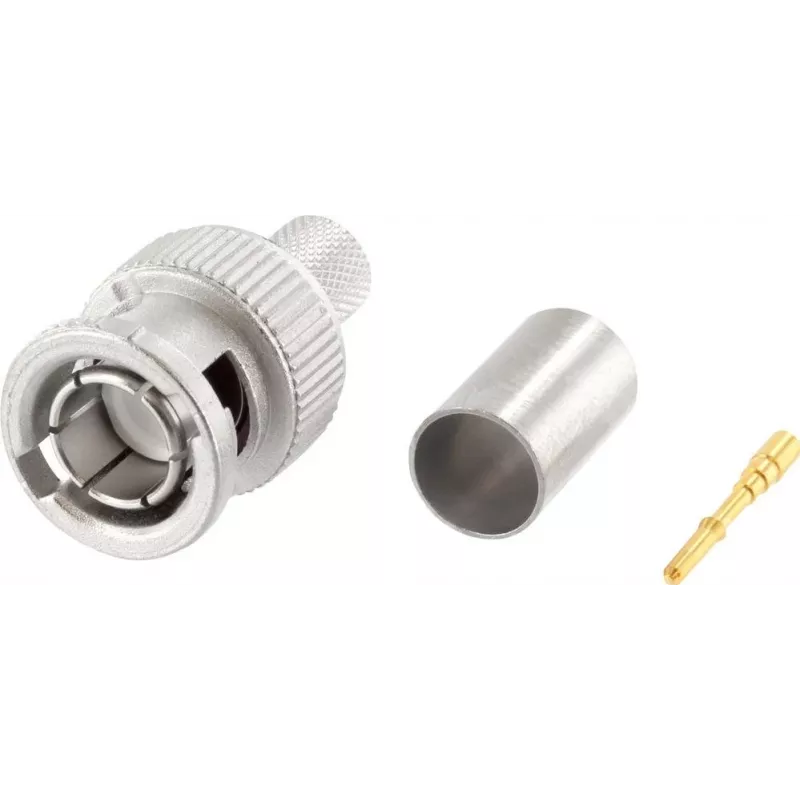

For broadcast engineers and AV technicians terminating 75-ohm coaxial cable in HDTV and video installations, this BNC straight plug provides a reliable crimp connection for cable group G27 with inner conductor diameter 1.0 mm and dielectric diameter 4.6 mm. The gold-plated inner contact and nickel-plated brass body ensure consistent signal integrity across the DC to 3 GHz frequency range.

Key specifications

• Connector type: BNC plug, male, straight
• Impedance: 75 Ohm
• Termination: Crimp
• Cable compatibility: Group G27 (inner conductor 1.0 mm, dielectric 4.6 mm)
• Frequency range: DC - 3 GHz
• Return loss: ≥ 26 dB (DC-1 GHz), ≥ 20 dB (1-3 GHz)
• Body material: Brass, nickel-plated
• Inner contact: Gold-plated
• Dielectric: PTFE
• Operating temperature: -40°C to +85°C
• Voltage rating: 500 V RMS
• Mating cycles: ≥ 500

Why choose it

The precision-machined components and PTFE dielectric provide low signal loss and high return loss, making this connector suitable for demanding broadcast and HDTV applications where signal quality is critical.

Ideal use cases

• HDTV distribution systems
• Broadcast studio wiring
• Video patch panels
• Satellite and cable TV headends

Good to know

The crimp termination requires appropriate crimp tools for the specified cable dimensions. The connector is designed for repeated mating cycles, ensuring long-term reliability in professional installations.
