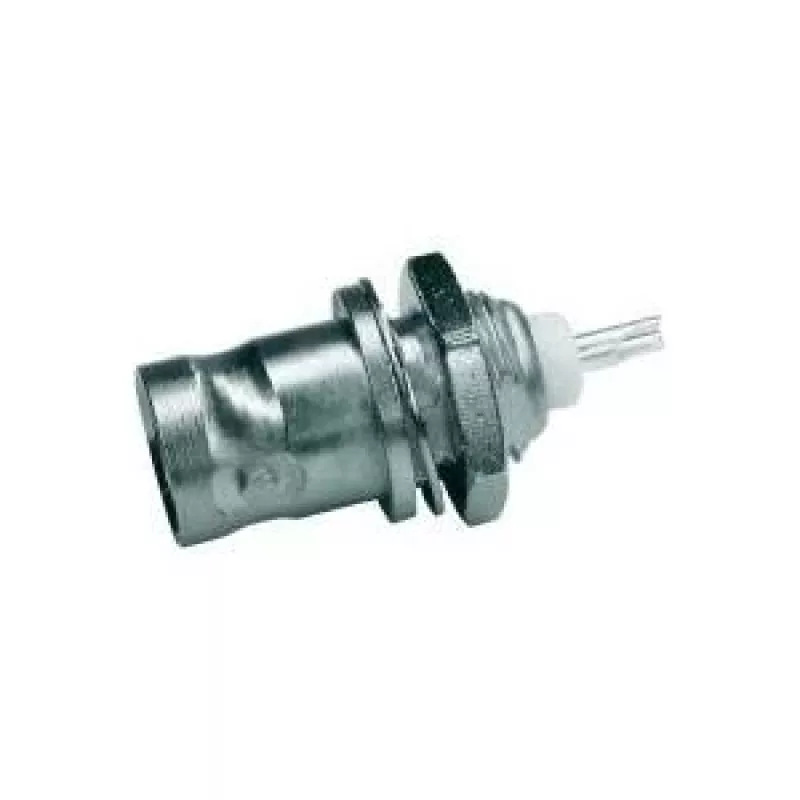

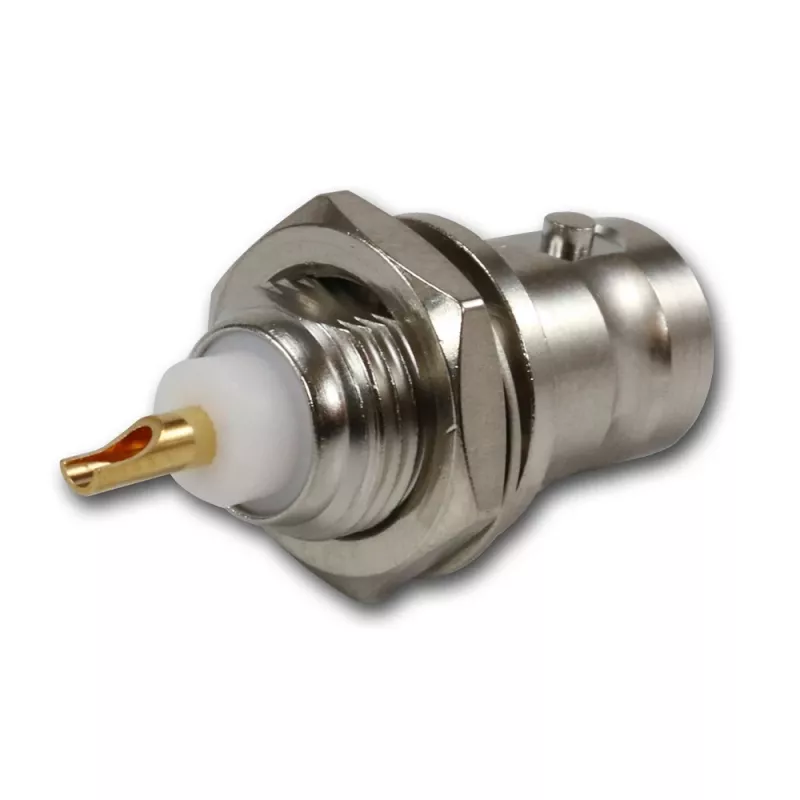

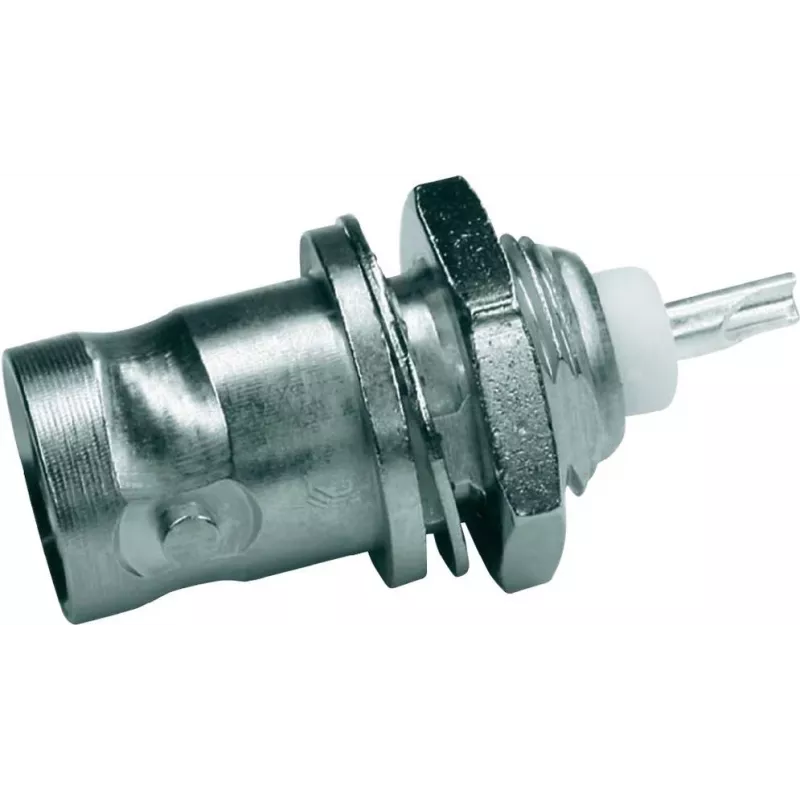

Telegärtner Conector fêmea BNC de embutir 50 Ohm, condutor interior dourado, flange de 4 furos, ligação por soldadura (J01001A0053Z)

With a frequency range extending to 4 GHz and a VSWR of ≤ 1.3 at 2 GHz, this BNC panel mount jack is built for high-frequency signal integrity. The 50 Ohm impedance and gold-plated inner conductor ensure reliable connections in demanding RF applications.

Overview

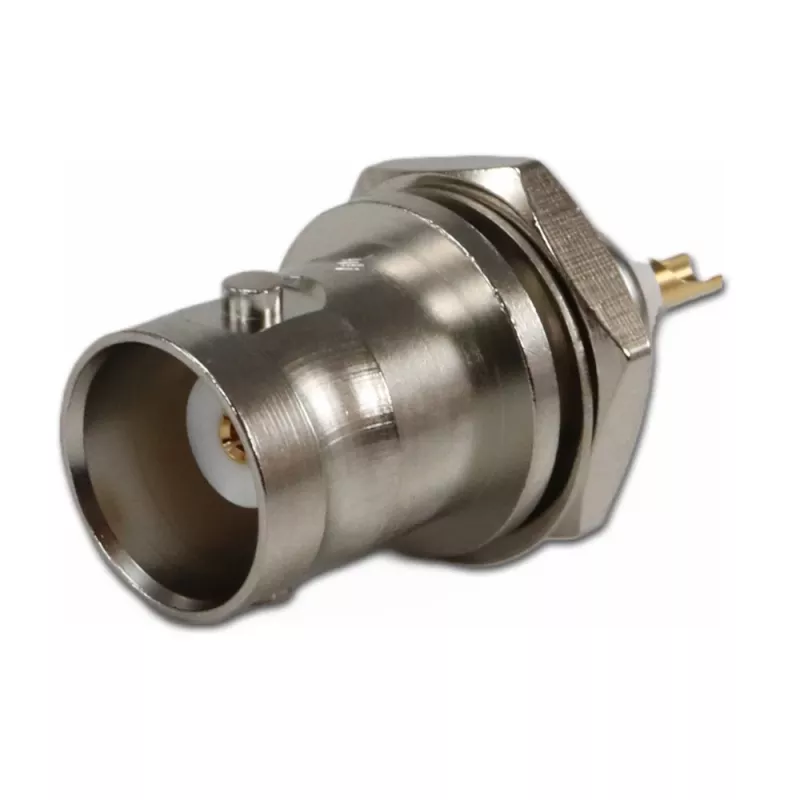

The Telegärtner J01001A0053Z is a BNC female connector designed for panel mounting via a 4-hole flange. It features solder termination for both inner and outer conductors, allowing secure and permanent connections. The inner conductor is gold-plated for excellent conductivity and corrosion resistance, while the outer conductor has a nickel plating. The dielectric is made of PTFE, known for its low loss and high temperature stability.

What stands out

• Wide frequency range: DC to 4 GHz
• Low VSWR: ≤ 1.3 at 2 GHz
• Gold-plated inner conductor for superior signal transmission
• Robust panel mount design with 4-hole flange
• High insulation resistance: ≥ 5 GΩ
• Wide operating temperature range: -55 °C to +155 °C

Technical details

• Connector Series: BNC
• Impedance: 50 Ohm
• Gender: Jack (Female)
• Mounting Type: Panel Mount (4-hole flange)
• Termination Style: Solder (Inner & Outer Conductor)
• Inner Conductor Plating: Gold
• Outer Conductor Plating: Nickel
• Inner Conductor Material: Brass
• Outer Conductor Material: Brass
• Dielectric Material: PTFE
• Frequency Range: DC to 4 GHz
• VSWR: ≤ 1.3 at 2 GHz
• Insulation Resistance: ≥ 5 GΩ
• Contact Resistance (Inner): ≤ 1.5 mΩ
• Contact Resistance (Outer): ≤ 1 mΩ
• Voltage Rating: 500 V (RMS)
• Temperature Range: -55 °C to +155 °C
• Mating Cycles: ≥ 500
• Standard Compliance: IEC 60169-8
• Max. Panel Thickness: 3.2 mm

Our verdict

A high-performance BNC jack for professional RF installations where reliability and low signal loss are critical.
