Telegärtner Conector fêmea FME de crimpar para cabo LMR-240, 50 Ohm, DC-3 GHz, latão niquelado, contacto dourado J01701A0003Z

Engineered for reliable RF connectivity up to 3 GHz, this Telegärtner FME jack connector features a crimp termination for LMR-240 cable and a 50 Ohm impedance, ensuring minimal signal loss in mobile and fixed installations.

Overview

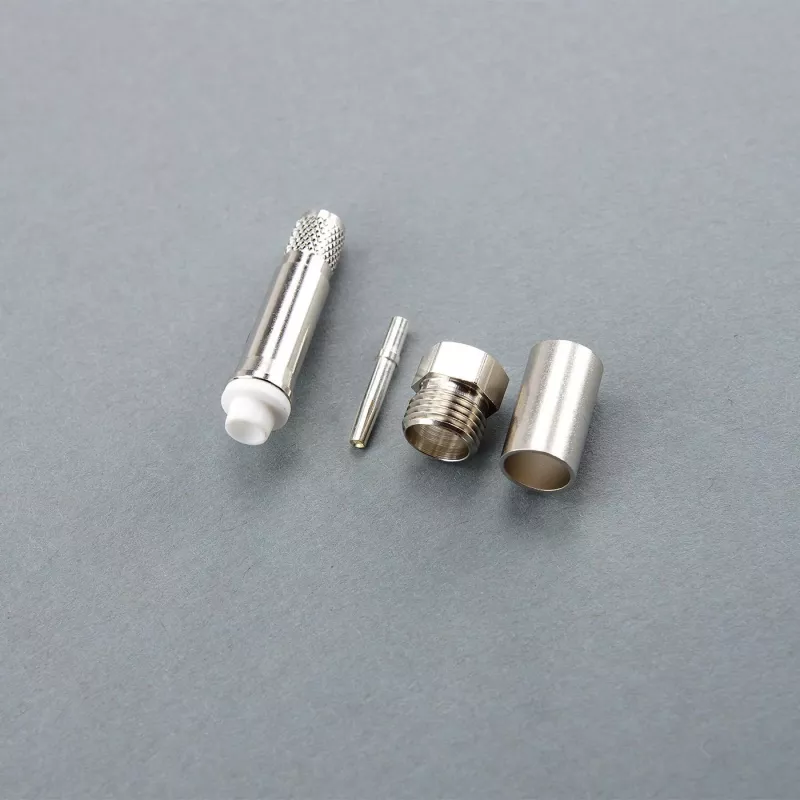

The Telegärtner FME jack is a female connector designed for crimp attachment to LMR-240 coaxial cable, part of the G30 (1.5/3.8) cable group. Its nickel-plated brass body and gold-plated center contact provide corrosion resistance and dependable performance across a wide temperature range from -40°C to +85°C.

What stands out

• Wide frequency range: DC to 3 GHz with VSWR ≤1.3 at 2.5 GHz for clean signal transmission.
• Durable construction: brass body with nickel plating and gold-plated contact for long mating life (≥500 cycles).
• Precision fit: accepts LMR-240 cable with dielectric diameters of 1.5 mm inner and 3.8 mm outer.
• RoHS compliant, suitable for modern equipment requirements.

Technical details

• Connector type: FME jack (female)
• Termination: crimp
• Cable compatibility: LMR-240
• Impedance: 50 Ohm
• Frequency range: DC - 3 GHz
• Body material: brass, nickel-plated
• Contact material: brass, gold-plated
• Insulation: PTFE
• Operating temperature: -40°C to +85°C
• Mating cycles: ≥500
• Mounting type: cable mount

Our verdict

A high-quality FME connector for LMR-240 cable, delivering stable RF performance up to 3 GHz with robust construction for demanding environments.
