Conector coaxial DeLOCK 89749

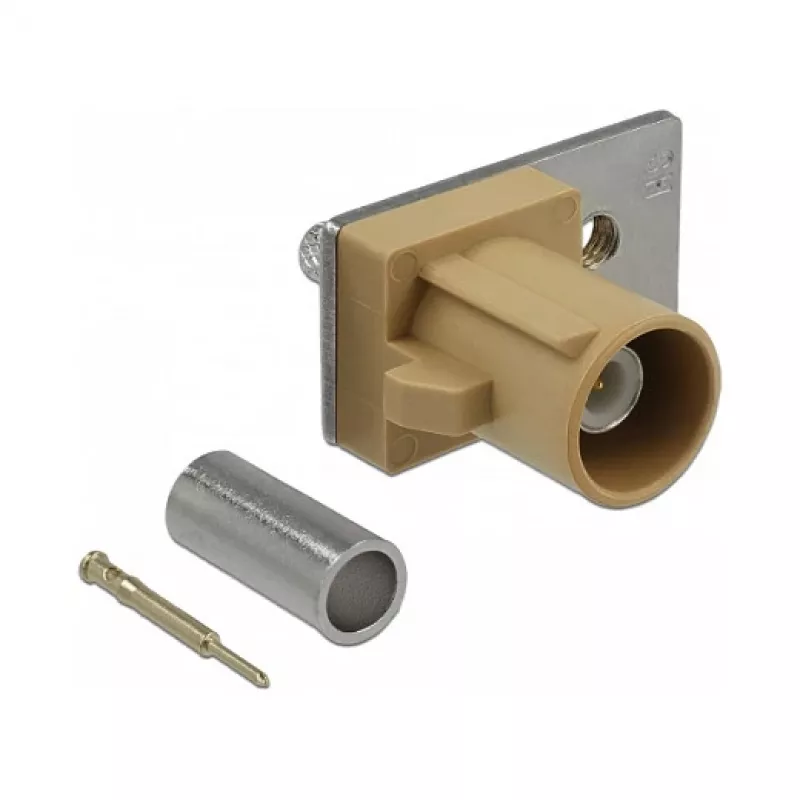

The DeLOCK 89749 coaxial connector is a compact FAKRA I male plug designed for radio frequency applications. It has gold-plated contacts for improved signal transmission and corrosion resistance, and a compact form factor with dimensions of 17.8 mm (width) × 19.5 mm (depth) × 7.5 mm (height). The connector is supplied in a polybag and is intended for automotive and communication equipment where reliable RF connections are required.

Advantages

The FAKRA I male interface provides a standardized mechanical and electrical connection for RF systems. Gold-plated contacts enhance conductivity and reduce the risk of signal loss. Its small dimensions allow easy installation in space-constrained environments. The product color combination (beige and stainless steel) supports identification and compatibility with common automotive connector housings.

Suitable for

Key specifications

How to use

Align the FAKRA I male connector with the corresponding FAKRA female socket and push until the connector seats with the mechanical latch or retention mechanism. Ensure the mating connector is the correct FAKRA keying and colour-coded type to prevent mismating. Use appropriate cable preparation and crimping or soldering methods compatible with the mating cable assembly and follow any vehicle or equipment manufacturer installation guidelines.

Recommendations

Store the connector in a dry environment until installation. Verify compatibility with the mating FAKRA female connector and avoid excessive mechanical stress on the cable assembly to maintain signal integrity.
