Telegärtner Ficha TNC angular de crimpagem 50 Ohm para RG-223/U, RG-142 B/U (J01010A0006)

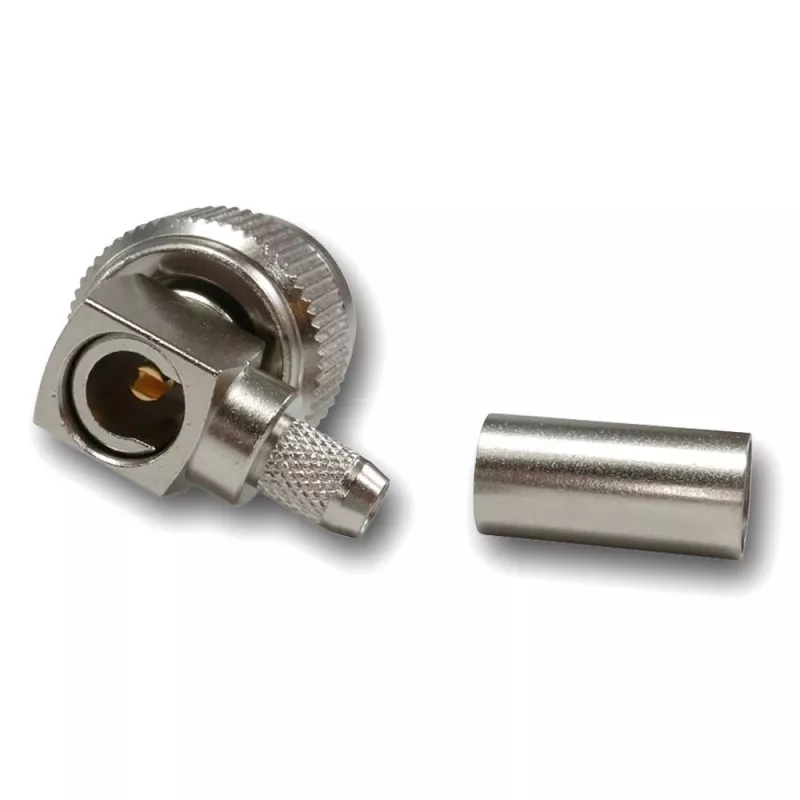

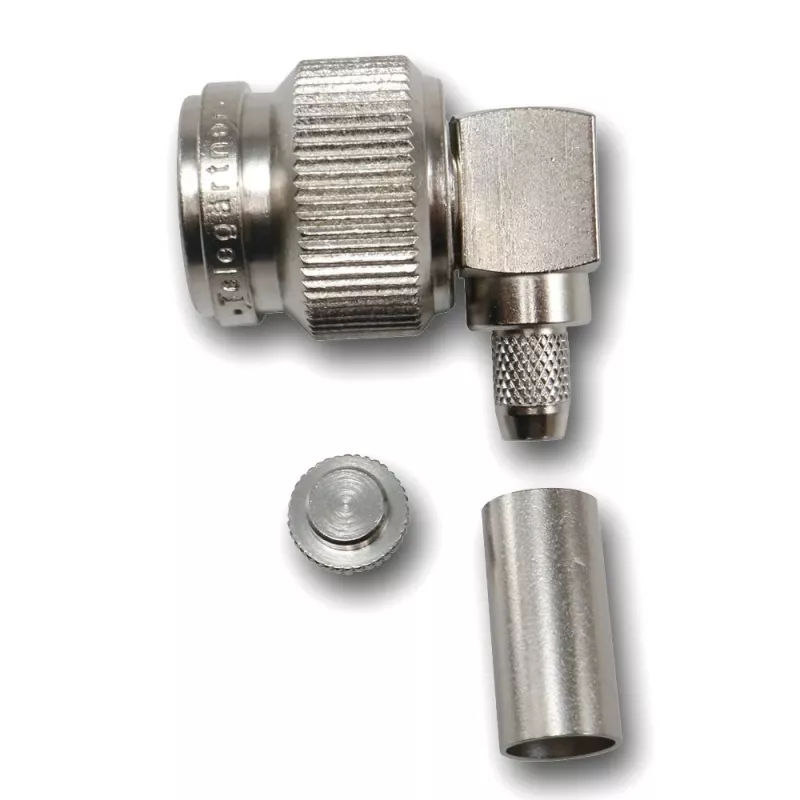

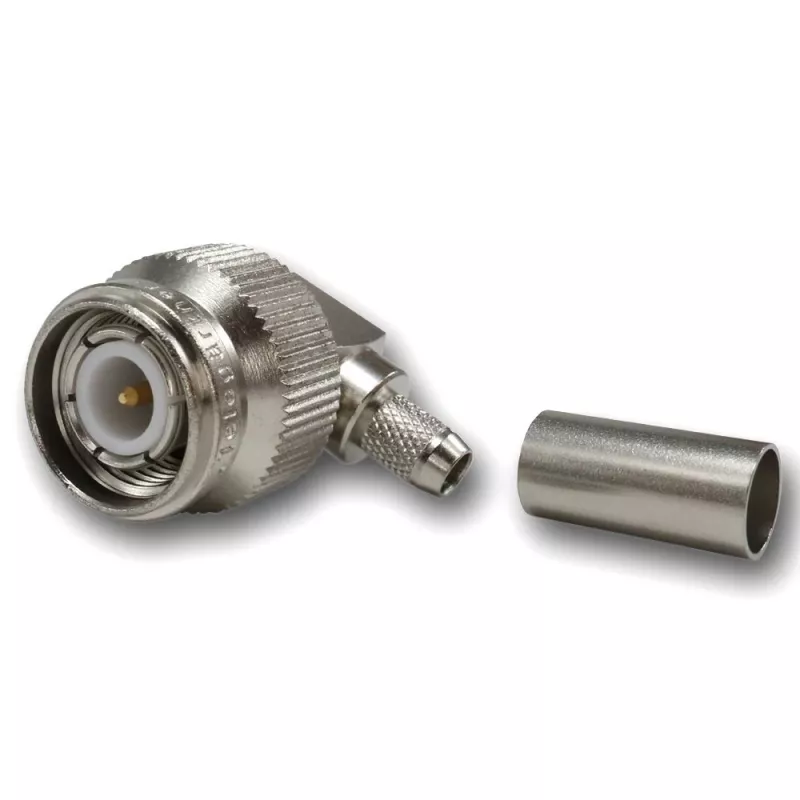

This TNC plug from Telegärtner stands out with its right-angle design, allowing cable connections in tight spaces where a straight connector would not fit. It is built for 50-ohm coaxial cables of type RG-223/U and RG-142 B/U, with a crimp attachment for the outer conductor and a solder or crimp connection for the center contact. The nickel-plated brass body and gold-plated center contact ensure reliable signal transmission.

Highlights

• Right-angle TNC plug (male) for 50-ohm systems
• Compatible with RG-223/U and RG-142 B/U cables
• Crimp outer conductor, solder/crimp center contact
• Nickel-plated brass body, gold-plated center contact
• PTFE insulator for stable performance
• Supplied as single piece

In daily use

When installing coaxial cable in confined equipment racks or behind panels, the right-angle body reduces strain and allows a neat cable exit. The crimp ferrule provides a secure mechanical hold, while the gold-plated center contact resists corrosion and maintains low contact resistance. Suitable for RF applications up to the TNC interface's typical frequency range.

Full specifications

• Connector series: TNC
• Connector type: Plug (male)
• Connector style: Right-angle
• Impedance: 50 Ohm
• Cable attachment (outer conductor): Crimp
• Center contact attachment: Solder / Crimp
• Compatible cable group: G05
• Compatible cable types: RG-223/U, RG-142 B/U
• Max. cable inner conductor diameter: 1.0 mm
• Max. cable dielectric diameter: 2.95 mm
• Body material: Brass
• Body plating: Nickel
• Center contact material: Brass
• Center contact plating: Gold
• Insulator material: PTFE
• Crimp ferrule material: Copper
• Crimp ferrule plating: Nickel
• Mounting type: Cable mount
• Manufacturer series code: A0505

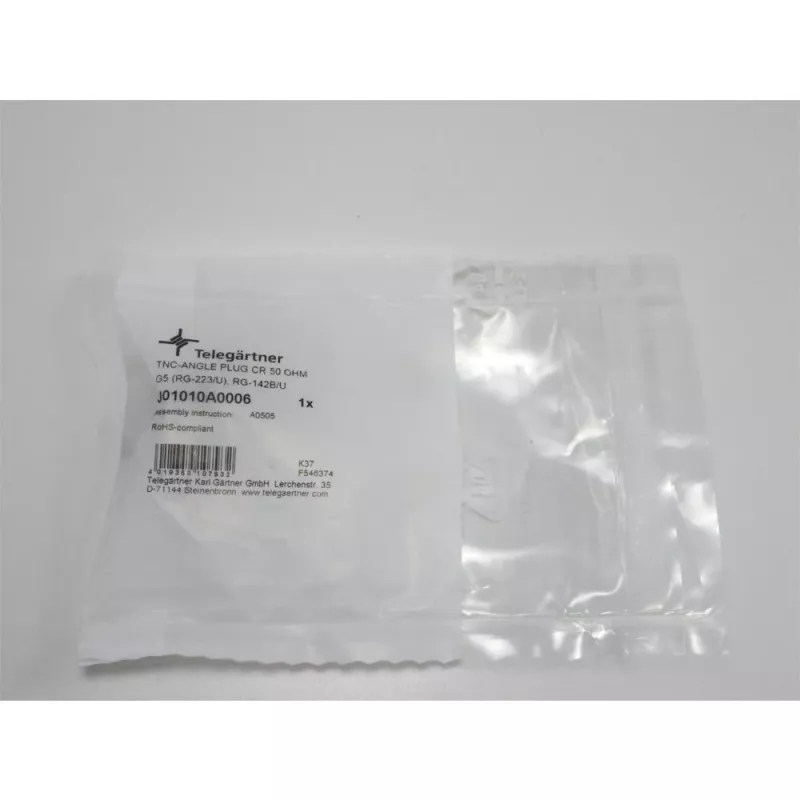

• Packaging quantity: 1 piece

Final note

Precision-made by Telegärtner, a trusted name in RF connectivity, this connector ensures dependable performance for professional installations.
