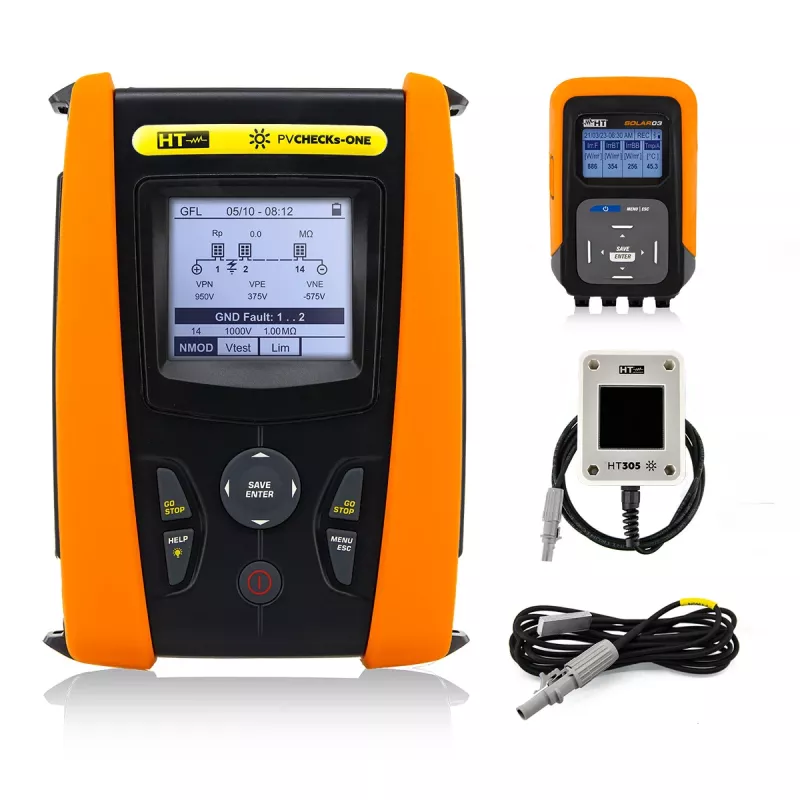

Testador de instalação fotovoltaica HT INSTRUMENTS PV-CHECKS ONEPLUS (1011580)

With a maximum open circuit voltage of 1000V DC and short circuit current up to 15A, the HT INSTRUMENTS PV-CHECKS ONEPLUS is a dedicated photovoltaic installation tester compliant with IEC/EN62446 and VDE 0100/0105. It performs essential safety and performance checks on PV systems, including insulation resistance, continuity of protective conductors, and polarity verification.

Overview

The PV-CHECKS ONEPLUS is designed for commissioning and periodic testing of photovoltaic installations. It measures open circuit voltage (Voc), short circuit current (Isc), insulation resistance (Riso), and continuity of protective conductors (Rpe). The instrument supports insulation test voltages of 250V, 500V, and 1000V DC, with a resistance range from 0.01 MΩ to 200 MΩ. Continuity testing uses a 200mA current and covers 0.01 Ω to 99.9 Ω.

What stands out

• Complies with IEC/EN62446 and VDE 0100/0105 standards for PV system testing.
• Measures up to 1000V DC open circuit voltage and 15A short circuit current.
• Insulation resistance testing at 250V, 500V, and 1000V DC.
• Continuity test with 200mA test current and range up to 99.9 Ω.
• Polarity test to verify correct DC wiring.
• Optional irradiance and temperature measurement with HT304N and PT300N sensors.
• Internal memory for up to 999 measurements.
• USB and Bluetooth connectivity for data transfer.
• Backlit LCD display for clear readings in all lighting conditions.
• Rechargeable Li-ION battery for portable use.
• IP67 protection class for dust and water resistance.
• Compatible with TOPVIEW PC software and HTANALYSIS mobile app.

Technical details

• Measurement Functions: Voc, Isc, Riso, Rpe, Polarity Test
• Max Open Circuit Voltage: 1000V DC
• Max Short Circuit Current: 15A DC
• Insulation Test Voltages: 250V, 500V, 1000V DC
• Insulation Resistance Range: 0.01 MΩ to 200 MΩ
• Continuity Test Current: 200mA
• Continuity Resistance Range: 0.01 Ω to 99.9 Ω
• Irradiance Measurement: Yes (with optional sensor HT304N)
• Temperature Measurement: Yes (with optional sensor PT300N)
• DC Power Measurement: Yes (with optional accessories)
• Data Logging: Internal memory for up to 999 measurements
• Connectivity: USB, Bluetooth
• Display: Backlit LCD
• Power Supply: Rechargeable Li-ION battery
• Safety Rating: CAT III 1000V DC, CAT III 300V AC
• Protection Class: IP67
• PC Software Compatibility: TOPVIEW
• Mobile App Compatibility: HTANALYSIS

Our verdict

The PV-CHECKS ONEPLUS is a comprehensive and robust tester for photovoltaic installations, meeting key industry standards and offering versatile measurement capabilities with convenient data management options.
