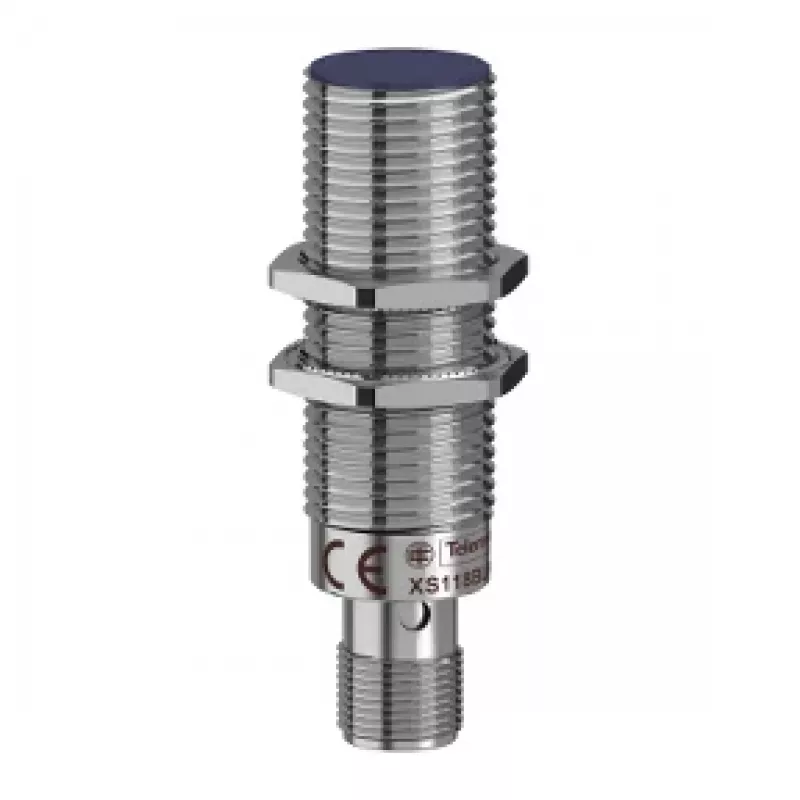

TMSS GERMANY Telemechanique Sensors Sensor de proximidade indutivo XS118BLPAM12 (XS118BLPAM12)

Inductive proximity sensor with cylindrical M18 design and 8 mm sensing distance. Detects metal objects without contact, with PNP normally open output and M12 connector.

Advantages

Flush mountable, nickel plated brass housing, IP67, short-circuit and reverse polarity protection, LED status indicator.

Suitable for

• Industrial automation
• Position sensing
• Metal detection

Key specifications

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Sensor design: Cylindrical M18
• Sensing distance: 8 mm
• Output function: 1 NO
• Output type: PNP
• Wiring technique: 3-wire
• Supply voltage: 10-36 V DC
• Connection type: M12 male connector, 4 pins
• Housing material: Nickel plated brass
• IP protection level: IP67
• Mounting mode: Flush mountable
• Switching frequency: ≤ 1000 Hz
• Current consumption: ≤ 10 mA (no-load)
• Output current: ≤ 200 mA
• Operating temperature: -25 to 70 °C
• Short-circuit protection: Yes
• Reverse polarity protection: Yes
• Status indicator: 1 LED (yellow)

Recommendations

For reliable metal detection in harsh industrial environments, this sensor provides robust performance with easy integration via M12 connector.
