Tomada tipo F DeLOCK 11499 com USB-A e USB-C branco

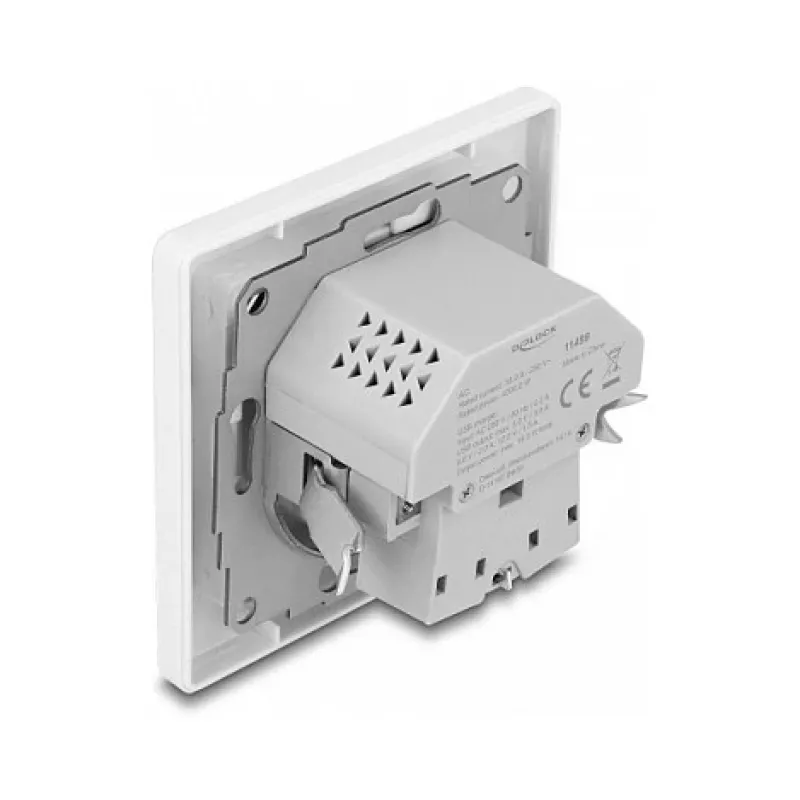

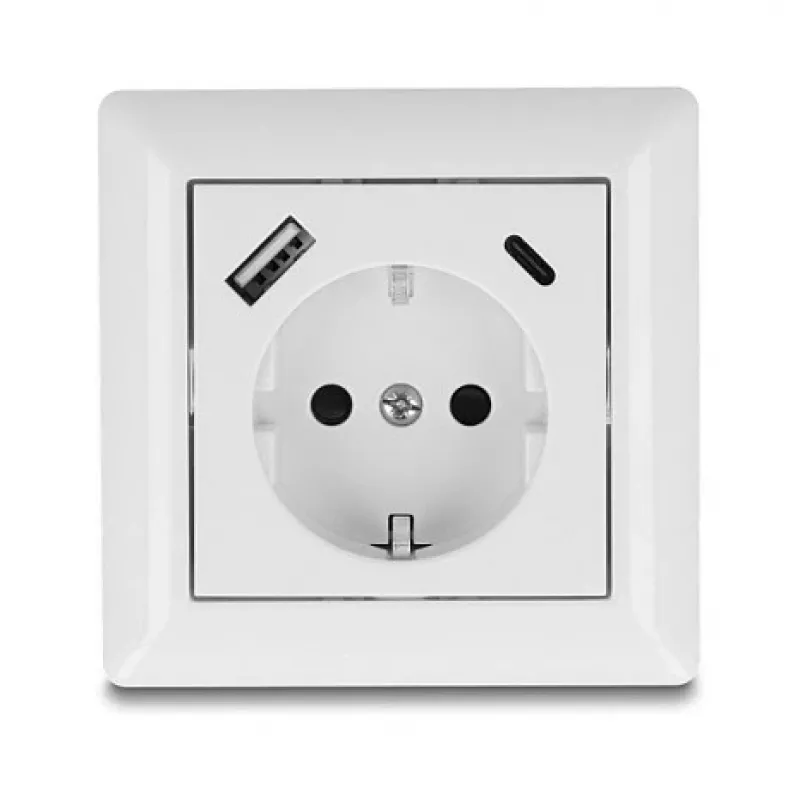

This power socket with side grounding contact from Delock is designed for installation in a standard flush-mounted or cavity installation box. It combines a CEE 7/3 Type F mains socket with a childproof lock and two integrated USB charging ports (USB Type-A and USB Type-C™) so smartphones, tablets and similar devices can be charged while the mains socket remains available. The compact unit measures 80 x 80 x 44 mm and is compatible with frames that have a 55 x 55 mm window size.

Advantages

The DeLOCK 11499 features both USB-A and USB-C charging ports alongside a grounded Type F outlet, enabling simultaneous use of mains-powered devices and USB-charged devices. It supports common fast-charging standards including Power Delivery (PD) 3.0, with the USB ports supplying 5 V, 9 V or 12 V at up to 18 W. The product fits many popular switch series such as Gira, JUNG, Busch-Jaeger and Merten, and its childproof lock increases safety for households with children.

Suitable for

• Homes and apartments for charging smartphones and tablets
• Offices and meeting rooms where convenient device charging is required
• Replacement or upgrade of existing 55 x 55 mm frame electrical fittings

Key specifications

• Model: DeLOCK 11499
• Socket type: CEE 7/3 (Type F) with side grounding contact and childproof lock
• USB ports: 1× USB-A, 1× USB-C™
• USB output: 5 V / 9 V / 12 V, up to 18 W per port (supports PD 3.0)
• Rated voltage: 250 V
• Rated current: 0.2 A
• Dimensions: 80 × 80 × 44 mm
• Compatibility: frame window size 55 × 55 mm (compatible with common switch series)
• Color: White
• Brand: DELOCK, MPN: 11499, EAN: 4043619114993

How to use

Install the socket into a standard flush-mounted or cavity installation box that accepts a 55 × 55 mm frame window. Ensure mains power is switched off before wiring. Connect the protective earth, neutral and live conductors according to local electrical regulations. Once mounted and wired, plug USB cables or mains plugs into the corresponding ports to charge devices. Observe the device’s charging specifications and the maximum output ratings of the USB ports.

Recommendations

For safe operation, installation should be performed by a qualified electrician and local electrical codes must be followed. Use appropriate cables and ensure the total load connected to the mains socket does not exceed the circuit limits. To maximise charging speed, use USB cables that support the chosen fast-charging standard.
