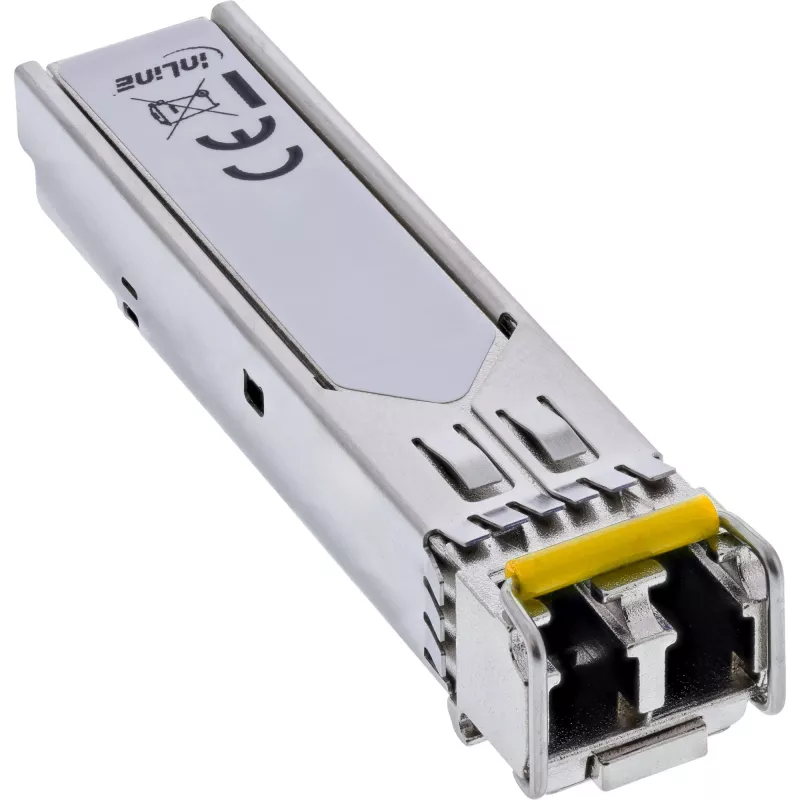

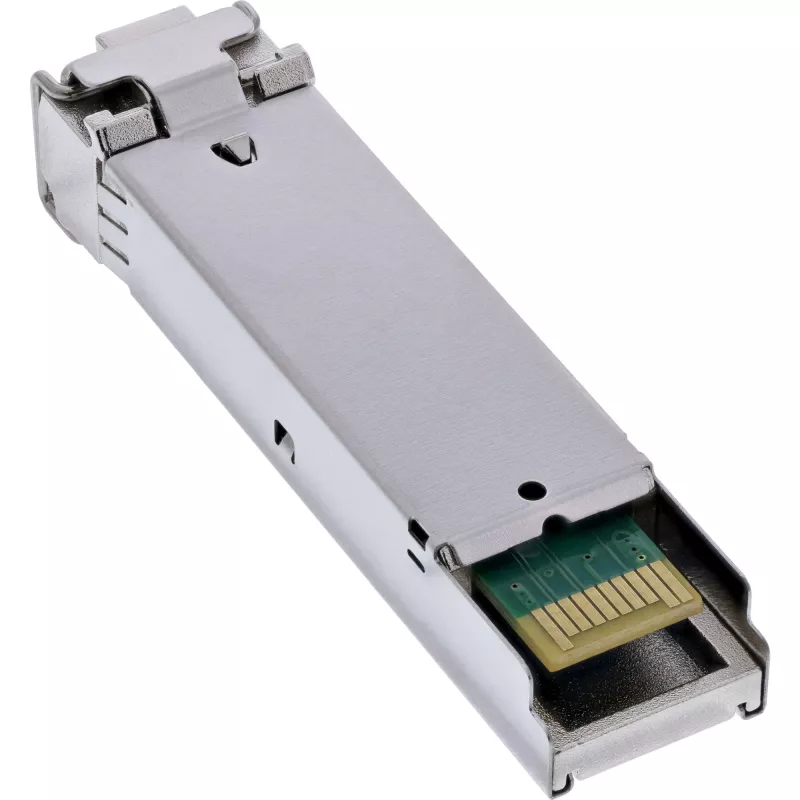

Transceptor ótico SFP InLine 32335G 1550nm Monomodo 120km 1.25Gb/s

Long range for professional long-distance connections:Reliably transmits data over single-mode fibre optic cable at distances of up to 120 km – ideal for wide area networks.
Gigabit performance at 1.25 Gb/s:Provides stable data transmission in the 1000BASE-ZX standard – ideal for cluster and backbone infrastructures.
MSA-compliant for broad compatibility:Supports the SFP MSA standard in accordance with SFF-8472 for smooth integration into many network devices.
Reliable LC duplex connection:The LC connector enables space-saving and secure fibre optic connections in SFP module format.
Hot-plug capable for flexible maintenance:Module can be replaced during operation without system interruption – for maximum availability.

The InLine® SFP Module 32335G is a reliable solution for long-distance connections in professional networks. With a transmission rate of 1.25 Gb/s over single-mode fibre optic links of up to 120 km, it offers ideal conditions for applications where range is a priority – such as in wide area networks, site networking or data centres.
Thanks to the 1550 nm DFB laser and the integrated APD TIA receiver, the module impresses with high optical sensitivity and stable performance. It meets the requirements of IEEE 802.3Z and MSA SFF-8472 and can therefore be seamlessly integrated into common SFP infrastructures.
The LC duplex connection allows for easy connection with minimal space requirements, while hot-swappable capability enables replacement during operation. The robust design allows operation in a temperature range from 0 °C to +70 °C – perfect for professional continuous use.

Form factor: SFP (Small Form Factor Pluggable)
Transmission rate: 1.25 Gb/s
Range: up to 120 km
Transmitter wavelength: 1550 nm DFB
Receiver wavelength: 1260–1620 nm
Connection: LC duplex
Compatibility: MSA SFF-8472, IEEE 802.3Z
Laser class: Class 1, IEC-60825
Extinction ratio: typ. 8.2 dB
Supply voltage: 3.3 V ±5 %
Current consumption: max. 300 mA
Power consumption: max. 1.0 W
Operating temperature: 0 °C to +70 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335G. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V. Compliance certificates: CE, TÜV mark. Width: 57 mm, Depth: 0.18 mm, Height: 13 mm. Package width: 60 mm, Package depth: 90 mm, Package height: 20 mm

How to use

Power down is not required for installation; simply insert the SFP transceiver into a compatible SFP port on the host device until it seats firmly. Ensure the host device supports 1.25 Gb/s SFP modules and configure the network interface as required by your equipment. Use singlemode fiber patch cords and appropriate connectors for the chosen port type. Verify optical power levels and link status after insertion and perform any necessary link configuration on the connected devices.

Recommendations

Install the module in clean conditions and avoid touching the optical connector endface. Use fiber cleaning tools before connecting patch cords. Check the host device compatibility list for supported SFP modules and monitor optical receive power to ensure sufficient link margin for the required distance.
